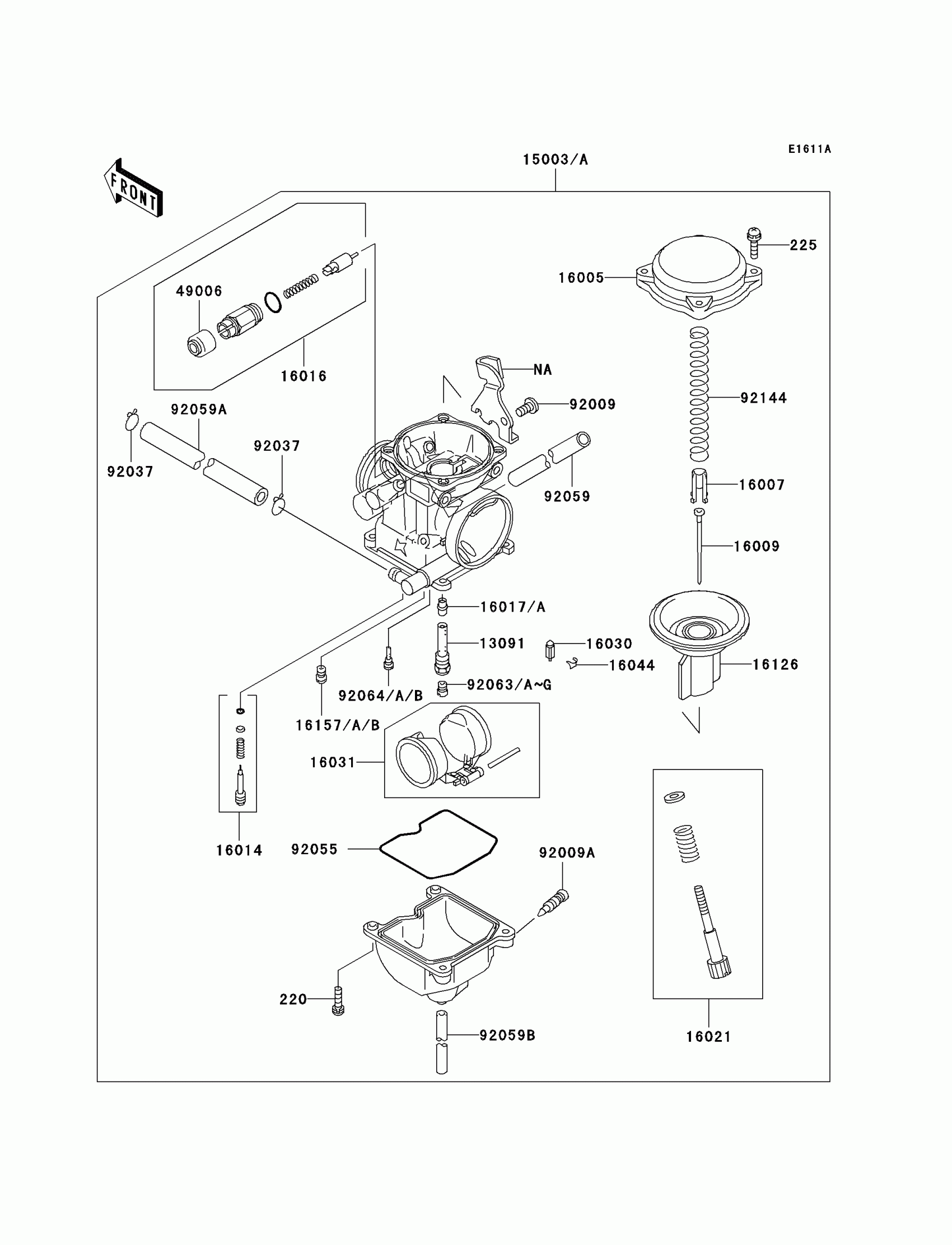

Kawasaki KFX 250 Mojave Carburetor(KSF250-A17/A18) Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1259

Unavailable

16005

TOP-CHAMBER,MIXING,27/60

16005-1057

$46.10

16007

SEAT-SPRING,VALVE

16007-1134

$42.85

16009

NEEDLE-JET,N54C

16009-1333

$36.50

16014

SCREW-PILOT AIR

16014-1080

$17.85

16016

PLUNGER,STARTER

16016-1101

$51.56

16021

SCREW-THROTTLE STOP

16021-1201

$47.83

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1180

$214.40

16157

JET-STARTER,#55

16157-1056

Unavailable

16157A

JET-STARTER,#58

16157-1057

$13.39

16157B

JET-STARTER,#60

16157-1058

$15.17

92009

SCREW,5X10

92009-1365

$5.61

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92037

CLAMP,TUBE

92037-1531

$4.18

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92059

TUBE,6.5X9.5X500

92059-1465

$34.01

92059A

TUBE,6.5X11.5X360

92059-1751

$65.61

92059B

TUBE,3.5X6.5X300

92059-1752

$21.76

92063A

JET-MAIN,#135

92063-1014

$10.71

92063B

JET-MAIN,#138

92063-1015

$10.71

220

SCREW-PAN-CROS,4X14

220D0414

$3.51

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

92064

JET-PILOT,#38

92064-1050

$14.76

92064A

JET-PILOT,#35

92064-1101

$12.84

92064B

JET-PILOT,#32

92064-1117

$18.64

92144

SPRING,VACUUM VALVE

92144-1066

$10.05

15003

CARBURETOR-ASSY

15003-1747

$630.62

15003A

CARBURETOR-ASSY

15003-1748

$630.62

16017

JET-NEEDLE

16017-1319

$52.49

16017A

JET-NEEDLE,#6

16017-1393

$51.61

49006

BOOT,STARTER PLUNGER

49006-1165

$9.68

92063

JET-MAIN,#140

92063-1013

$10.71

92063C

JET-MAIN,#142

92063-1016

$13.39

92063D

JET-MAIN,#145

92063-1017

$10.71

92063E

JET-MAIN,#128

92063-1074

$13.39

92063F

JET-MAIN,#130

92063-1075

$13.39

92063G

JET-MAIN,#132

92063-1076

$13.39
