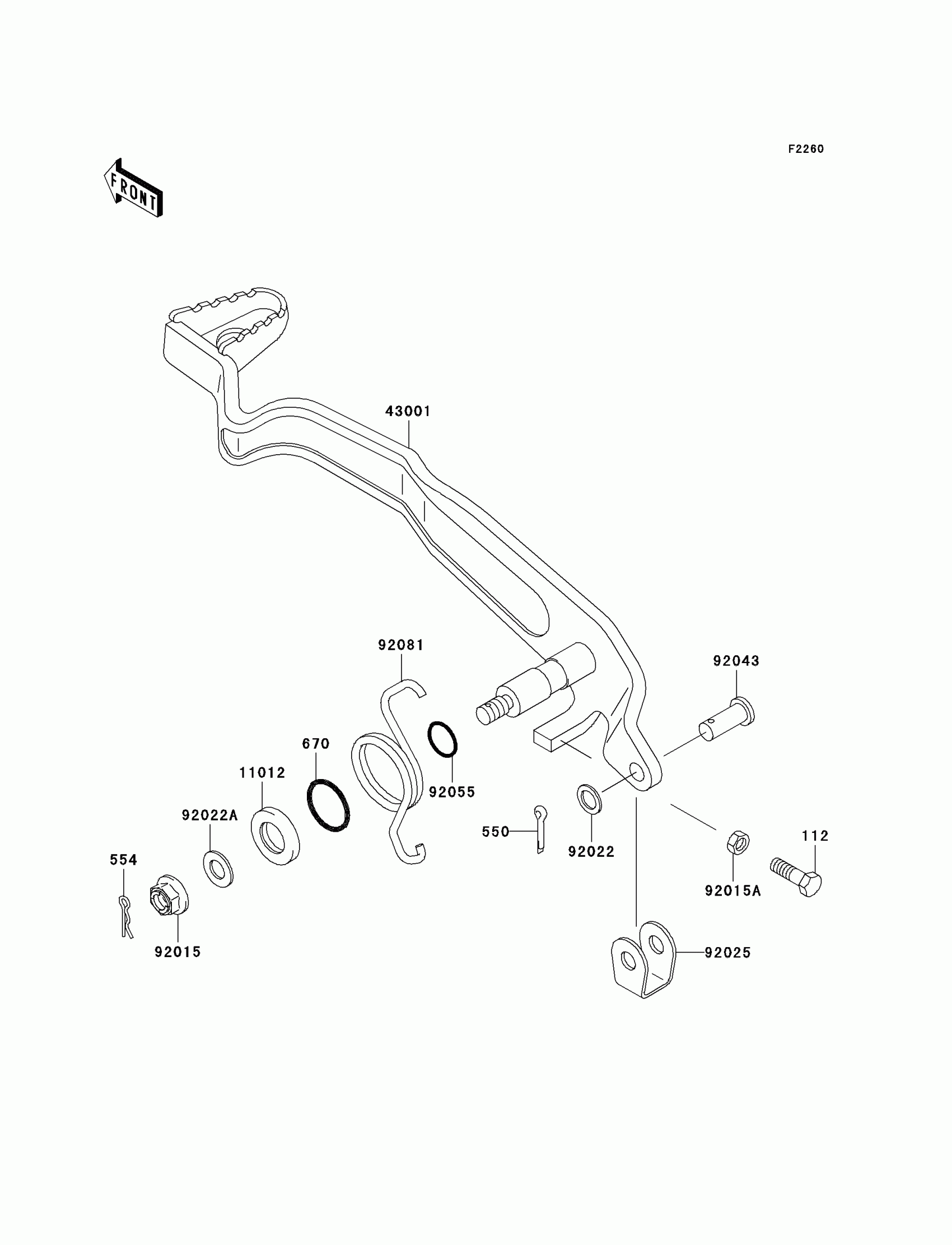

Kawasaki KFX 250 Mojave Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112D0622

Unavailable

550

PIN-COTTER,2.0X20

550D2020

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

670

O RING,18MM

670B2018

$1.08

11012

CAP

11012-1516

Unavailable

43001

LEVER-BRAKE,PEDAL

43001-1330

$71.38

92015

NUT,LOCK,FLANGED,8MM

92015-1397

$3.29

92015A

NUT,6MM

92015-1410

$3.53

92022

WASHER,8.5X13X1

92022-1028

$2.99

92022A

WASHER,8.5X16X1.2

92022-1582

$0.81

92025

SHIM,BRACK PEDAL

92025-1778

$5.14

92043

92043-1039

$7.54

92055

RING-O,13.5MM

92055-073

$9.71

92081

SPRING,BRAKE PEDAL RETURN

92081-1996

$8.10
