2004 Kawasaki KFX 250 Mojave AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2004 Kawasaki KFX 250 Mojave, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

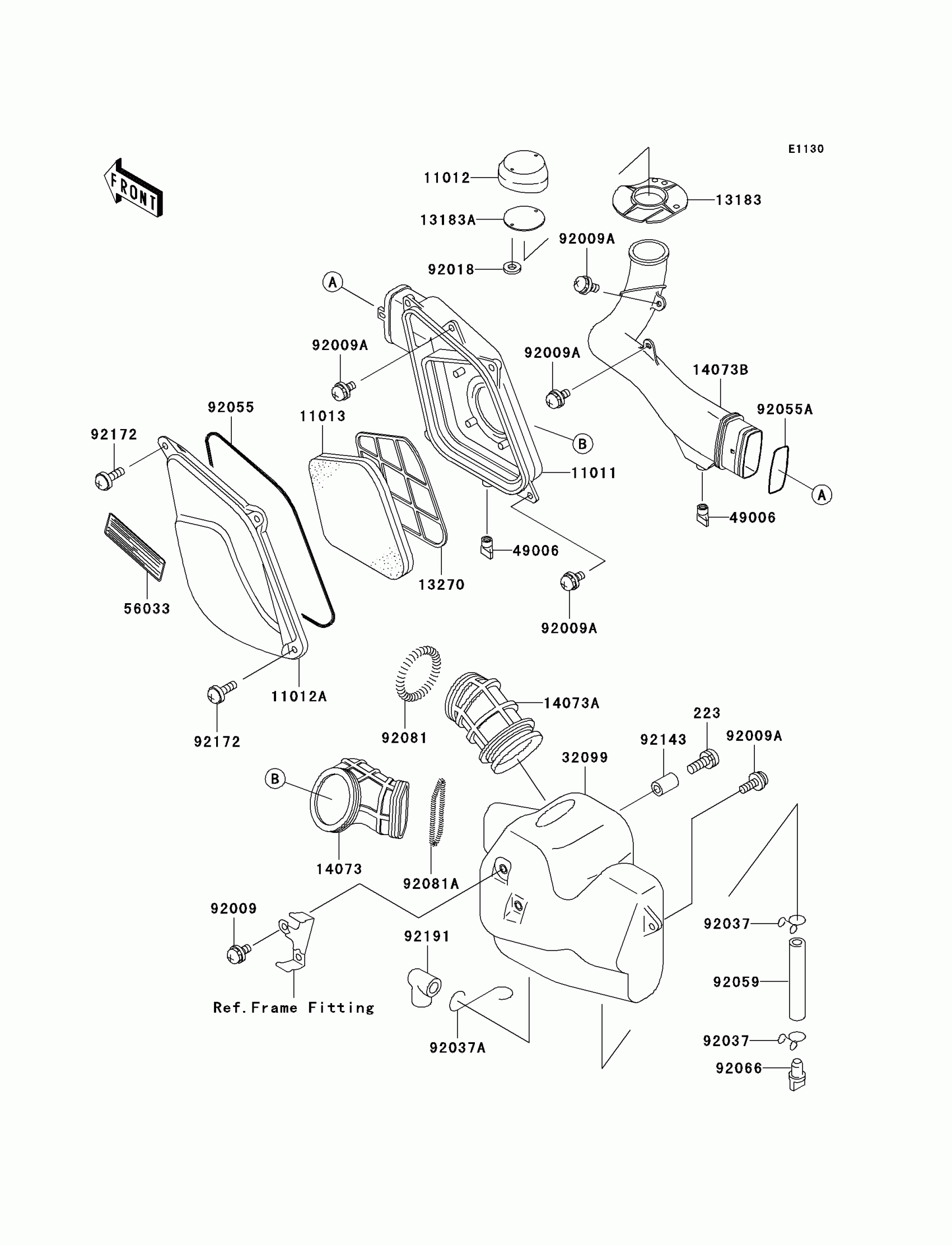

2004 Kawasaki KFX 250 Mojave AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

223

SCREW-PAN-WS-CROS

223C0635

1
Out of stock

11011

CASE-AIR FILTER

11011-1442

1

$81.55

In stock

11012

CAP,SNORKL DUCT

11012-1537

1

$23.85

In stock

11012A

CAP,CAR FILTER

11012-1902

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1145

1

$13.39

In stock

13183

PLATE,SNORKL DUCT

13183-1019

1

$21.98

In stock

13183A

PLATE,SNORKL CAP

13183-1020

1
Out of stock

13270

PLATE,ELEMENT

13270-1317

1
Out of stock

14073

DUCT,CHAMBER-AIRFILTER

14073-1266

1
Out of stock

14073A

1

$31.33

In stock

14073B

DUCT,SNORKL

14073-1629

1
Out of stock

32099

CASE,AIR CHAMBER

32099-1155

1

$95.24

In stock

49006

BOOT

49006-1292

1

$6.18

In stock

56033

1

$2.20

In stock

92009

SCREW,6X14

92009-1275

1
Out of stock

92009A

SCREW,6X16

92009-1276

1
Out of stock

92018

NUT,PUSH,3MM

92018-005

1

$2.25

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP

92037-1821

1

$5.61

In stock

92055

1

$13.17

In stock

92055A

RING-O,57.3X3

92055-1345

1

$5.61

In stock

92059

TUBE,7X10X100

92059-1736

1

$3.54

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92081

SPRING,COIL

92081-1177

1

$7.89

In stock

92081A

SPRING,DUCT

92081-1638

1

$9.47

In stock

92143

COLLAR

92143-1046

1

$4.42

In stock

92172

SCREW,6X18

92172-0002

1

$2.29

In stock

92191

TUBE,BREATHER

92191-0001

1
Out of stock
