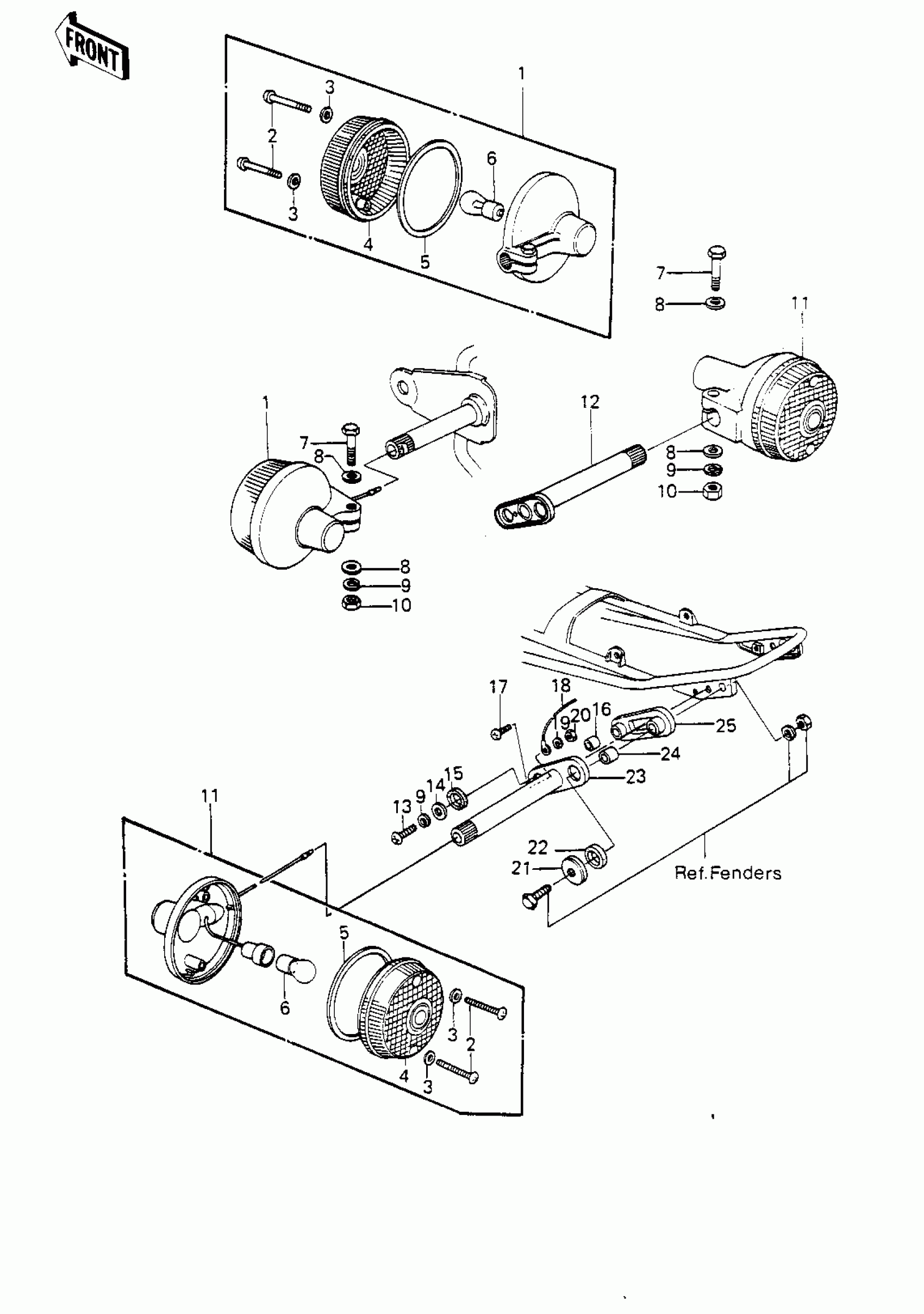

Kawasaki KE250-B3 TURN SIGNALS Diagram
#
Description
Price
1
LAMP ASSY,TURN SIGNAL
23040-038
Unavailable
2
SCREW-PAN HEAD,4X20
220E0420A
Unavailable
3
WASHER,PLAIN,4MM
23058-002
Unavailable
3
LENS-SIGNAL LAMP,"045-6588"
23048-1001
Unavailable
5
GASKET,SIGNAL LAMP
23050-003
Unavailable
6
BULB,6V 21CP
92069-056
Unavailable
7
BOLT-UPSET
112G0630
Unavailable
8
WASHER PLAIN 6MM
411B0600
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
NUT 6MM
311B0600
Unavailable
11
LAMP-REAR TURN SIGNAL
23040-033
Unavailable
12
BRACKET,REAR SIG,R.H
23051-055
Unavailable
13
SCREW PAN HEAD 6X25
220B0625
Unavailable
14
WASHER,PLAIN,6MM
92022-286
Unavailable
15
DAMPER,RUBBER
92075-310
Unavailable
16
COLLAR
92027-241
Unavailable
17
SCREW-PAN-CROS,3X8
220B0308
Unavailable
18
WIRE,LEAD,TURN SIGNAL
26011-066
Unavailable
19
WASHER SPRING 3MM
461F0300
Unavailable
20
NUT-HEX
311B0300
Unavailable
21
CAP,REAR TURN SIGNAL
92102-018
Unavailable
22
DAMPER RUBBER,SIGNAL
92075-309
Unavailable
23
BRACKET,REAR SIG,L.H
23051-056
Unavailable
24
COLLAR,8.4X12X12
92027-286
Unavailable
25
DAMPER RUBBER,SIGNAL
92075-308
Unavailable
