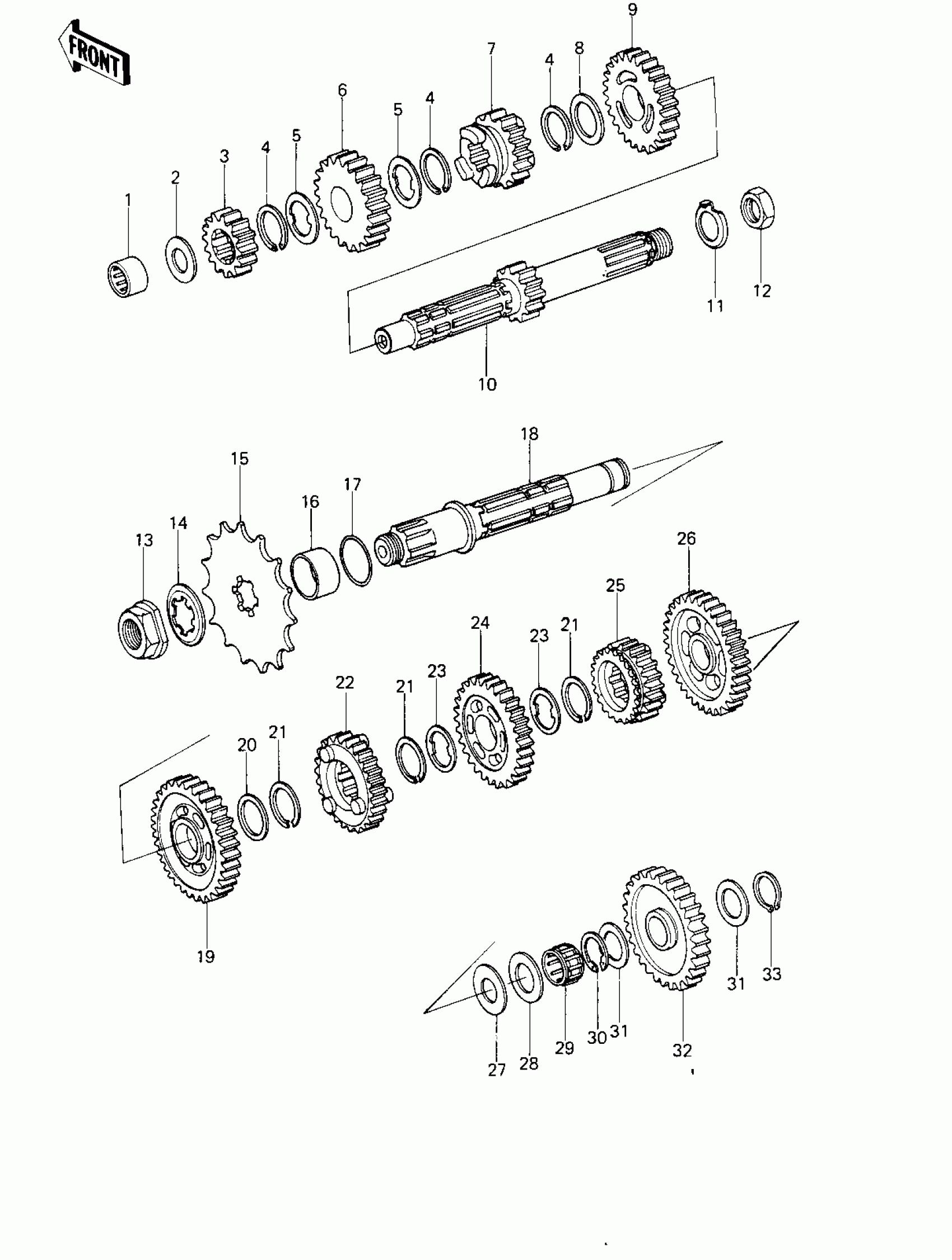

Kawasaki KE250-B3 TRANSMISSION Diagram
#
Description
Price
1
NEEDLE BEARING,HK1516 (Canada)
92046-057
Unavailable
2
WASHER,THRUST,15MM
92022-279
Unavailable
3
2ND GEAR,DRIVE SHAFT
13130-046
Unavailable
4
RING-SNAP,18MM
92033-029
Unavailable
5
WASHER,LOCK
92024-059
Unavailable
6
4TH GEAR,DRIVE SHAFT
13134-031
Unavailable
7
3RD GEAR,DRIVE SHAFT
13132-046
Unavailable
8
WASHER,20.5X25.5X0.5
92022-252
Unavailable
9
TOP GEAR,DRIVE SHAFT
13136-062
Unavailable
10
SHAFT,DRIVE
13127-057
Unavailable
11
WASHER,LOCK,16M/M
92024-076
Unavailable
12
NUT,LOCK,16MM
92015-072
Unavailable
13
NUT,18MM
92015-075
Unavailable
14
WASHER,LOCK
92024-065
Unavailable
15
ENGINE SPROCKET,14T
13144-068
Unavailable
15
ENGINE SPROCKET,13T
13144-1017
Unavailable
16
COLLAR,ENGINE SPROKET
92027-1053
Unavailable
17
RING-O
92055-035
Unavailable
18
SHAFT,OUTPUT
13128-043
Unavailable
19
2ND GEAR,OUTPUT SHAFT
13131-054
Unavailable
20
WASHER,22.3X27X0.5
92022-198
Unavailable
21
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
22
4TH GEAR,OUTPUT SHAFT
13135-036
Unavailable
23
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
24
3RD GEAR,OUTPUT SHAFT
13133-043
Unavailable
25
TOP GEAR,OUTPUT SHAFT
13137-041
Unavailable
26
LOW GEAR,OUTPUT SHAFT
13129-060
Unavailable
27
WASHER,PLAIN
92022-280
Unavailable
28
WASHER,PLAIN
92022-281
Unavailable
29
BEARING-NEEDLE
92046-1184
Unavailable
30
RING-SNAP
92033-032
Unavailable
31
WASHER-THRUST
92022-197
Unavailable
32
IDLE GEAR 28T
13073-012
Unavailable
33
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
