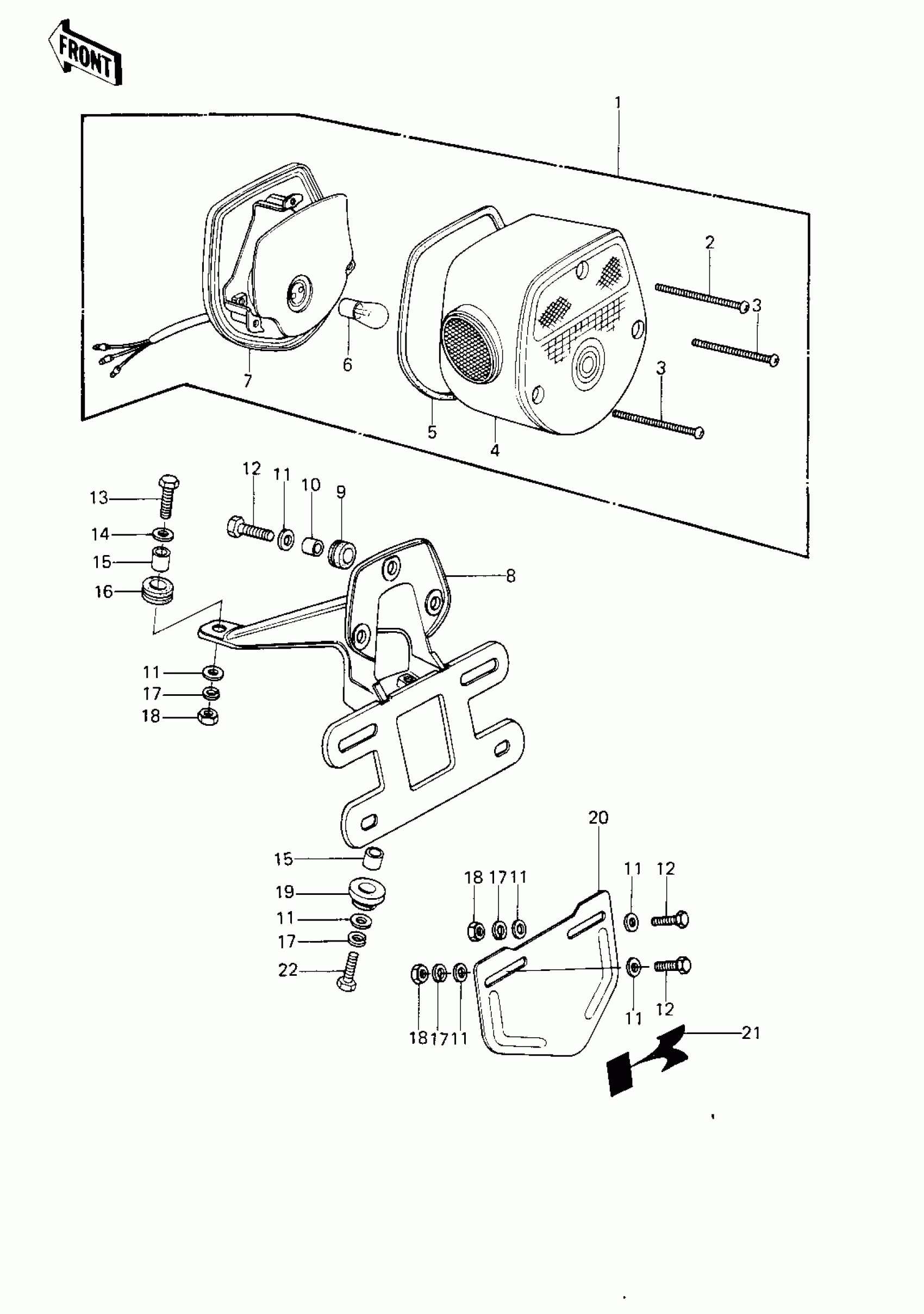

Kawasaki KE250-B3 TAILLIGHT Diagram
#
Description
Price
1
TAIL LAMP UNIT
23025-1030
Unavailable
2
SCREW
220R0455
Unavailable
3
SCREW PAN HEAD 4X50
220E0450
Unavailable
4
LENS,TAIL LAMP
23026-028
Unavailable
5
GASKET,TAIL LAMP LENS
23028-019
Unavailable
6
BULB,6V 32/3CP
92069-074
Unavailable
7
CASE,TAIL LAMP
23027-037
Unavailable
8
BRACKET,LICENSE PLATE
23036-056
Unavailable
9
DAMPER RUBBER
92075-076
Unavailable
10
COLLAR,6.8X10X8.5
92027-129
Unavailable
11
WASHER,6.5X20X1.6
92022-125
Unavailable
12
BOLT-UPSET,6X20
112G0620
Unavailable
13
BOLT-UPSET,6X20
110B0628
Unavailable
14
WASHER,PLAIN,6MM
92022-286
Unavailable
15
COLLAR
92027-241
Unavailable
16
DAMPER RUBBER,RR FENR
92075-209
Unavailable
17
WASHER SPRING 6MM
461F0600
Unavailable
18
NUT 6MM
311B0600
Unavailable
19
DAMPER RUBBER
92075-112
Unavailable
20
BRACKET,LICENSE PLATE
11034-1117
Unavailable
20
BRACKET,LICENSE PLATE
11034-1117
Unavailable
21
EMBLEM,LICNSE PLT BKT
56018-176
Unavailable
22
BOLT-UPSET
112G0625
Unavailable
