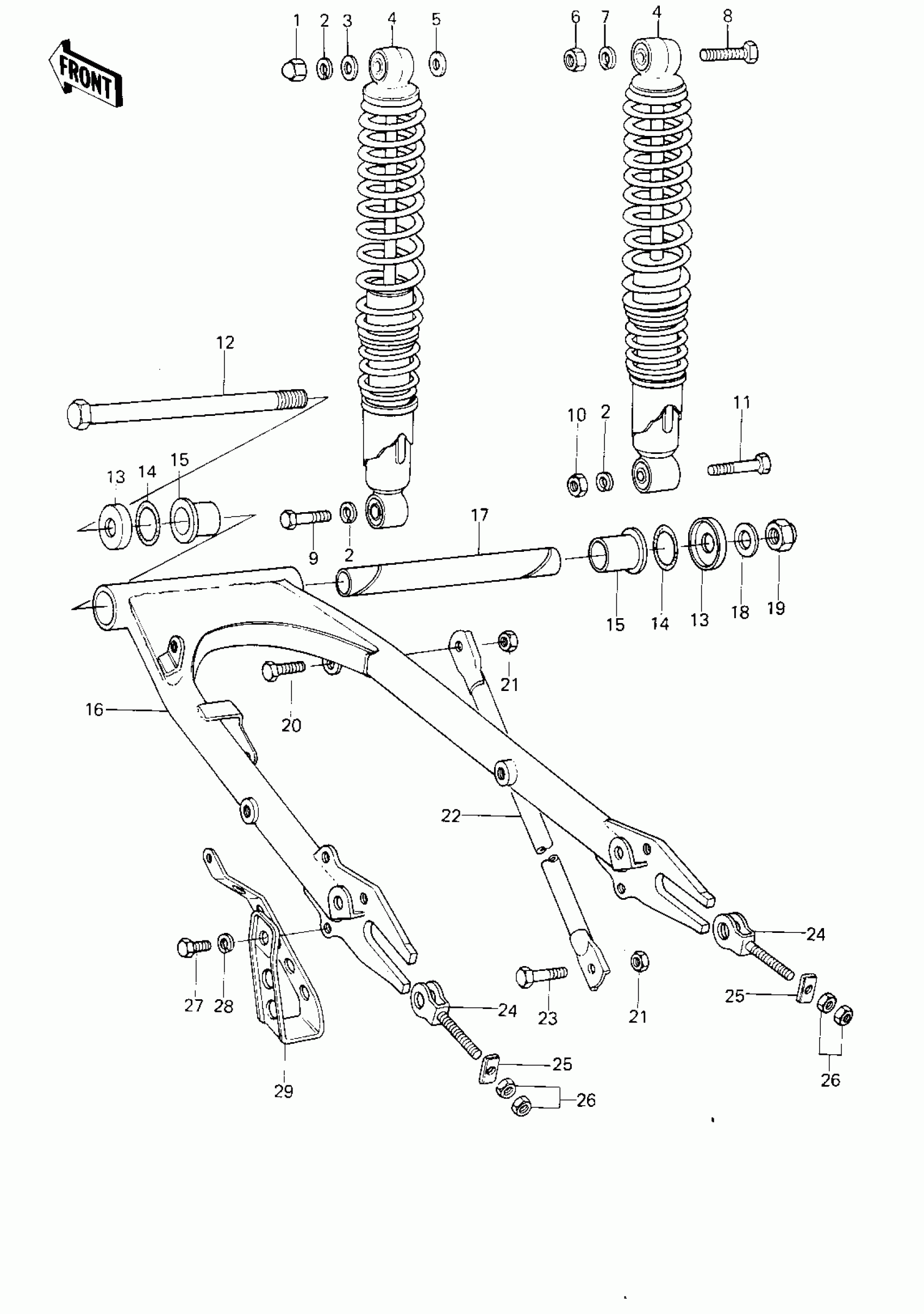

Kawasaki KE250-B3 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
NUT,CAP,10MM
92020-003
Unavailable
2
WASHER SPRING 10MM
461F1000
Unavailable
3
WASHER-PLAIN,10MM
411B1000
Unavailable
4
SHOCK ABSBR RR
45014-122
Unavailable
4
SHOCK ABSBR RR
45014-1016
Unavailable
5
WASHER PLAIN 12MM
411B1200
Unavailable
6
NUT-HEX-FINE
315B1200
Unavailable
7
WASHER-SPRING,12MM
461F1200
Unavailable
8
BOLT HEX HEAD 12X40
113B1240
Unavailable
9
BOLT HEX HEAD 10X35
113N1035
Unavailable
10
NUT-HEX-FINE,10MM
314B1000
Unavailable
11
BOLT HEX HEAD 10X45
113N1045
Unavailable
12
SHAFT-SWING ARM PIVOT
33032-035
Unavailable
13
CAP-SWINGING ARM
33035-005
Unavailable
14
"0" RING,30MM
671B2530
Unavailable
15
BUSHING-SWING ARM
33033-009
Unavailable
16
SWING ARM
33001-088
Unavailable
17
SLEEVE,SWING ARM
42036-1003
Unavailable
18
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
19
NUT-LOCK,12MM
92019-009
Unavailable
20
BOLT,HEX HEAD,10X22
113G1022
Unavailable
21
NUT,10MM
92019-016
Unavailable
22
TORQUE LINK,REAR BRAK
43007-048
Unavailable
23
BOLT,10X28
113G1028
Unavailable
24
ADJUSTER,CHAIN
33040-1002
Unavailable
25
PLATE,CHAIN ADJUSTER
33041-005
Unavailable
26
NUT,8MM
311B0800
Unavailable
27
BOLT, HEX HEAD 8 X 14
110B08-14
Unavailable
28
WASHER SPRING 8MM
461F0800
Unavailable
29
GUARD,CHAIN
55020-021
Unavailable
