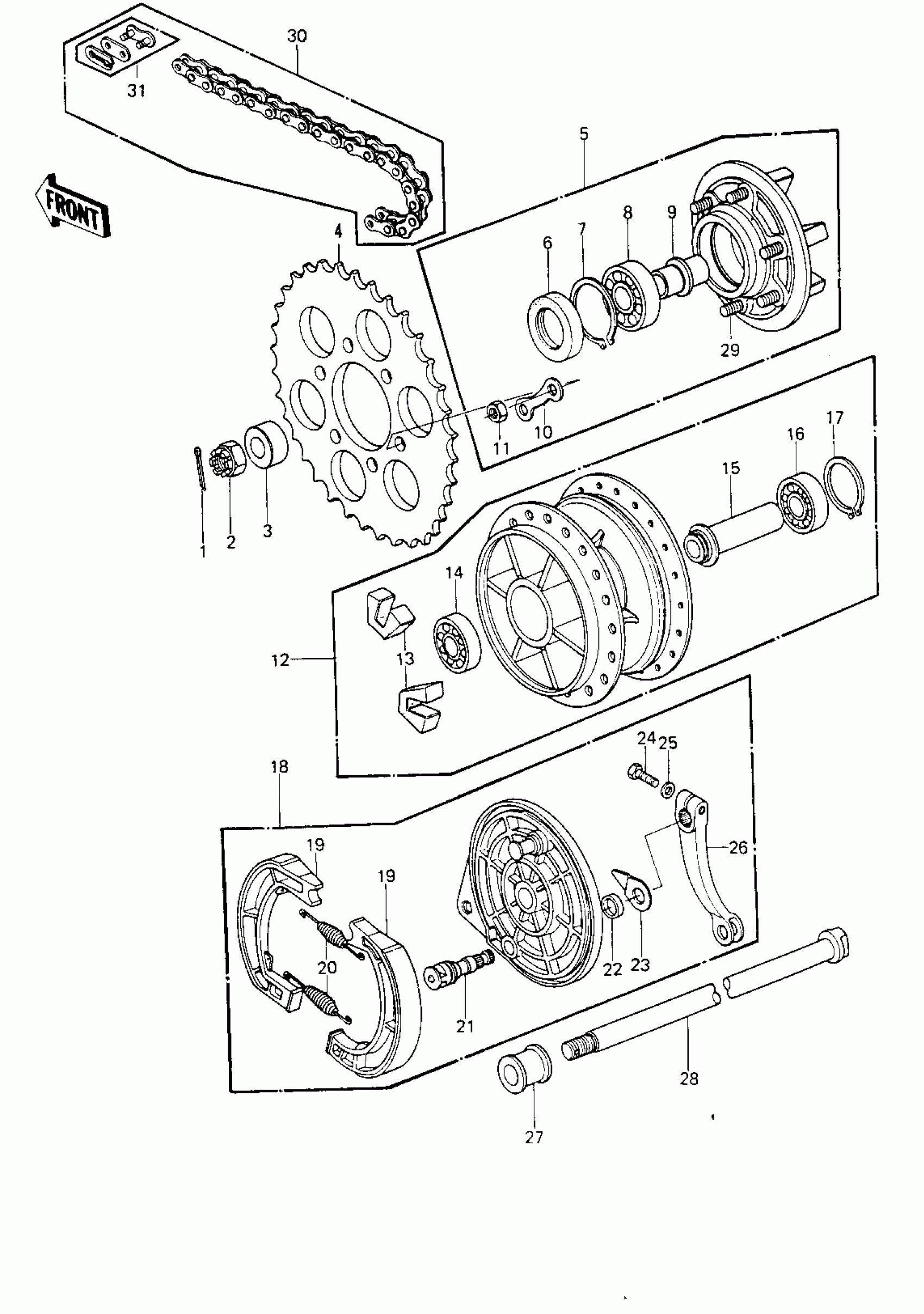

Kawasaki KE250-B3 REAR HUB/BRAKE/CHAIN Diagram
#
Description
Price
1
PIN-COTTER,4.0X35
550D4035
Unavailable
2
NUT,16MM
92015-055
Unavailable
3
COLLAR,17X35X17.5
42032-068
Unavailable
4
REAR SPROCKET,39T
42041-175
Unavailable
5
COUPLING ASSY,REAR HB
42008-030
Unavailable
6
SEAL-OIL,TWC35527
92052-006
Unavailable
7
RING-SNAP,52MM
92033-1043
Unavailable
7
RING-SNAP,52MM
92033-1043
Unavailable
8
BEARING-BALL,#6205C3
601B6205
Unavailable
9
SLEEVE,COUPLING
42036-023
Unavailable
10
WASHER LOCK
92088-007
Unavailable
11
NUT,10MM
42045-005
Unavailable
12
DRUM ASSY,REAR BRAKE
42005-052
Unavailable
13
DAMPER,REAR HUB SHOCK
42014-024
Unavailable
14
BEARING-BALL,#6303C3
601B6303
Unavailable
15
COLLAR,REAR HUB BEARG
42010-038
Unavailable
16
BEARING-BALL
601B6303U
Unavailable
17
RING-SNAP,47MM
92033-1042
Unavailable
17
RING-SNAP,47MM
92033-1042
Unavailable
18
PANEL-ASY,RR BRK
41035-1004
Unavailable
19
SHOE,BRAKE
42019-011
Unavailable
20
SPRING,BRAKE SHOE
42020-004
Unavailable
21
CAM SHAFT,REAR BRAKE
41050-1003
Unavailable
22
SEAL,BRAKE CAM
41051-001
Unavailable
23
INDICATOR,FR BRK SHOE
41085-017
Unavailable
24
BOLT-UPSET
112G0625
Unavailable
25
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
26
LEVER,REAR BRAKE CAM
42029-040
Unavailable
27
COLLAR,REAR AXLE,R.H
42032-069
Unavailable
28
AXLE,RR
42031-053
Unavailable
29
STUD,REAR HUB COUPLNG
92004-061
Unavailable
30
DR CHAIN 520X98
92057-106
Unavailable
31
CHAIN JOINT 520
92058-1001
Unavailable
