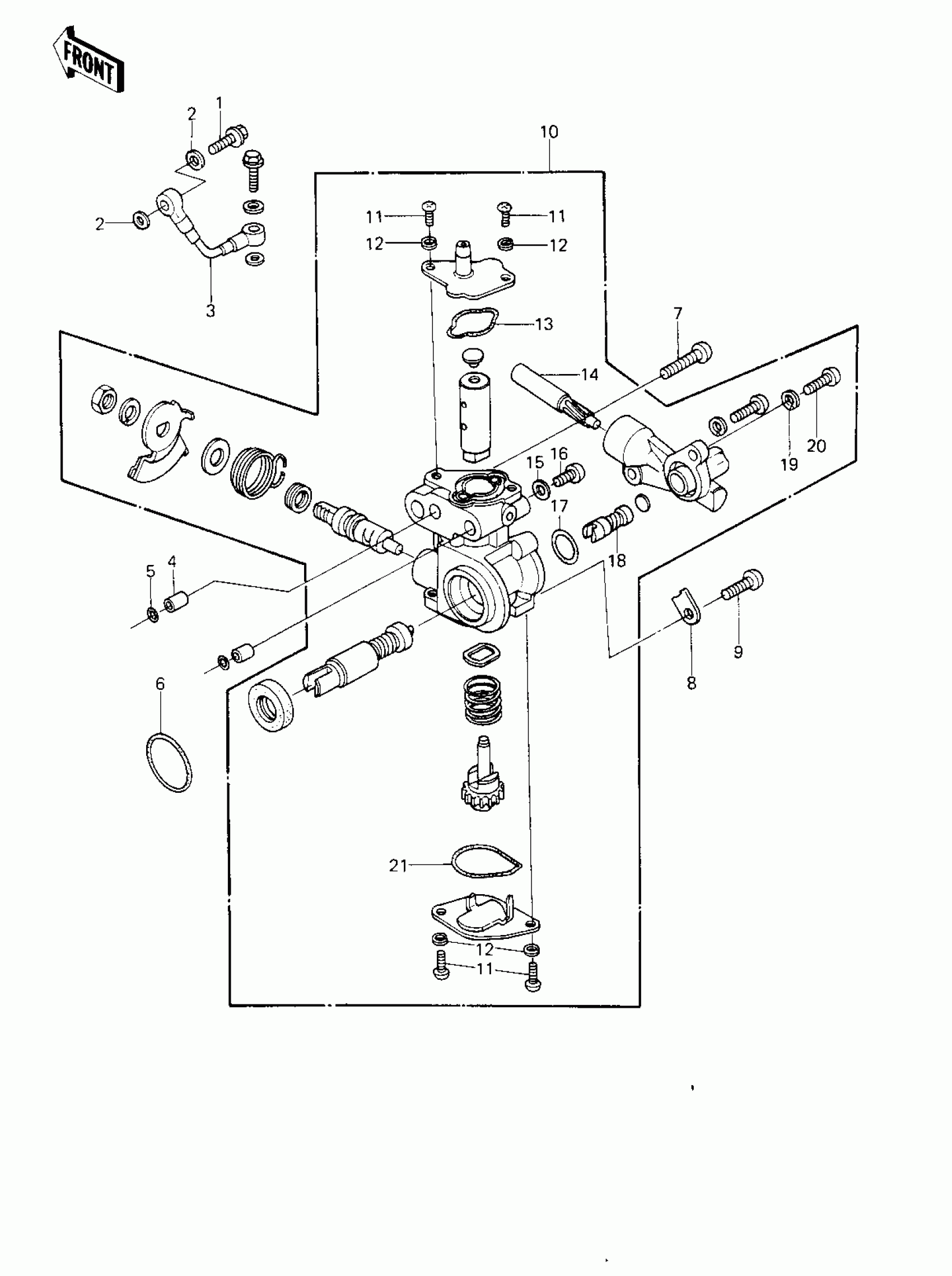

Kawasaki KE250-B3 OIL PUMP Diagram
#
Description
Price
1
BOLT,BANJO,L=16
92060-013
Unavailable
2
WASHER OIL PUMP BANJO
92022-077
Unavailable
3
PIPE,OIL
16134-030
Unavailable
4
COLLAR,2.5X5X9.8
92027-256
Unavailable
5
O RING,5MM
670B1505
Unavailable
6
RING-O,19.5X1.5
92055-055
Unavailable
7
SCREW-PAN-CROS
220B0520
Unavailable
8
CLAMP
92037-187
Unavailable
9
SCREW-PAN-CROS,6X14
220B0614
Unavailable
10
OIL PUMP ASSY
16082-1008
Unavailable
10
OIL PUMP ASSY
16082-1008
Unavailable
10
OIL PUMP ASSY
16082-1008
Unavailable
11
SCREW-PAN-CROS,3X8
220B0308
Unavailable
12
WASHER SPRING 3MM
461F0300
Unavailable
13
"0" RING,OIL PUMP,UPP
92055-1016
Unavailable
14
GEAR,TACHOMETER
41060-1008
Unavailable
15
WASHER,AIR VENT
92022-1025
Unavailable
17
"0" RING,TACHOMTR CAS
92055-1017
Unavailable
18
GEAR,WORM TACHOMETER
41060-1007
Unavailable
19
WASHER SPRING 4MM
461F0400
Unavailable
20
SCREW PAN HEAD 4X10
220B0410
Unavailable
21
"O" RING,OIL PUMP LOW
92055-1015
Unavailable
