1979 Kawasaki KE250-B3 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1979 Kawasaki KE250-B3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

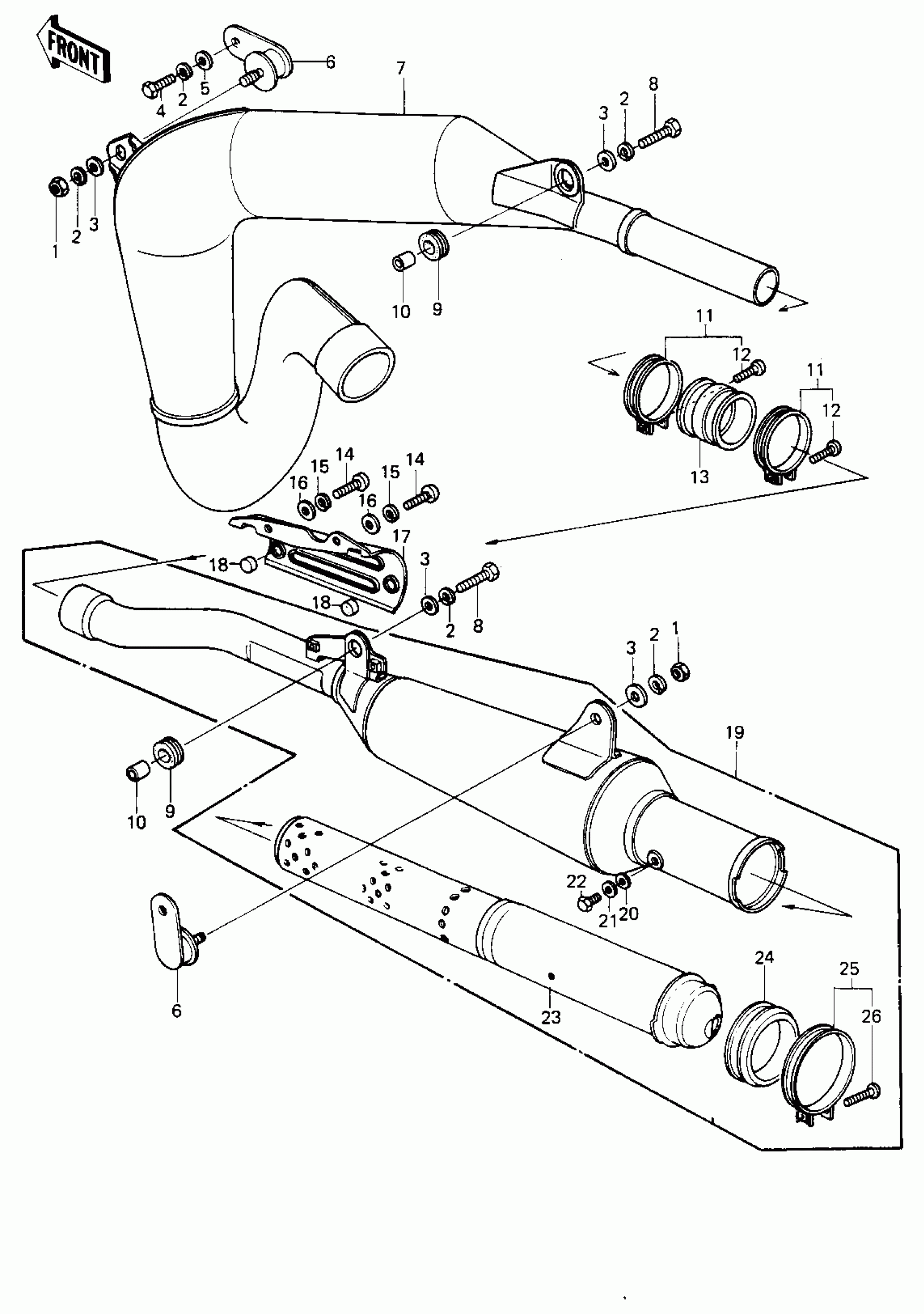

1979 Kawasaki KE250-B3 Muffler Diagram

#

Description
Price
Status
Order Qty

1

NUT,8MM

311B0800

Out of stock

2

WASHER SPRING 8MM

461F0800

Out of stock

3

WASHER,8.5X20X1.6

92022-1561

Out of stock

4

BOLT-SMALL-UPSET,8X16

115G0816

Out of stock

5

WASHER PLAIN 8MM

410B0800

Out of stock

6

BRACKET,MUFFLER

18061-060

Out of stock

7

BODY-MUFFLER,F.BLACK

18006-1019

Out of stock

8

BOLT-SMALL-UPSET 8X25

115G0825

Out of stock

9

DAMPER RUBBER-MUFFLER

18063-005

Out of stock

10

COLLAR

92027-102

Out of stock

11

CLAMP

92037-177

Out of stock

12

SCREW-PAN-CROS,5X25

220B0525

Out of stock

13

SEAL,MUFFLER

92093-1014

Out of stock

14

SCREW PAN HEAD 6X12

220B0612

Out of stock

15

WASHER SPRING 6MM

461F0600

Out of stock

16

WASHER PLAIN 6MM

411B0600

Out of stock

17

COVER,MUFFLER,F.BLACK

14025-1061

Out of stock

18

DAMPER

92075-1089

Out of stock

19

MUFFLER ASSY,F.BLACK

18001-1046

Out of stock

20

WASHER OIL PUMP BANJO

92022-077

Out of stock

21

WASHER PLAIN 6MM

411B0600

Out of stock

22

BOLT HEX HEAD 6X8

110B0608

Out of stock

23

BAFFLE-PIPE,MUFFLER

49099-1007-21

Out of stock

24

DUST SHIELD,MUFFLER

92093-1013

Out of stock

25

CLAMP,AIR FILTER

92037-171

Out of stock

26

SCREW-PAN-CROS

220B0535

Out of stock
