1979 Kawasaki KE250-B3 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1979 Kawasaki KE250-B3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

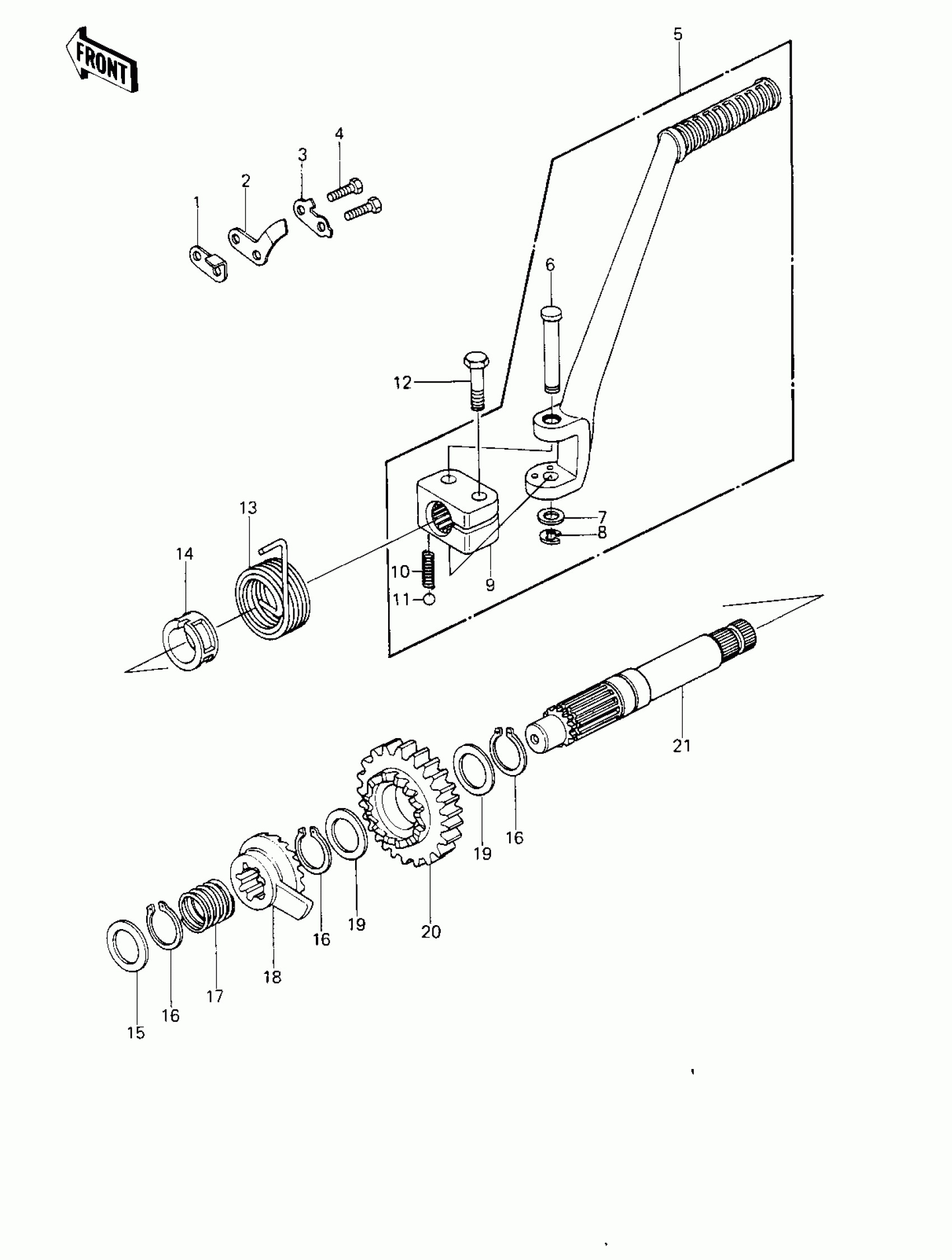

1979 Kawasaki KE250-B3 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

STOPPER,KICKSHAFT

13072-016

Out of stock

2

GUIDE,KICK STOPPER

13206-011

Out of stock

3

WASHER,KICKSTOP GUIDE

92031-010

Out of stock

4

BOLT-UPSET

112G0618

Out of stock

5

PEDAL ASSY,KICK

13058-064

Out of stock

6

PIN-KICKSTARTER

92043-075

Out of stock

7

WASHER PLAIN 8MM

410B0800

Out of stock

8

CIRCLIP 5MM

482K5000

Out of stock

9

BOSS,KICK PEDAL

13061-028

Out of stock

10

SPRING,KICK PEDAL

92081-157

Out of stock

11

BALL-STEEL,1/4

600A0800

Out of stock

12

BOLT HEX HEAD 8X28

114G0828

Out of stock

13

SPRING,KICKSTARTER

92082-003

Out of stock

14

GUIDE,KICKSTARTER

13070-007

Out of stock

15

WASHER,20.5X25.5X0.5

92022-252

Out of stock

16

RING-SNAP,24MM

92033-026

Out of stock

17

SPRING

92081-097

Out of stock

18

RATCHET

13078-007

Out of stock

19

WASHER,25.3X30X0.5

92022-159

Out of stock

20

GEAR,KICK,29T

13068-036

Out of stock

21

SHAFT,KICK

13066-1002

Out of stock
