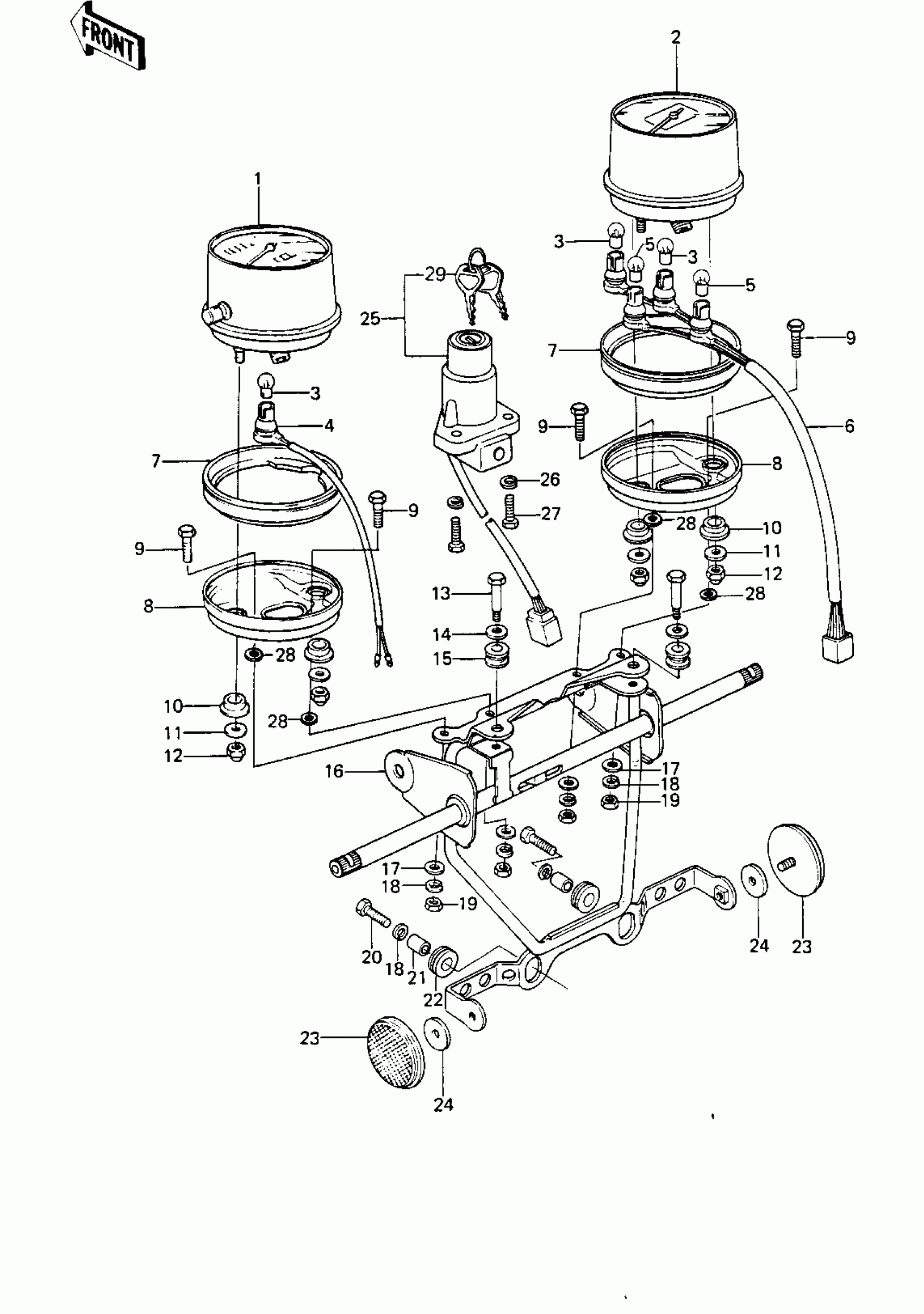

Kawasaki KE250-B3 METERS/IGNITION SWITCH Diagram
#
1
SPEEDOMETER,ASSY,MPH
25005-1026
Unavailable
1
SPEEDOMETER,ASSY,MPH
25005-1026
Unavailable
1
SPEEDOMETER,ASSY,MPH
25006-1062
Unavailable
1
SPEEDOMETER,ASSY,KPH (Canada)
25005-1027
Unavailable
2
TACHOMETER
25016-029
Unavailable
3
BULB,6V 3W,CLEAR
92069-053
Unavailable
4
SOCKET ASSY,SPEEDOMET
25010-021
Unavailable
5
BULB,6V 1.7W
92069-024
Unavailable
6
SOCKET ASSY,TACHOMETE
25011-053
Unavailable
7
SHOCK DAMPER,SPEEDMET
25019-031
Unavailable
8
COVER,METER
25012-025
Unavailable
9
BOLT,HEX HEAD,6X14
92003-204
Unavailable
10
DAMPER,METER
25019-013
Unavailable
11
WASHER-PLAIN,5MM
411B0500
Unavailable
12
NUT,5MM
92015-059
Unavailable
13
BOLT,HEX HEAD,6M/M
92001-184
Unavailable
14
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
15
DAMPER
92075-024
Unavailable
16
BRACKET,METER
25008-049
Unavailable
17
WASHER PLAIN 6MM
411B0600
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
BOLT-UPSET
112G0625
Unavailable
21
COLLAR
92027-241
Unavailable
22
DAMPER RUBBER,RR FENR
92075-209
Unavailable
23
REFLECTOR,REFLEX,REAR
28012-009
Unavailable
24
DAMPER,REFLECTOR
92094-011
Unavailable
25
SWITCH-ASSY-IGNITION
27005-1029
Unavailable
25
SWITCH-ASSY-IGNITION
27005-1029
Unavailable
26
WASHER SPRING 6MM
461F0600
Unavailable
27
BOLT-UPSET,6X16
112G0616
Unavailable
28
WASHER,6M/M,METER
92022-1039
Unavailable
29
KEY SET,#A01
27008-073-01
Unavailable
29
KEY SET,#A35
27008-073-35
Unavailable
29
KEY,BLANK
27008-1028
Unavailable
29
KEY,BLANK
27008-1029
Unavailable
29
KEY-LOCK,BLANK,#A
27008-1034
Unavailable
29
KEY-LOCK,BLANK,#B
27008-1035
Unavailable
