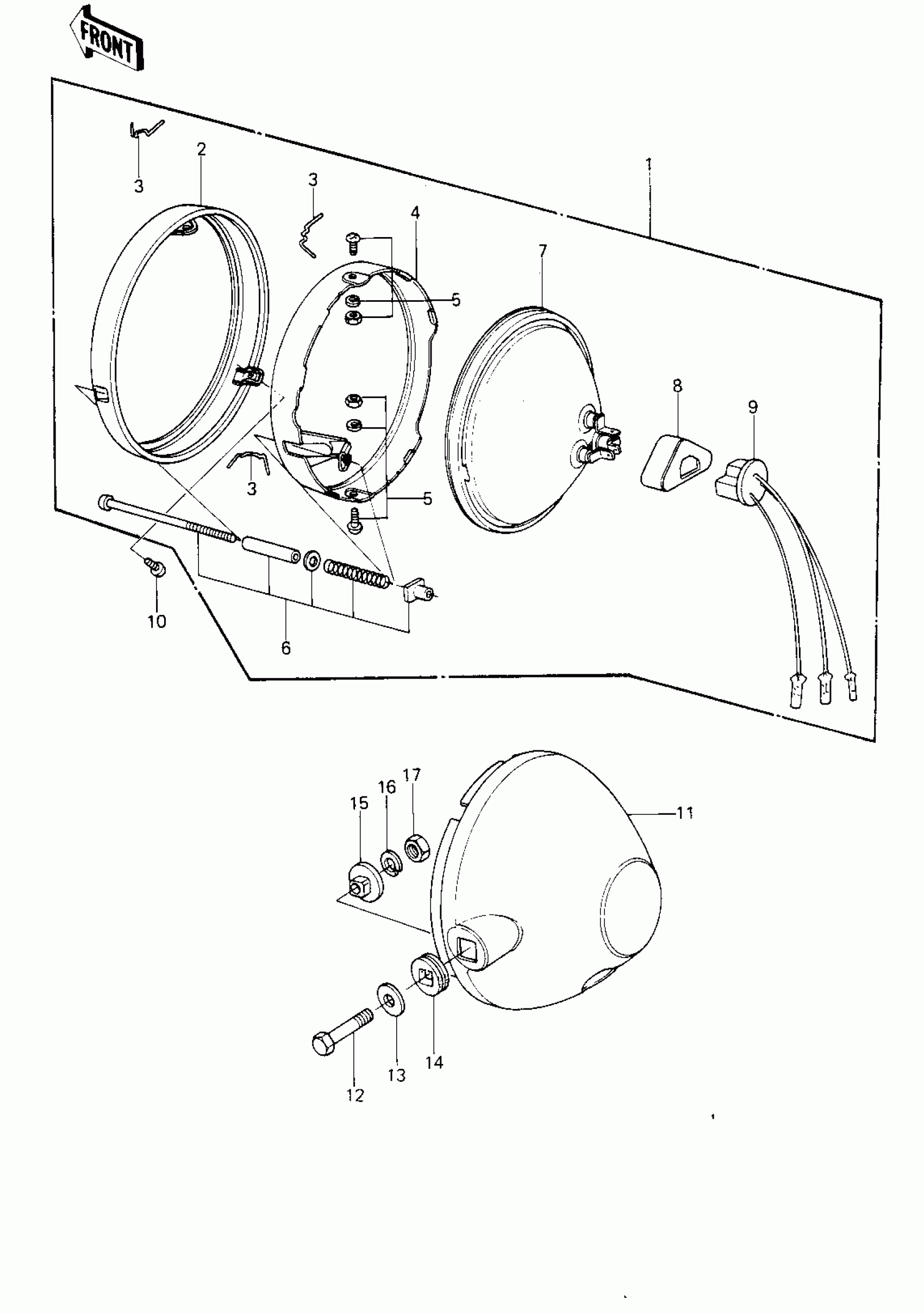

Kawasaki KE250-B3 HEADLIGHT Diagram

#

Description

Price

1

LIGHT UNIT,HEAD

23003-026

Unavailable

2

RIM,HEAD LAMP

23006-042

Unavailable

3

SPRING,HEAD LAMP LENS

23009-015

Unavailable

4

RETAINER,SEALED BEAM

23072-002

Unavailable

5

SCREW SET,LENS UNIT

23013-007

Unavailable

6

SCREW ASSY,FOCUS AJST

23013-5001

Unavailable

7

SEALED BEAM UNIT

23007-073

Unavailable

8

COVER,HEAD LAMP SOCKET

23081-001

Unavailable

9

SOCKET-ASSY,HEAD LAMP

23008-044

Unavailable

10

SCREW,PAN HEAD,5X14

23019-025

Unavailable

11

BODY,HEAD LAMP,BLACK

23005-049-21

Unavailable

12

BOLT,HEX HEAD,10X30

92007-041

Unavailable

13

WASHER-PLAIN,10MM

411D1000

Unavailable

14

DAMPER RUBBER

23066-011

Unavailable

15

COLLAR

23052-005

Unavailable

16

WASHER SPRING 10MM

461F1000

Unavailable

17

NUT-HEX-FINE,10MM

314B1000

Unavailable
