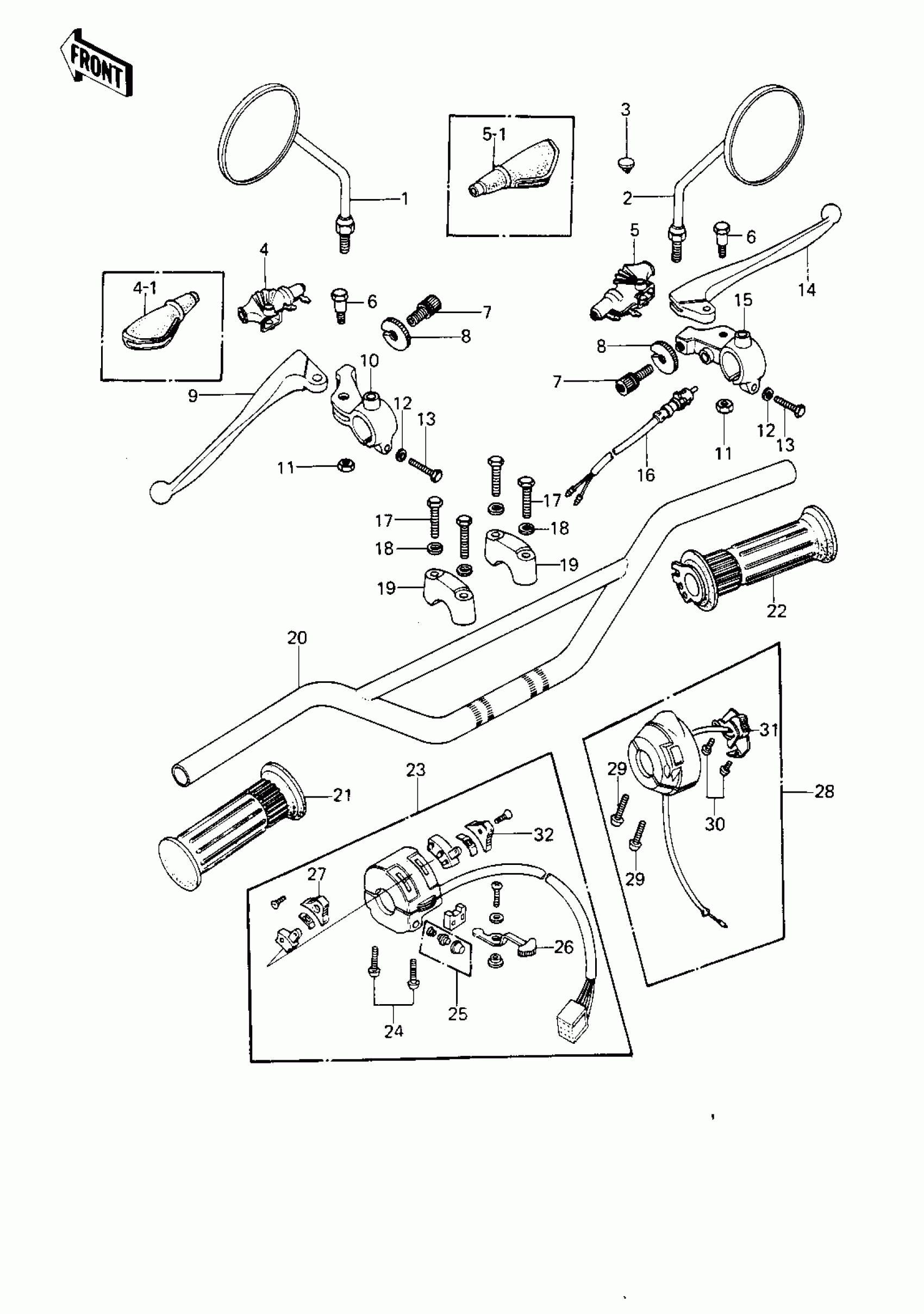

Kawasaki KE250-B3 HANDLEBAR Diagram
#
1
MIRROR-ASSY,LH
56003-009
Unavailable
2
MIRROR-ASSY,RH
56002-020
Unavailable
3
CAP-RR VIEW MIRROR
92102-009
Unavailable
4
BOOT,LEVER HOLDER
49006-1017
Unavailable
4-1
BOOT,LEVER HOLDER
49006-1017
Unavailable
5
BOOT,LEVER HOLDER
49006-1017
Unavailable
5-1
BOOT,LEVER HOLDER
49006-1017
Unavailable
6
BOLT,5X22
92007-046
Unavailable
7
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
8
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
9
LEVER-GRIP,CLUTCH
46092-015
Unavailable
10
HOLDER,F.BLACK
46094-011-21
Unavailable
11
NUT,LOCK,5MM
92019-014
Unavailable
12
WASHER-PLAIN,6MM
411D0600
Unavailable
13
BOLT HEX HEAD 6X25
110N0625
Unavailable
14
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
15
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
16
SWITCH,FR BRAKE LAMP
27021-004
Unavailable
17
BOLT 8X38
92001-1405
Unavailable
18
WASHER SPRING 8MM
461F0800
Unavailable
19
HOLDER,HANDLEBAR
46012-014
Unavailable
20
HANDLEBAR,BRIDGE
46003-1004
Unavailable
21
RUBBER,L.H GRIP
46075-029
Unavailable
22
GRIP ASSY,THROTTLE
46019-040
Unavailable
23
CASE ASSY,L.H
46091-061
Unavailable
23
CASE ASSY,L.H.
46091-1021
Unavailable
23
CASE ASSY,L.H.
46091-1021
Unavailable
24
SCREW PAN HEAD 5X22
220B0522
Unavailable
25
SWITCH,PUSH BUTTON
27010-1009
Unavailable
26
KNOB,SGNL LIGHT SWICH
92077-1005
Unavailable
27
KNOB,LIGHTING SWITCH
92077-1004
Unavailable
28
CASE ASSY,R.H.
46091-1022
Unavailable
29
SCREW PAN HEAD 5X22
220B0522
Unavailable
30
SCREW-PAN-CROS,3X6
220B0306
Unavailable
31
SWITCH ASSY,ENG STOP
46027-014
Unavailable
32
KNOB,LIGHTING SWITCH
92077-1004
Unavailable
