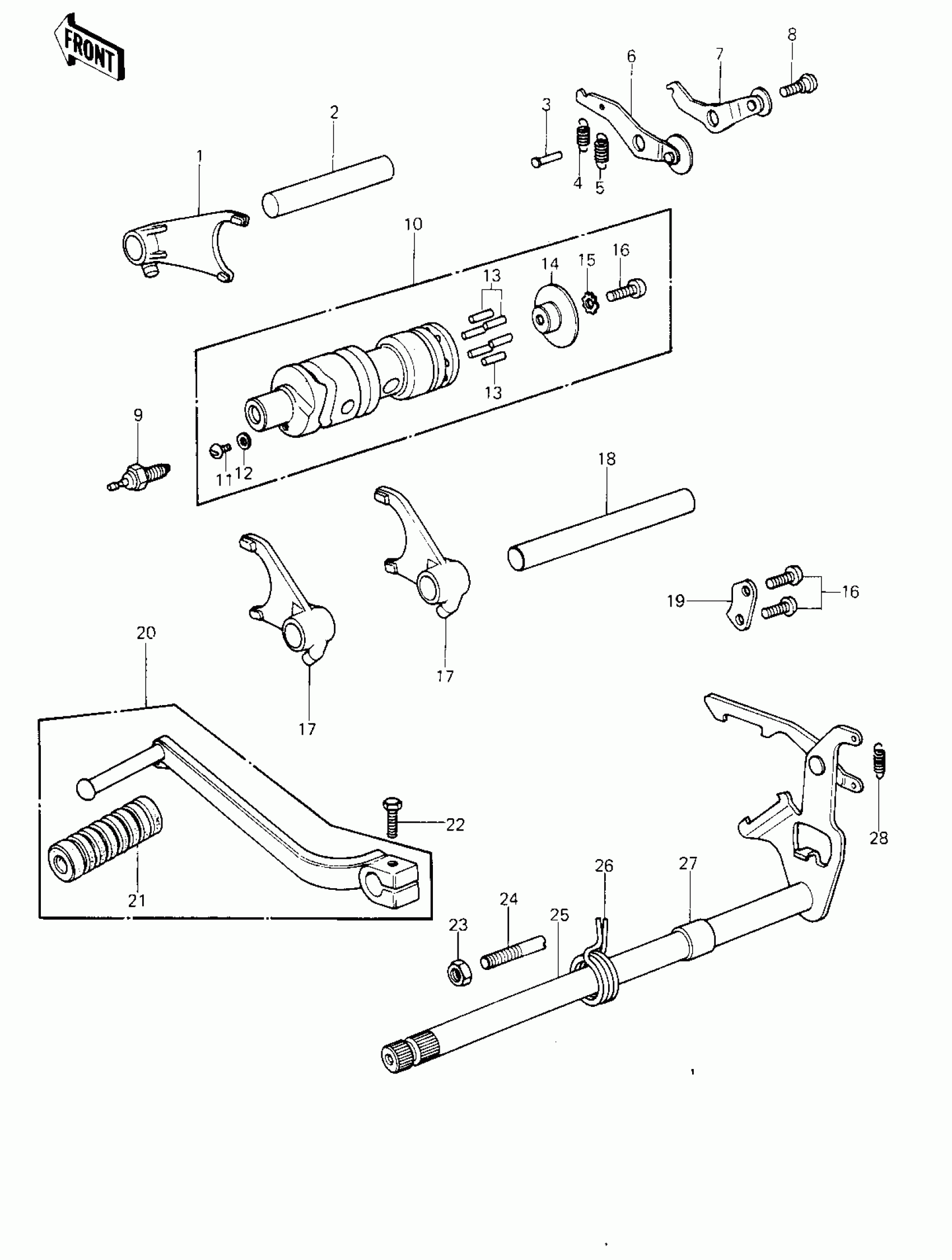

Kawasaki KE250-B3 GEAR CHANGE MECHANISM Diagram
#
Description
Price
1
SHIFT FORK,4TH & TOP
13140-078
Unavailable
2
ROD,SHIFT 71.7M/M
49047-1002
Unavailable
3
PIN
92043-1004
Unavailable
4
SPRING,NEUTRAL POSITION
92081-156
Unavailable
5
SPRING,CHNG DRUM LEVR
92081-1045
Unavailable
6
LEVER ASSY,GEAR CHANG
13236-009
Unavailable
7
LEVER ASSY,GEAR CHANG
13236-010
Unavailable
8
SCREW,6MM
92011-023
Unavailable
9
SWITCH,NEUTRAL
13151-019
Unavailable
10
DRUM ASSY,CHANGE
13239-027
Unavailable
11
SCREW,PAN HEAD,4X6
92009-006
Unavailable
12
WASHER PLAIN 4MM
410B0400
Unavailable
13
PIN,DOWEL,4X15.8
92042-014
Unavailable
14
HOLDER,CHANGE DRUM PIN
13142-014
Unavailable
15
WASHER LOCK 6MM
464H0600
Unavailable
16
SCREW-PAN-CROS,6X14
220B0614
Unavailable
17
SHIFT FORK,LOW,2ND&3D
13140-077
Unavailable
18
ROD-SHIFT,L=93.7
49047-1003
Unavailable
19
PLATE,CHANGE DRUM
13169-012
Unavailable
20
PEDAL,GEAR CHANGE
13156-066
Unavailable
21
DAMPER,CHANGE PEDAL
13157-004
Unavailable
22
BOLT-UPSET,6X20
112G0620
Unavailable
23
NUT 8MM
312B0800
Unavailable
24
BOLT,RETURN SPRING
92001-1401
Unavailable
25
SHAFT ASSY,GEAR CHANG
13161-1008
Unavailable
25
SHAFT ASSY,GEAR CHANG
13161-1008
Unavailable
26
SPRING,GEAR CHANGE PEDAL
92083-031
Unavailable
27
COLLAR,13X18.3X21.5
92027-1440
Unavailable
28
SPRING,CHANGE LEVER
92081-076
Unavailable
