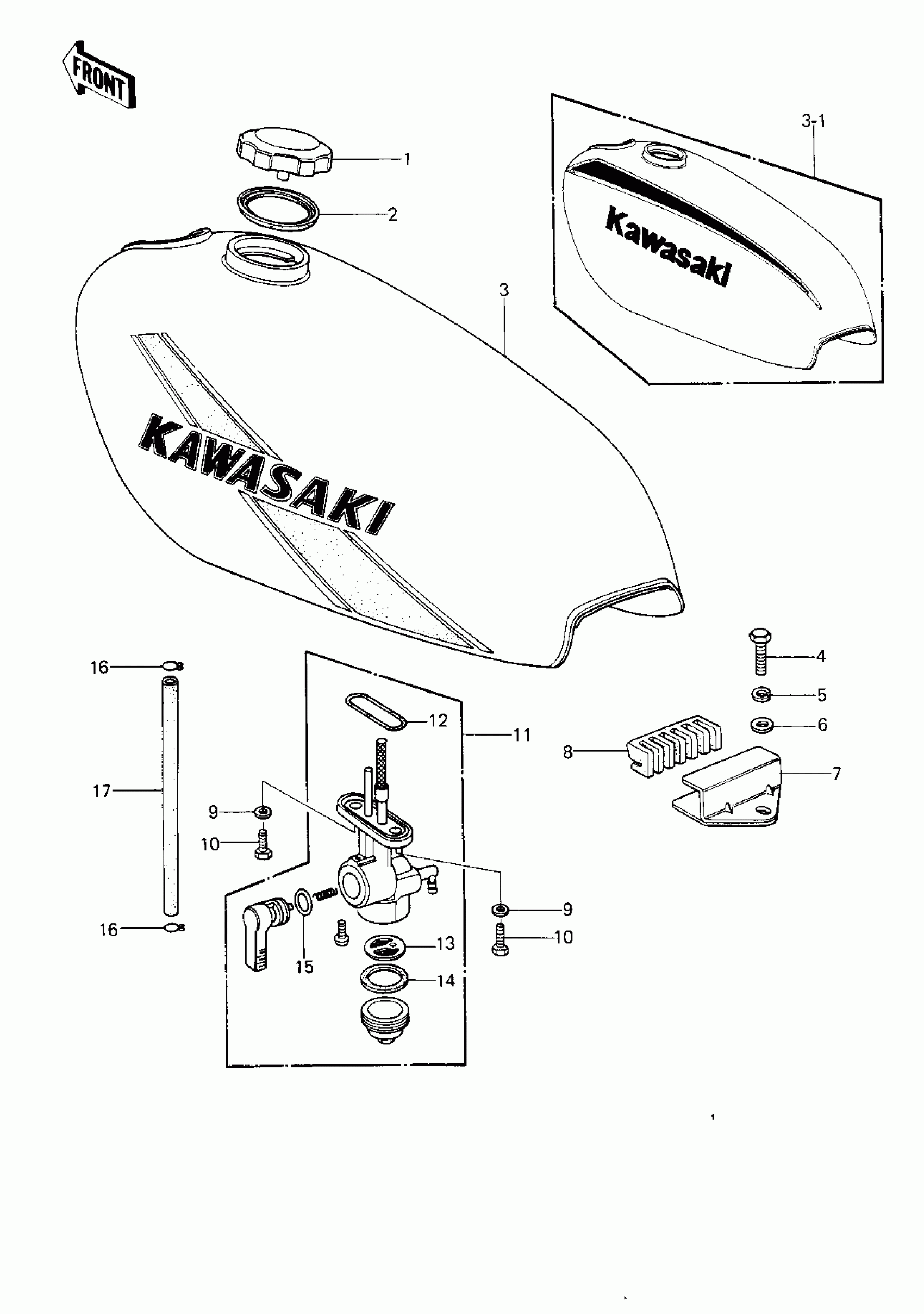

Kawasaki KE250-B3 FUEL TANK Diagram

#

Description

Price

1

CAP,FUEL TANK

51048-1013

Unavailable

2

GASKET,FUEL TANK CAP

51059-011

Unavailable

3

TANK-FUEL,C.E.GREEN

51001-113-4U

Unavailable

3-1

TANK-FUEL,F.RED

51001-113-B1

Unavailable

4

BOLT,8X20

115G0820

Unavailable

5

WASHER SPRING 8MM

461F0800

Unavailable

6

WASHER PLAIN 8MM

411B0800

Unavailable

7

BRACKET,FUEL TANK

32052-085

Unavailable

8

DAMPER RUBBER,FUEL TK

92075-292

Unavailable

9

WASHER-PLAIN

92022-183

Unavailable

10

BOLT-HEX HEAD,6X16

92001-114

Unavailable

11

TAP ASSY,FUEL

51023-1001

Unavailable

12

RING,TAP FLANGED

51039-003

Unavailable

13

STRAINER,FUEL

51038-008

Unavailable

14

GASKET FUEL COCK CUP

51037-011

Unavailable

15

O RING,10MM

670B2010

Unavailable

16

CLAMP,TUBE

92037-010

Unavailable

17

PIPE FUEL TANK CONECT

51047-001

Unavailable
