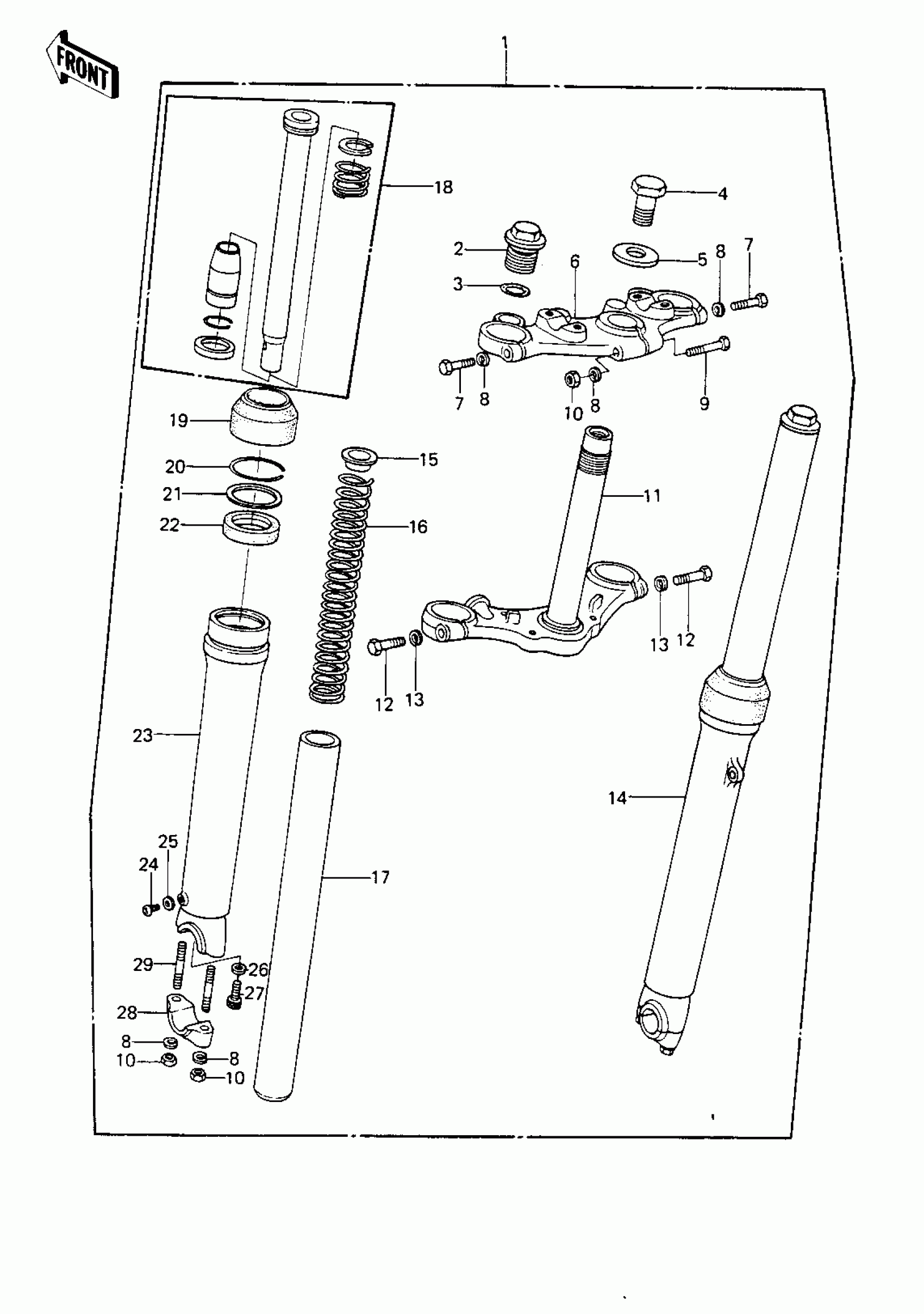

Kawasaki KE250-B3 FRONT FORK Diagram
#
Description
Price
1
FORK-FRONT
44001-1039
Unavailable
1
FORK-FRONT
44001-1039
Unavailable
1
FORK-FRONT
44001-1039
Unavailable
2
BOLT,FORK TOP
44062-010
Unavailable
3
RING-O,FORK TOP
92055-1012
Unavailable
4
BOLT STRNG STEM HEAD
44041-007
Unavailable
5
WASHER STRNG STEM HD
44043-016
Unavailable
6
HEAD,STEERING STEM
44039-080
Unavailable
7
BOLT-STEERING STEM HD
44041-044
Unavailable
8
WASHER SPRING 8MM
461F0800
Unavailable
9
BOLT-STEERING STEM HD
44041-042
Unavailable
10
NUT,LOCK,8MM
92015-1124
Unavailable
11
STEM,STEERING
44037-112
Unavailable
12
BOLT-HEX HEAD,12X36
92003-064
Unavailable
13
WASHER-SPRING,12MM
461F1200
Unavailable
14
TUBE,RH,FORK OUTER
44006-1007
Unavailable
15
GUIDE,FORK SPRING
44028-033
Unavailable
16
SPRING,FORK,INNER
44026-1007
Unavailable
17
TUBE,FORK INNER
44013-1006
Unavailable
17
TUBE,FORK INNER
44013-1013
Unavailable
18
CYLINDER-FORK
44022-1005
Unavailable
18
CYLINDER-FORK
44022-1013
Unavailable
19
DUST SHIELD,FORK
44010-036
Unavailable
20
CIRCLIP-OIL SEAL FIT
44044-012
Unavailable
21
WASHER-OIL SEAL FIT
44043-044
Unavailable
22
OIL SEAL
44009-016
Unavailable
23
TUBE,LH,FORK OUTER
44005-1007
Unavailable
24
SCREW PAN HEAD 4X8
220B0408
Unavailable
25
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
26
GASKET
44045-057
Unavailable
27
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
28
HOLDER-FRONT AXLE
44063-011
Unavailable
29
BOLT-STUD,8X30
172G0830
Unavailable
