1979 Kawasaki KE250-B3 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1979 Kawasaki KE250-B3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

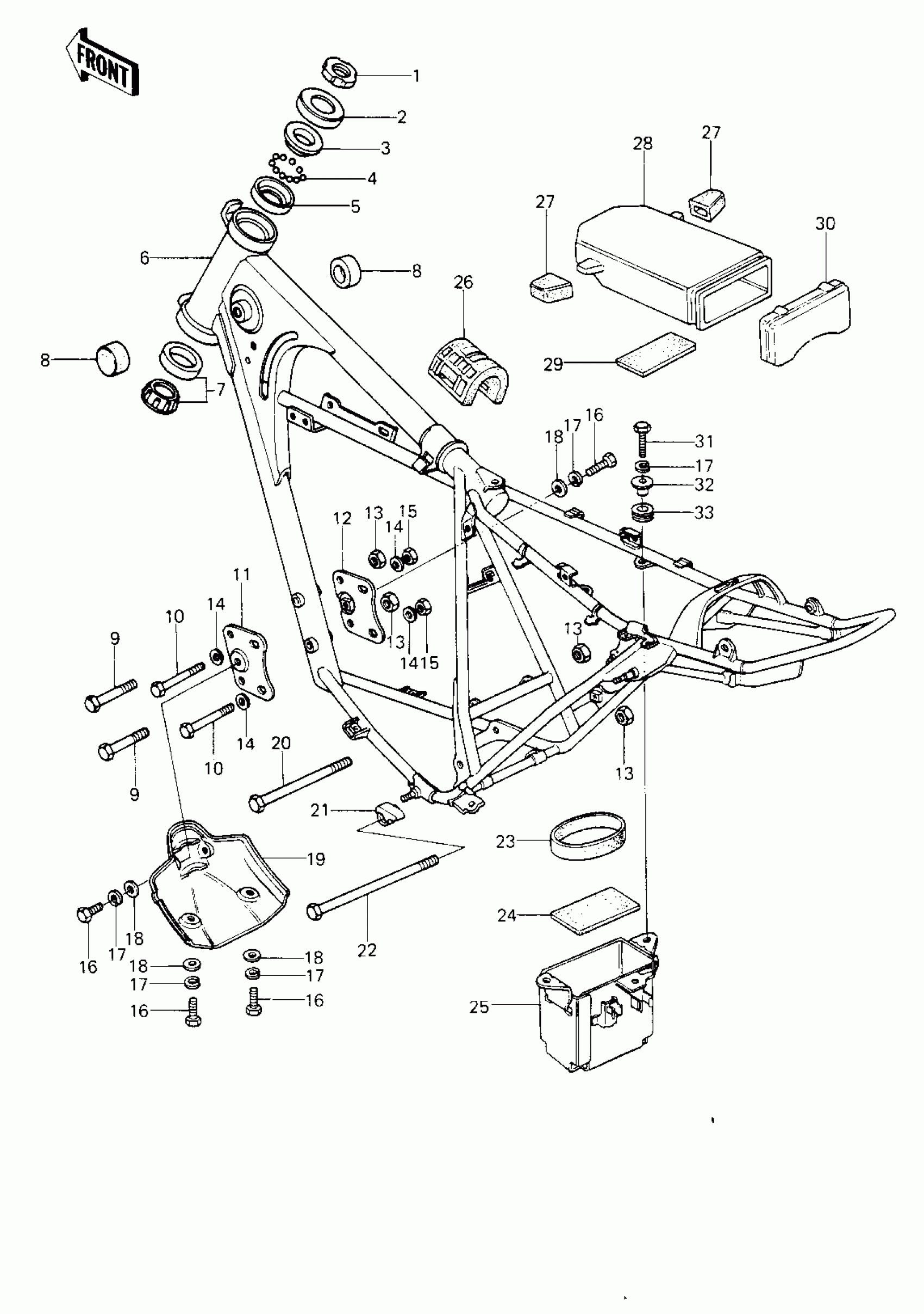

1979 Kawasaki KE250-B3 Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

NUT,STEERING LOCK,25MM

92090-022

Out of stock

2

CAP,STEERING STEM

46098-018

Out of stock

3

CONE,STEERING STEM

92047-020

Out of stock

4

BALL-STEEL,1/4

600A0800

Out of stock

5

RACE,STEERING STEM

92048-010

Out of stock

6

FRAME

32002-156

Out of stock

6

FRAME

32002-1041

Out of stock

7

RACE,ROLLER,32005JR RS

92047-017

Out of stock

8

DAMPER,FUEL TANK

92075-101

Out of stock

9

BOLT,HEX HEAD,10X65

113B1065

Out of stock

10

BOLT,FLANGED,8X70

92001-1583

Out of stock

11

PLATE,ENGINE MUNT,L.H

32030-062

Out of stock

12

PLATE,ENGINE MUNT,R.H

32030-072

Out of stock

13

NUT,LOCK,10MM

92019-021

Out of stock

14

WASHER PLAIN 8MM

411B0800

Out of stock

15

NUT,LOCK,8MM

92017-013

Out of stock

16

BOLT-UPSET,6X16

112G0616

Out of stock

17

WASHER SPRING 6MM

461F0600

Out of stock

18

WASHER-PLAIN,7MM

92022-240

Out of stock

19

GUARD,ENGINE

55011-025

Out of stock

20

BOLT,HEX HEAD,10X130

92001-1249

Out of stock

21

GUARD

55020-1009

Out of stock

22

BOLT,HEX HEAD,10X150

92001-1251

Out of stock

23

DAMPER,BATTERY BOTTOM

32103-023

Out of stock

24

DAMPER,BATTERY

32103-027

Out of stock

25

CASE,BATTERY

32097-042

Out of stock

26

DAMPER,FUEL TANK

92075-284

Out of stock

27

DAMPER,RUBBER

92075-316

Out of stock

28

CASE,TOOL

32098-027

Out of stock

29

DAMPER,RUBBER

92075-1015

Out of stock

30

COVER,TOOL CASE

32104-007

Out of stock

31

BOLT-UPSET,6X20

112G0620

Out of stock

32

COLLAR

92027-153

Out of stock

33

DAMPER RUBBER

92075-051

Out of stock
