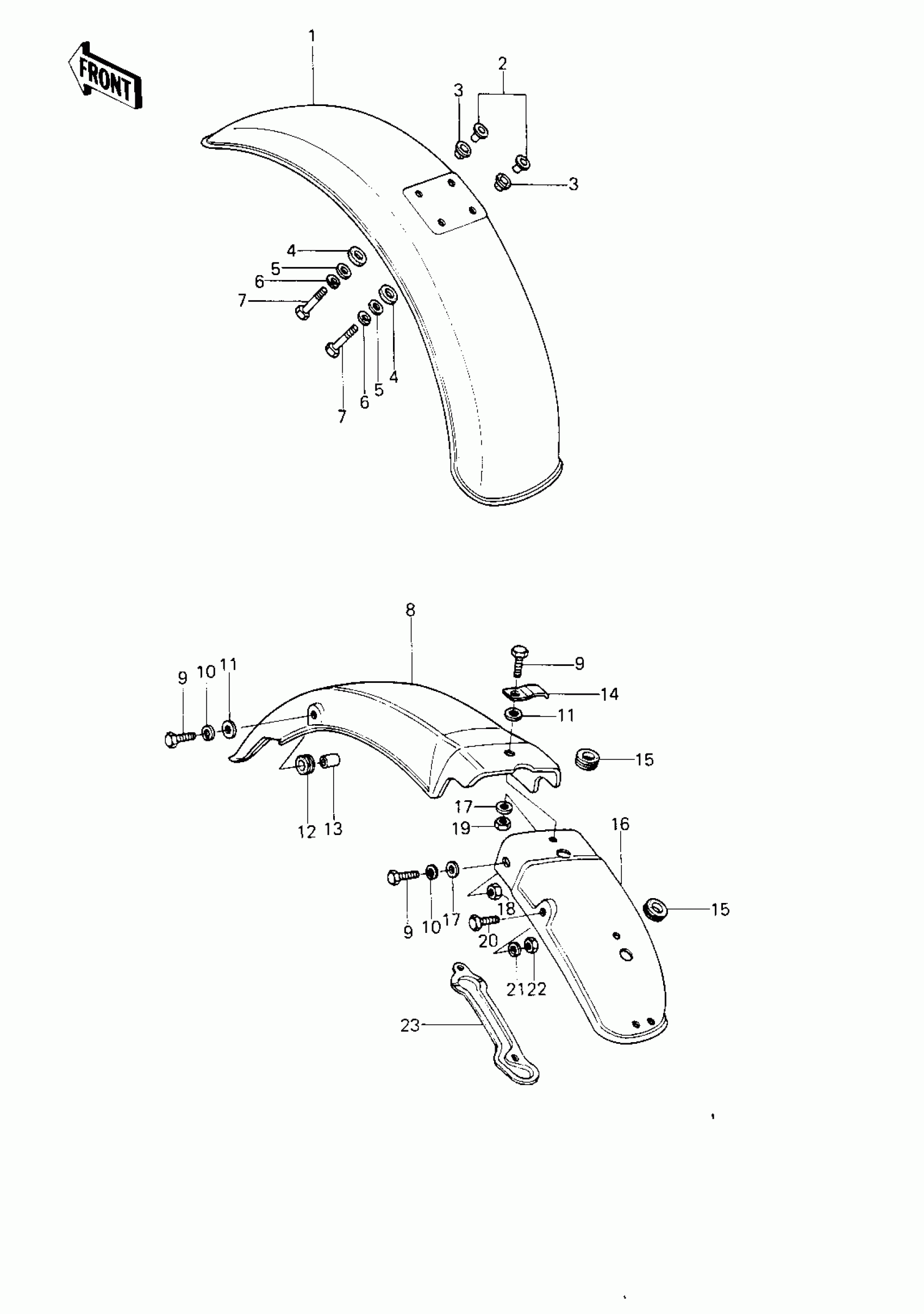

1979 Kawasaki KE250-B3 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1979 Kawasaki KE250-B3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Kawasaki KE250-B3 Fenders Diagram

#

Description
Price
Status
Order Qty

1

FENDER-FR,SILVER

35004-107-1W

Out of stock

1

FENDER-FR,F.RED

35004-1030-6L

Out of stock

2

COLLAR

92027-194

Out of stock

3

DAMPER RUBBER

92075-103

Out of stock

4

DAMPER,FENDER

92075-121

Out of stock

5

WASHER,7X24X1.6

92022-228

Out of stock

6

WASHER SPRING 6MM

461F0600

Out of stock

7

BOLT-UPSET

112G0625

Out of stock

8

FENDER-RR

35022-158

Out of stock

9

BOLT-UPSET

112G0618

Out of stock

10

WASHER SPRING 6MM

461F0600

Out of stock

11

WASHER,6.5X20X1.6

92022-125

Out of stock

12

DAMPER RUBBER

92075-105

Out of stock

13

COLLAR

92027-103

Out of stock

14

CLIP WIRING HARNESS

35024-002

Out of stock

15

GROMMET,TAIL LAMP WIRE

92071-079

Out of stock

16

FENDER-RR,SILVER

35022-159-1W

Out of stock

16

FENDER-RR,F.RED

35022-159-B1

Out of stock

17

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

18

NUT 6MM

311B0600

Out of stock

19

NUT,LOCK 6MM

92017-014

Out of stock

20

BOLT 8X38

92001-1405

Out of stock

21

WASHER SPRING 8MM

461F0800

Out of stock

22

NUT,8MM

311B0800

Out of stock

23

GUIDE,REAR FENDER

35021-007

Out of stock
