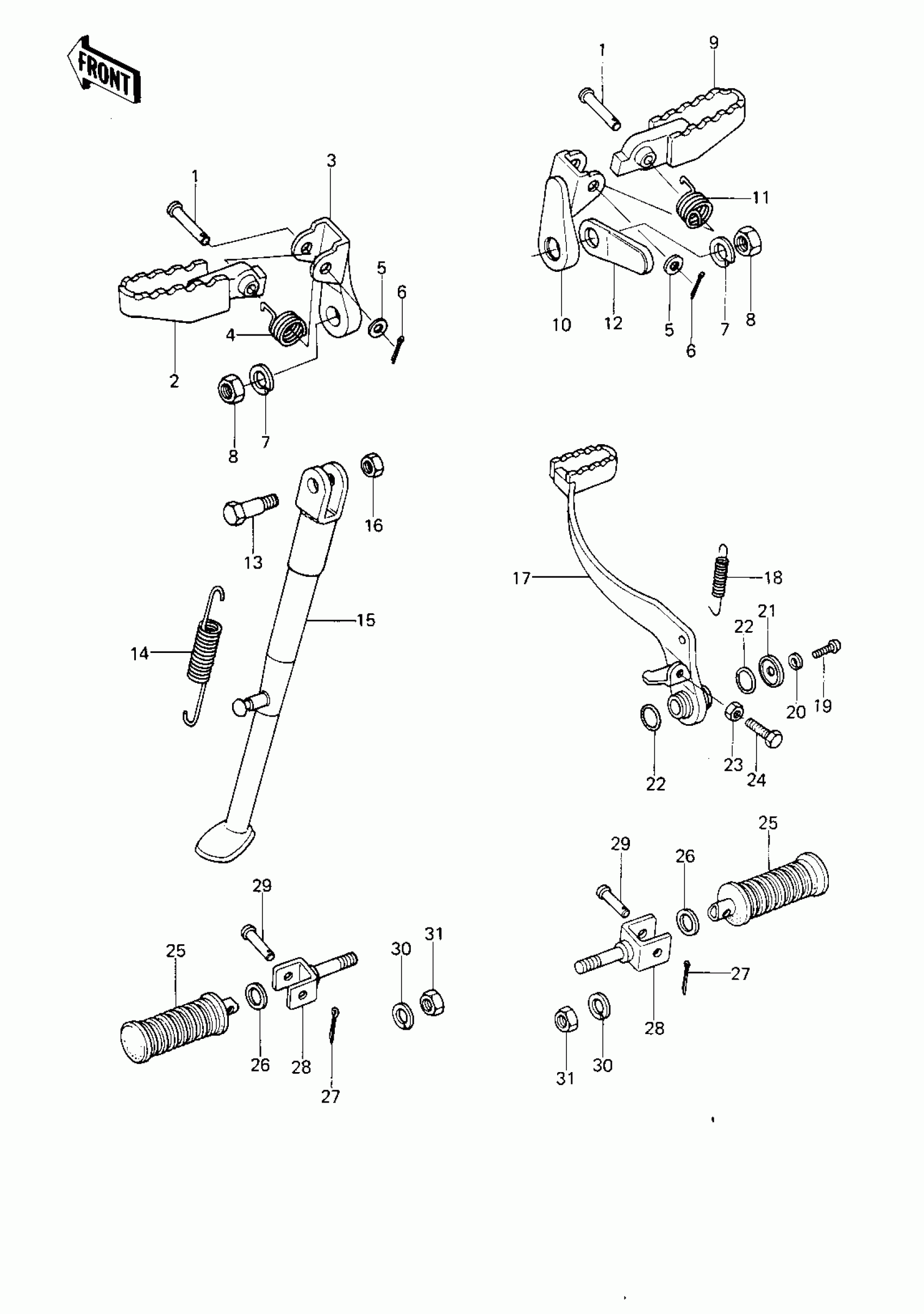

Kawasaki KE250-B3 FOOTRESTS/STAND/BRAKE PEDAL Diagram
#
Description
Price
1
PIN,8X35.5
92043-115
Unavailable
2
STEP,FOOTREST,L.H
34028-037
Unavailable
3
HOLDER,FOOTREST,L.H
34003-067
Unavailable
4
SPRING,L.H,FOOTREST
92081-1254
Unavailable
5
WASHER PLAIN 8MM
410B0800
Unavailable
6
PIN COTTER 2.5X16
550D2516
Unavailable
7
WASHER SPRING 14MM
461F1400
Unavailable
8
NUT-HEX-FINE,14MM
315B1400
Unavailable
9
STEP,FOOTREST,R.H
34028-038
Unavailable
10
HOLDER,FOOTREST,R.H
34003-068
Unavailable
11
SPRING,R.H,FOOTREST
92081-1255
Unavailable
12
PLATE,FOOTREST
13169-1018
Unavailable
13
BOLT,SIDE STAND
92003-157
Unavailable
14
SPRING,STAND
34025-008
Unavailable
15
STAND-SIDE
34024-064
Unavailable
16
NUT-HEX-FINE,10MM
315B1000
Unavailable
17
PISTON,STD
13001-072
Unavailable
18
SPRING BRAKE PEDAL
43005-032
Unavailable
19
SCREW PAN HEAD 6X12
220B0612
Unavailable
20
WASHER SPRING 6MM
461F0600
Unavailable
21
WASHER,PLAIN,6MM
92022-284
Unavailable
22
O RING,16MM
670B2016
Unavailable
23
NUT 6MM
311B0600
Unavailable
24
BOLT-HEX HEAD,6X32
110N0632
Unavailable
25
RUBBER,FOOTREST
92076-027
Unavailable
26
WASHER-PLAIN (OPT)
92022-199
Unavailable
27
PIN-COTTER,2.0X12
550D2012
Unavailable
28
BRACKET,REAR FOOTREST
34029-011
Unavailable
29
PIN,6X28
92043-1464
Unavailable
30
WASHER SPRING 10MM
461F1000
Unavailable
31
NUT-HEX-FINE,10MM
314B1000
Unavailable
