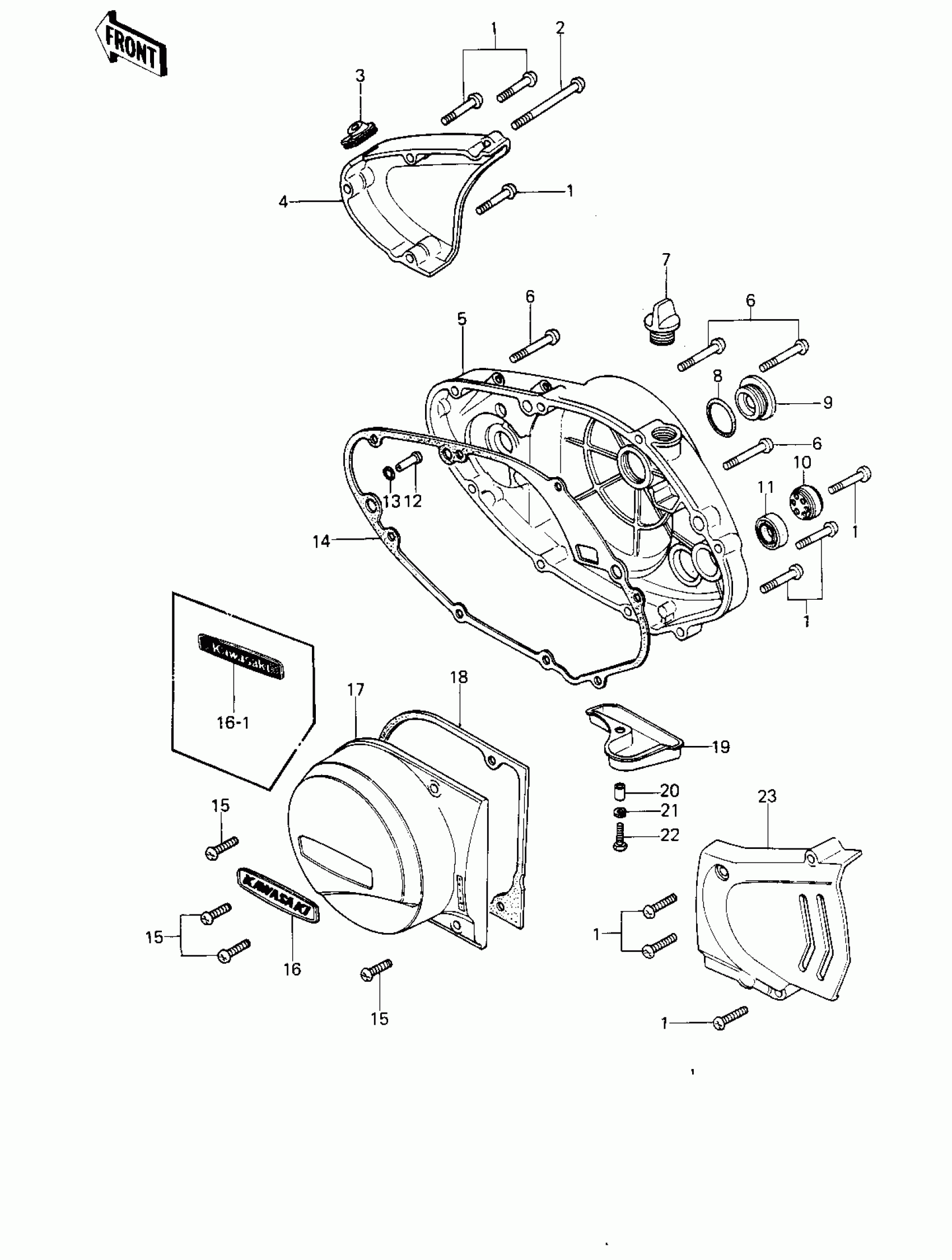

Kawasaki KE250-B3 ENGINE COVERS Diagram
#
Description
Price
1
SCREW PAN HEAD 6X30
220B0630
Unavailable
2
SCREW PAN HEAD 6X70
220B0670
Unavailable
3
GROMMET
92071-097
Unavailable
4
COVER,OIL PUMP
14030-070-2H
Unavailable
5
COVER,R.H.ENGINE
14032-118-2H
Unavailable
6
SCREW PAN HEAD 6X40
220B0640
Unavailable
7
CAP-OIL FILLER
16115-018
Unavailable
8
RING-O,27.7X2.4
92055-091
Unavailable
9
PLUG,30X8
92067-024
Unavailable
10
GAUGE,OIL LEVEL
52015-004
Unavailable
11
SEAL-OIL,SB20285
92049-012
Unavailable
12
VALVE-CHECK
16128-006
Unavailable
13
"0" RING,CHECK VALVE
92055-037
Unavailable
14
GASKET,R.H.ENGINE COV
14046-036
Unavailable
15
SCREW PAN HEAD 6X22
220B0622
Unavailable
16
EMBLEM,ENGINE COVER
56018-1032
Unavailable
16-1
EMBLEM,ENGINE COVER
56018-1032
Unavailable
17
COVER,L.H.ENGINE
14031-096-2H
Unavailable
18
GASKET,L.H.ENGINE COV
14045-030
Unavailable
19
COVER,RELEASE
14036-007
Unavailable
20
COLLAR
92027-241
Unavailable
21
WASHER SPRING 6MM
461F0600
Unavailable
22
BOLT 6X22
112B0622
Unavailable
23
COVER,CHAIN CASE
14026-036-2H
Unavailable
