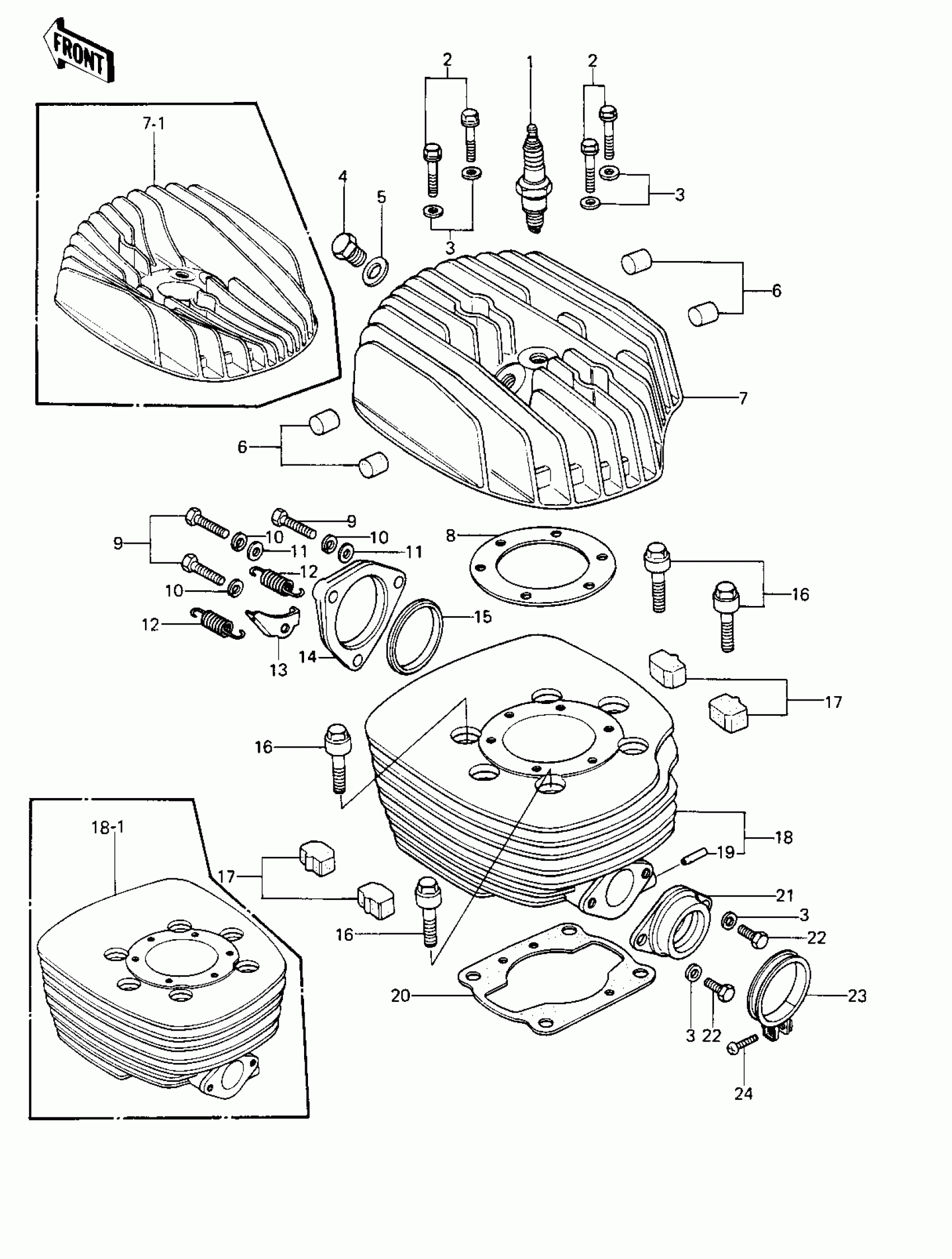

Kawasaki KE250-B3 CYLINDER HEAD/CYLINDER Diagram

#

Description

Price

1

SPARK PLUG B8ES

B8ES

Unavailable

2

BOLT

92001-1578

Unavailable

3

WASHER PLAIN 8MM

410B0800

Unavailable

4

PLUG,CYLINDER HEAD

92067-023

Unavailable

5

GASKET-CYL HEAD PLUG

92065-068

Unavailable

6

DAMPER,13X13.8

92075-075

Unavailable

6

DAMPER,13X13.8

92075-075

Unavailable

7

HEAD,CYLINDER

11001-108-21

Unavailable

7-1

HEAD,CYLINDER,F.BLACK

11001-1010

Unavailable

8

GASKET,CYLINDER HEAD

11004-075

Unavailable

9

BOLT,HEX HEAD,6X35

92001-164

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

WASHER PLAIN 6MM

411B0600

Unavailable

12

SPRING-CONNECTOR

18071-003

Unavailable

13

BRACKET,MUFFLER SPRNG

18061-059

Unavailable

14

HOLDER,EXHAUST

18069-062

Unavailable

15

GASKET,EXHAUST HOLDER

18067-021

Unavailable

16

BOLT,CYLINDER,10X40

92003-217

Unavailable

17

DAMPER

92075-304

Unavailable

18

CYLINDER,ELECTRO-FUSE

11005-157-21

Unavailable

18-1

CYLINDER,ENG,F.BLACK

11005-1021

Unavailable

19

NOZZLE

92062-009

Unavailable

20

GASKET,CYLINDER BASE

11009-045

Unavailable

21

HOLDER-CARBURETOR

16065-011

Unavailable

22

BOLT, HEX HEAD, 8 X 20

110B0820

Unavailable

23

CLAMP

92037-200

Unavailable

24

SCREW-PAN-CROS,5X25

220B0525

Unavailable
