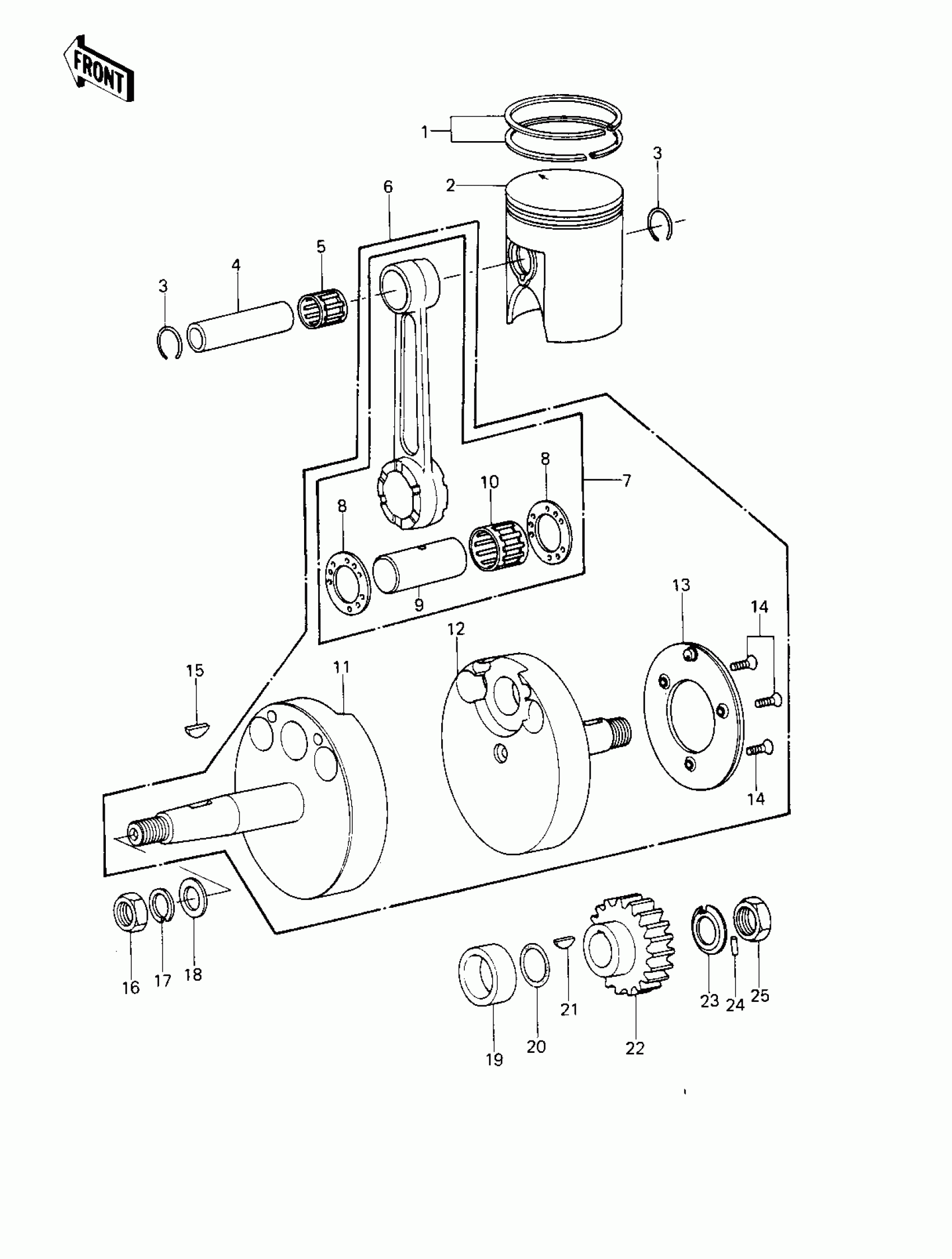

Kawasaki KE250-B3 CRANKSHAFT/PISTON Diagram

#

Description

Price

1

RING SET,PISTON,S.T.D

13008-5002

Unavailable

2

PISTON

13001-1017

Unavailable

2

PISTON

13001-1017

Unavailable

3

CIRCLIP-PISTON PIN

92036-015

Unavailable

4

PIN-PISTON

13002-033

Unavailable

5

BRG,N,KBK18X22X21.8X2

13033-037

Unavailable

6

CRANK & CONROD ASSY

13036-051

Unavailable

7

CONNECTING ROD SET

13044-5001

Unavailable

8

SPACER

92026-1241

Unavailable

9

CRANK PIN

13035-031

Unavailable

10

BEARING,BIG END NEEDL

13034-049

Unavailable

11

CRANKSHAFT,L.H

13037-071

Unavailable

12

CRANKSHAFT,R.H.

13038-059

Unavailable

13

OIL RECEIVER,CRANKSFT

13045-011

Unavailable

14

SCREW OVL CNTSNK 5X10

92012-002

Unavailable

15

KEY,WOODRUFF

92038-001

Unavailable

16

NUT 14MM

92015-043

Unavailable

17

WASHER SPRING 14MM

461F1400

Unavailable

18

WASHER-PLAIN,14MM

92022-172

Unavailable

19

COLLAR-CRANKSHAFT

92027-144

Unavailable

20

O RING,20MM

670B2020

Unavailable

21

WOODRUFF KEY

510A5100

Unavailable

22

GEAR,PRIMARY 22T

13121-029

Unavailable

23

WASHER,LOCK,18MM

92022-1231

Unavailable

24

PIN,DOWEL,2.5X14.8

92042-051

Unavailable

25

NUT,18MM

92015-019

Unavailable
