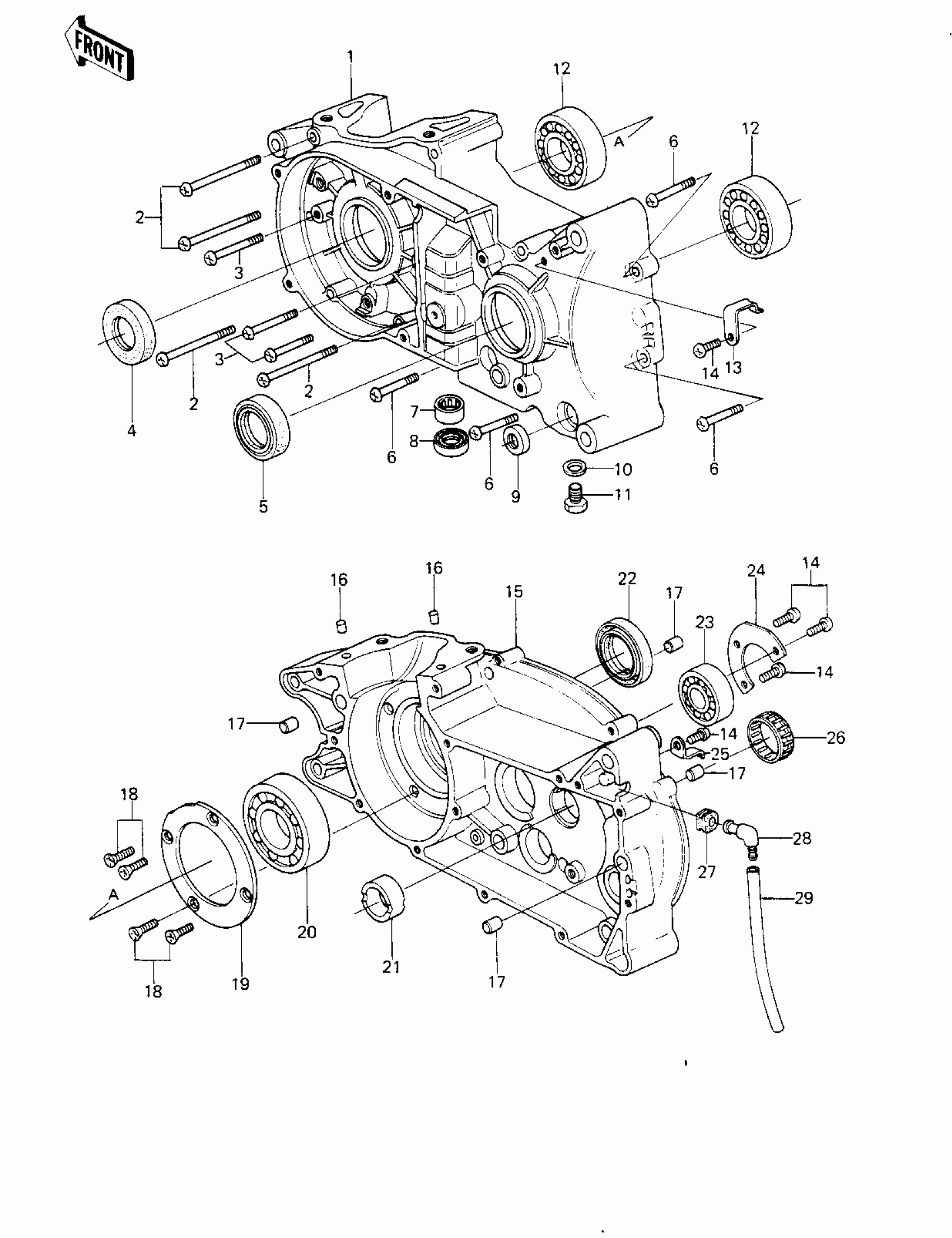

Kawasaki KE250-B3 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE,L.H,AL SHOT
14002-127-2J
Unavailable
2
SCREW PAN HEAD 6X65
220B0665
Unavailable
3
SCREW PAN HEAD 6X45
220B0645
Unavailable
4
OIL SEAL,TB25457
653B254507
Unavailable
5
SEAL-OIL,TC32457
92049-1159
Unavailable
6
SCREW PAN HEAD 6X25
220B0625
Unavailable
7
NEEDLE BEARING,HK1612
92046-058
Unavailable
8
SEAL-OIL,TB16267
92051-003
Unavailable
9
SEAL-OIL,TB13225.5
92051-005
Unavailable
10
GASKET,10.5X16X1
92065-058
Unavailable
11
PLUG,DRAIN,10X12
92067-001
Unavailable
12
BEARING-BALL,#6305C3
601B6305
Unavailable
13
CLAMP,OIL PIPE
92037-157
Unavailable
14
SCREW-PAN-CROS,6X14
220B0614
Unavailable
15
CRANKCASE,R.H,AL SHOT
14003-094-2J
Unavailable
16
PIN-DOWEL,6X12
551A0612
Unavailable
17
PIN,DOWEL,10X14
92043-1037
Unavailable
18
SCREW-CSK-CROS,6X16
221B0616
Unavailable
19
HOLDER-CRANK BEARING
14014-019
Unavailable
20
BEARING-BALL
92045-016
Unavailable
21
BUSHING
92028-147
Unavailable
22
OIL SEAL,TB38508
653B385008
Unavailable
24
PLATE,POSITIONING,MSN
14014-039
Unavailable
25
CLAMP,CARBURETOR
92037-1025
Unavailable
26
BEARING,NEEDLE,344012
92046-040
Unavailable
27
GROMMET,BREATHER
92071-042
Unavailable
28
BREATHER ASSY
14069-1001
Unavailable
29
PIPE-BREATHER
92059-061
Unavailable
