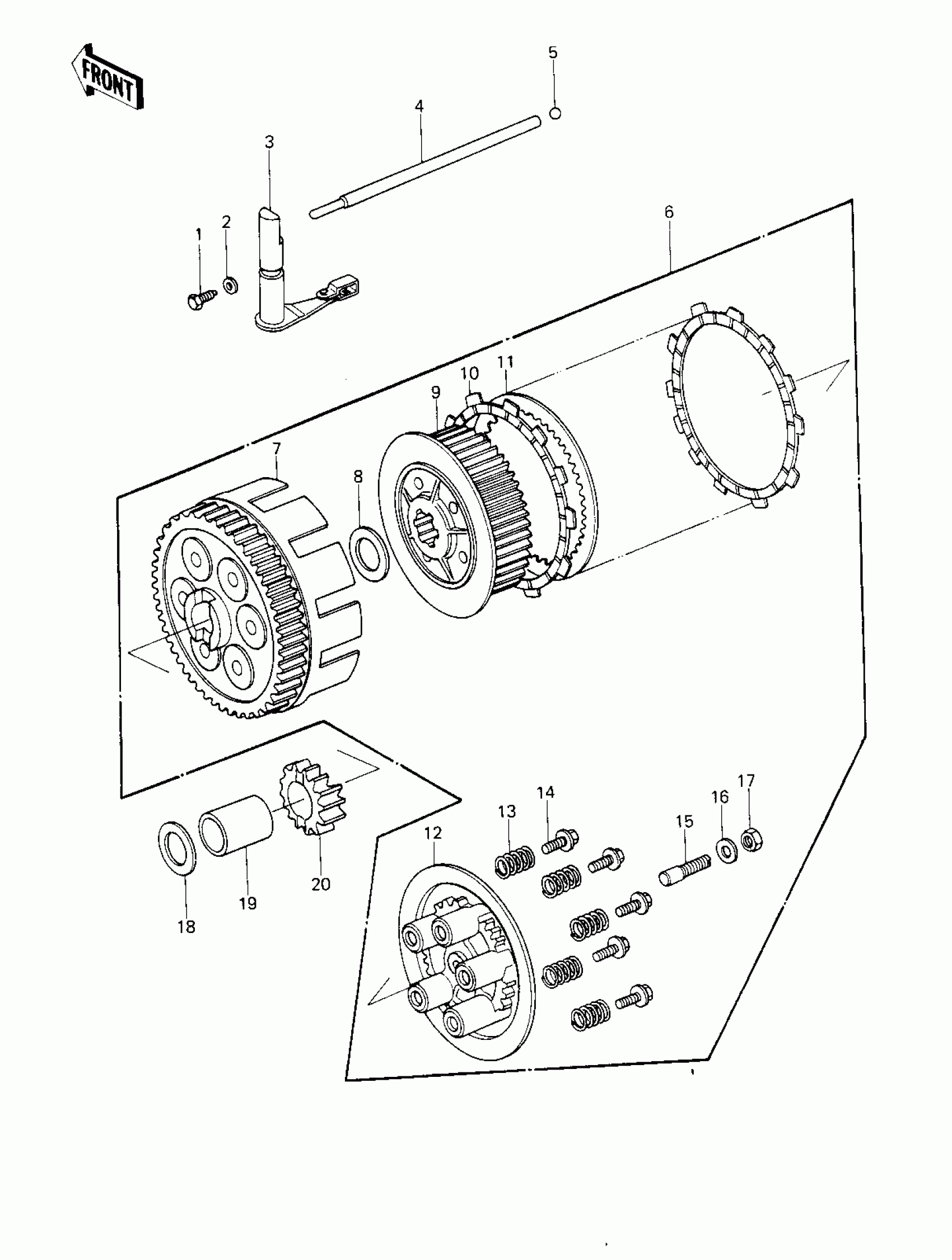

Kawasaki KE250-B3 CLUTCH Diagram
#
Description
Price
1
BOLT,CLUTCH RELEASE
92003-130
Unavailable
2
GASKET,6X14X0.8
92065-092
Unavailable
3
LEVER,CLUTCH RELEASE
13102-026
Unavailable
4
ROD,CLUTCH PUSH
13116-034
Unavailable
5
BALL-STEEL,11/32"
600A1100
Unavailable
6
CLUTCH-ASSY
13081-086
Unavailable
7
HOUSING,CLUTCH
13095-055
Unavailable
8
WASHER,CLUTCH THRUST
92022-282
Unavailable
9
HUB,CLUTCH
13087-044
Unavailable
10
PLATE,CLUTCH FRICTION
13088-041
Unavailable
11
PLATE-CLUTCH,T=2.0
13089-1005
Unavailable
12
PLATE-CLUTCH OPERATIN
13187-1009
Unavailable
13
SPRING,CLUTCH
92081-155
Unavailable
14
BOLT,FLANGED,6X18
92001-1066
Unavailable
15
SCREW,SLOTTED,8X35
92014-017
Unavailable
16
WASHER,PLAIN,8M/M
92022-063
Unavailable
17
NUT-HEX-SMALL,8MM
318B0800
Unavailable
18
WASHER,20.5X34X2
92022-031
Unavailable
19
BUSHING,CLUTCH
92028-150
Unavailable
20
PINION,KICK GEAR 16T
13075-011
Unavailable
