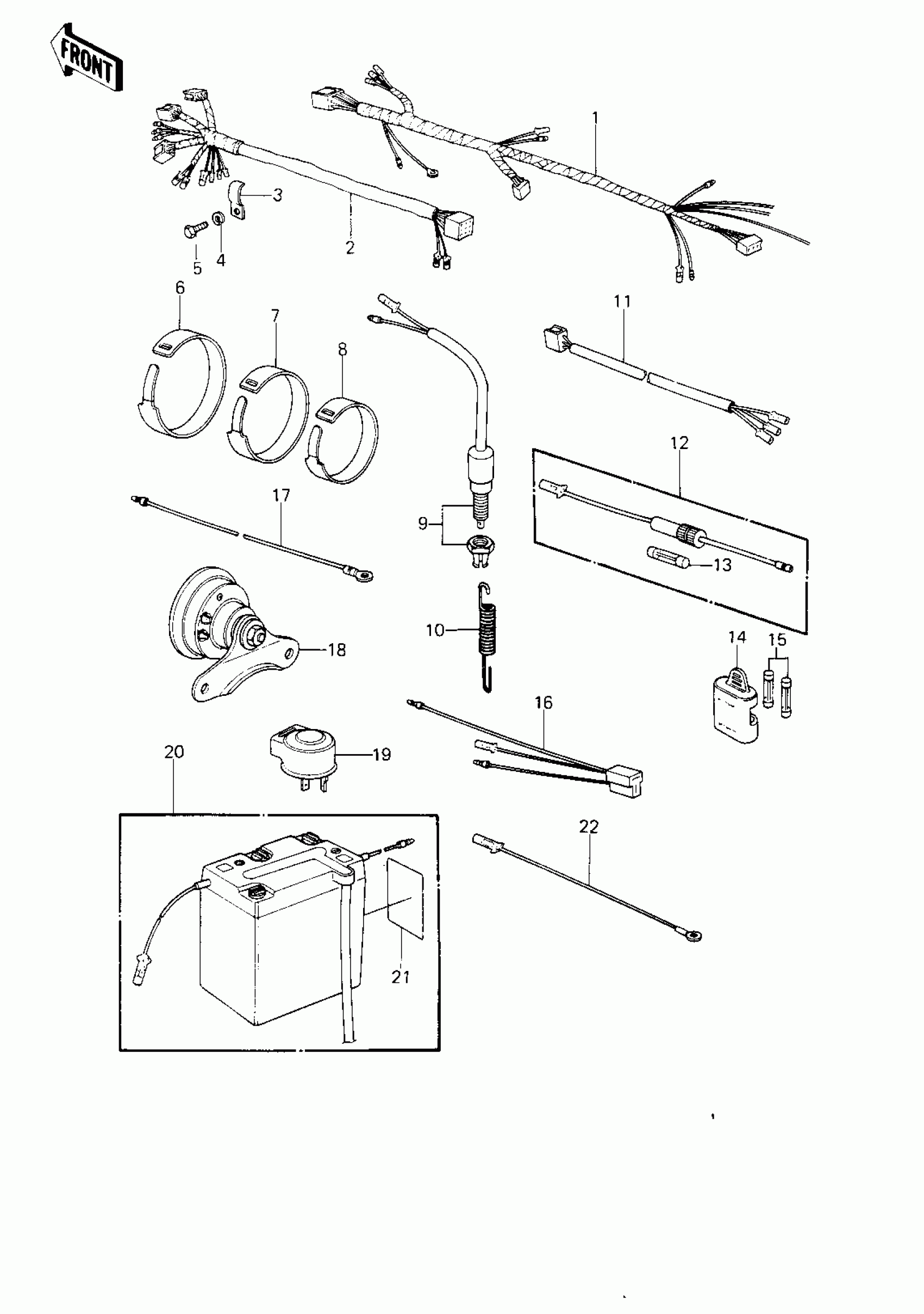

Kawasaki KE250-B3 CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description

Price

1

WIRING HARNESS,MAIN

26001-141

Unavailable

2

WIRING HARNESS,HEAD

26002-061

Unavailable

3

CLAMP-WIRE HARNESS

92037-086

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

BOLT-UPSET,6X12

112G0612

Unavailable

6

BAND,L=218

92072-032

Unavailable

7

BAND,L=149

92072-031

Unavailable

8

BAND,L=123

92072-030

Unavailable

9

SWITCH,BRAKE LAMP

27010-025

Unavailable

10

SPRING,BRAKE LAMP SWITCH

27011-006

Unavailable

11

HARNESS,TAIL LAMP

26001-1007

Unavailable

12

FUSE ASSY

26004-025

Unavailable

13

FUSE 15A

26006-007

Unavailable

14

HOLDER-SPARE FUSE

26016-004

Unavailable

15

FUSE 15A

26006-007

Unavailable

16

WIRE,RECTIFIER LEAD

26011-072

Unavailable

17

WIRE,GROUND

26011-082

Unavailable

18

HORN

27003-083

Unavailable

19

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable

20

YUA BAT 6N6-1D-2

K26012-034

Unavailable

21

LABEL-WARNING,BATTERY

56040-1036

Unavailable

22

WIRE,LEAD,BATTERY GRO

26011-1009

Unavailable
