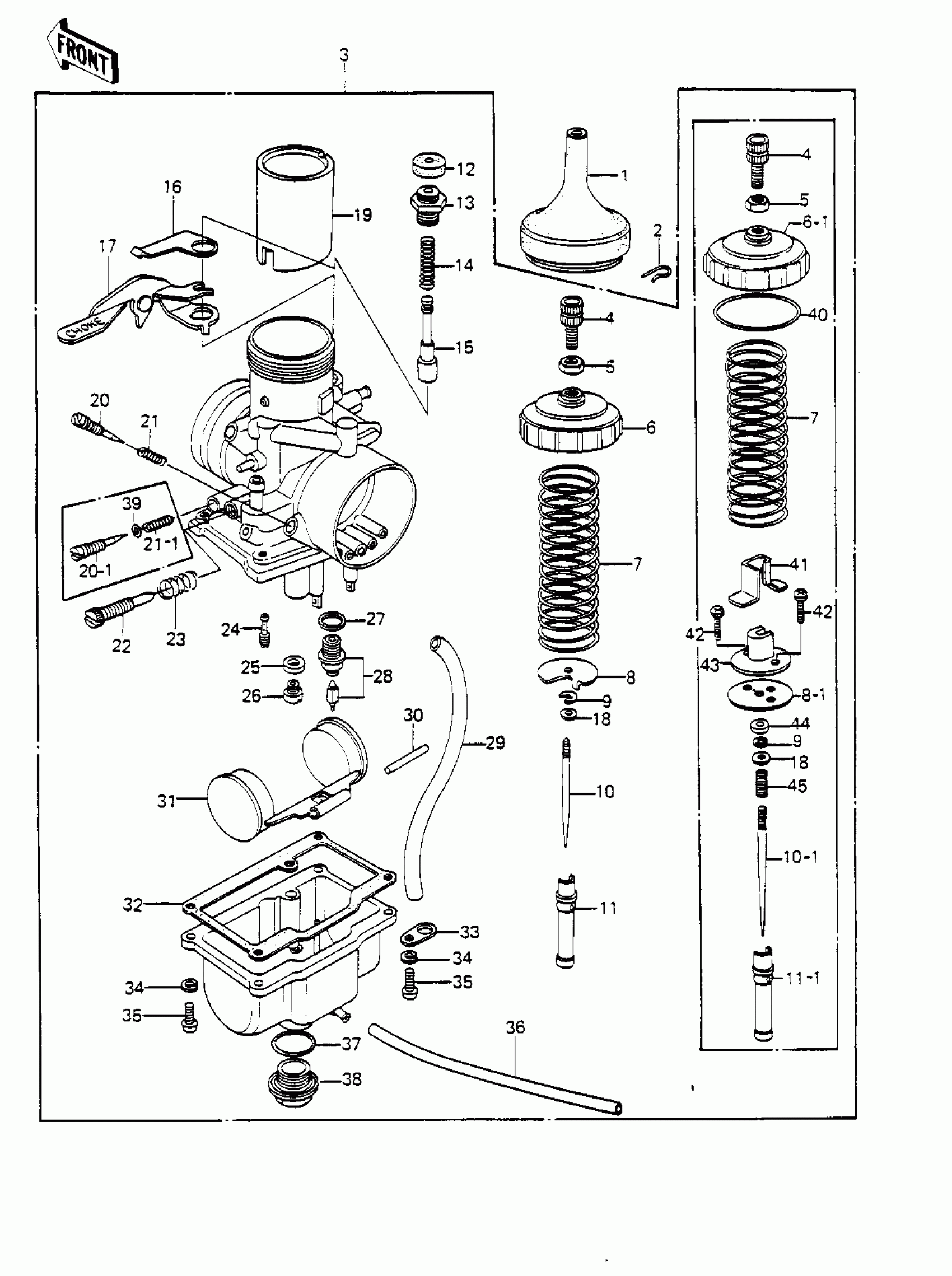

Kawasaki KE250-B3 CARBURETOR Diagram
#
1
BOOTS,CABLE ADJUSTER
49006-1004
Unavailable
1
BOOT,CARBURETOR
49006-1019
Unavailable
2
RING-SNAP
92036-018
Unavailable
3
CARBURETOR ASSY
16001-280
Unavailable
3
CARBURETOR ASSY
16001-1087
Unavailable
4
ADJUSTER,CABLE
16002-014
Unavailable
5
NUT,ADJUST LOCK
16003-006
Unavailable
6
CAP-MIXING CHAMBER
16004-018
Unavailable
6-1
CAP,MIXING CHAMBER
16004-1006
Unavailable
7
SPRING,THROTTLE VALVE
92081-1041
Unavailable
8
SPRING SEAT,THRTL VL
16007-021
Unavailable
8-1
PLATE,THROTTLE VALVE
16007-1011
Unavailable
9
CLAMP,E-TYPE
16008-010
Unavailable
10
JET NEEDLE,5CN9-3
16009-1006
Unavailable
10-1
JET NEEDLE,5CN22-2
16009-1028
Unavailable
11
NEEDLE JET,P-2
16017-1008
Unavailable
11-1
NEEDLE JET,#AP-0
16017-1032
Unavailable
12
CAP,STARTER PLUNGER
16039-015
Unavailable
13
CAP,PLUNGER
16012-016
Unavailable
14
SPRING,STARTER PLUG
16013-008
Unavailable
15
PLUNGER,STARTER
16016-1002
Unavailable
16
SPRING PLATE,STARTER
13169-1052
Unavailable
17
LEVER,STARTER PLUNGER
13168-1008
Unavailable
18
WASHER,THROTTLE VALVE
92022-1024
Unavailable
19
VALVE,THROTTLE,CA2.5
16025-1005
Unavailable
19
VALVE,THROTTLE,CA2.5
16025-1024
Unavailable
20
SCREW
16014-006
Unavailable
20-1
SCREW,PILOT
16014-1010
Unavailable
21
SPRING,PILOT AIR SCREW
16022-007
Unavailable
21-1
SPRING,PILOT SCREW
16022-016
Unavailable
22
SCREW-THROTTLE-ADJ
16021-1005
Unavailable
23
SPRING,THROTTLE STOP SCREW
16022-005
Unavailable
24
JET-PILOT NO 35
92064-023
Unavailable
24
PILOT JET,#A30
92064-1021
Unavailable
25
WASHER,MAIN JET
16034-001
Unavailable
26
MAIN JET,#A97.5R
92063-1035
Unavailable
26
MAIN JET NO 92.5R
92063-068
Unavailable
26
JET-MAIN,#A95R
92063-1031
Unavailable
26
MAIN JET,#A100
92063-1033
Unavailable
26
MAIN JET,#A102.5
92063-1028
Unavailable
26
MAIN JET,#A100
92063-1033
Unavailable
27
WASHER FLOAT VLV SEAT
16029-004
Unavailable
28
VALVE-FLOAT,2.5
16030-005
Unavailable
29
TUBE,3.5X6.5X290,BRTH
92059-1017
Unavailable
30
PIN,FLOAT
16032-003
Unavailable
31
FLOAT
16031-023
Unavailable
32
GASKET,FLOAT CHAMBER
11009-1031
Unavailable
33
PLATE,TUBE CLAMP
13169-1053
Unavailable
34
WASHER SPRING 4MM
461F0400
Unavailable
35
SCREW PAN HEAD 4X16
220B0416
Unavailable
36
TUBE,3X5X300
92059-1755
Unavailable
37
GASKET,MAIN JET COVER
16038-009
Unavailable
38
COVER,MAIN JET
16049-003
Unavailable
39
"O" RING
16038-024
Unavailable
40
"O" RING,MIXING CHAMB
92055-1054
Unavailable
41
COVER,THROTTLE VALVE
14025-1113
Unavailable
42
SCREW,PAN HEAD,3X14
16033-031
Unavailable
43
CONNECTOR
13159-1004
Unavailable
44
COLLAR,THROTTLE VALVE
92027-1103
Unavailable
45
SPRING,JET NEEDLE
92081-1072
Unavailable
