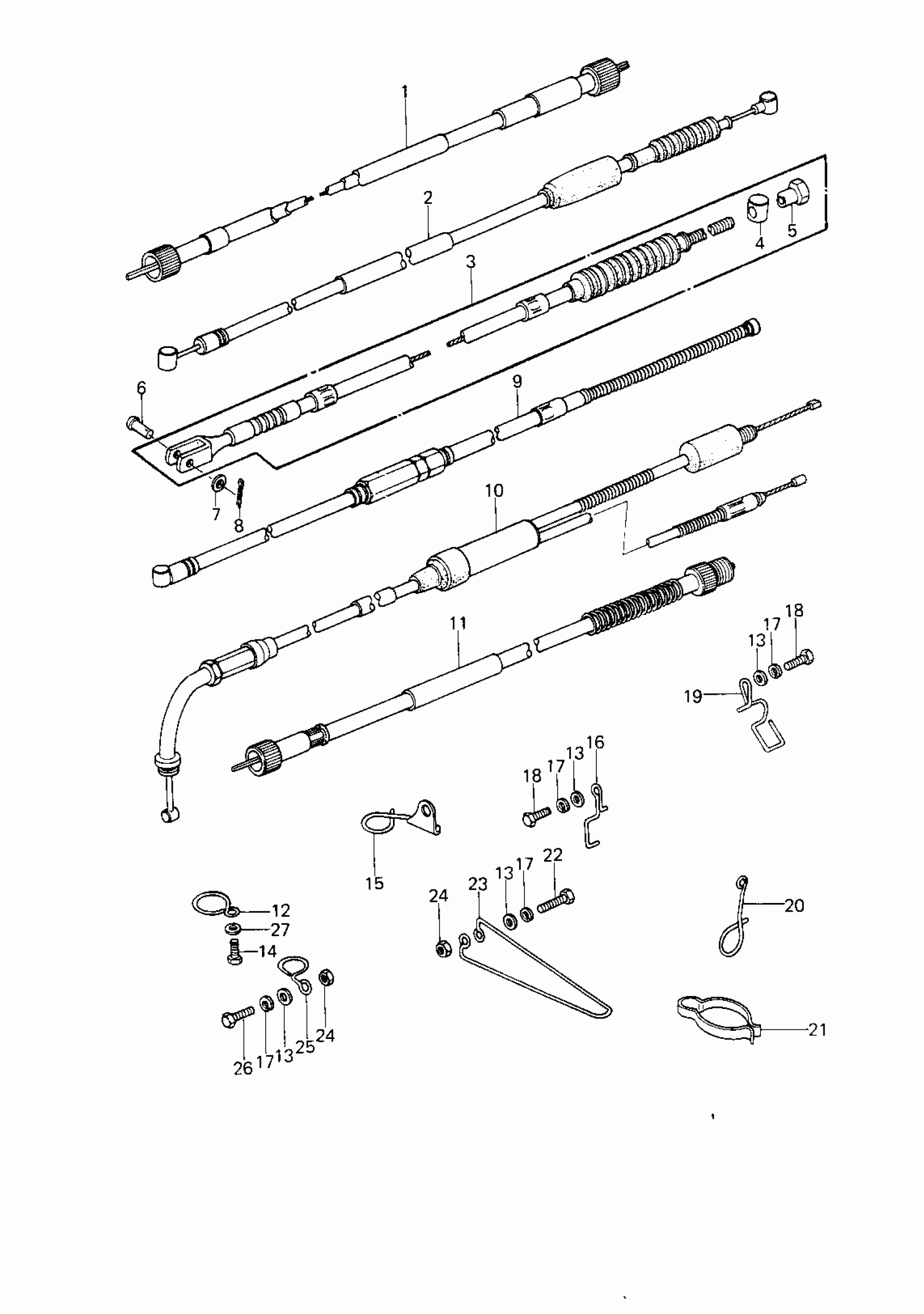

Kawasaki KE250-B3 CABLES Diagram
#
Description
Price
1
CABLE,SPEEDOMETER
54001-055
Unavailable
2
CABLE,FRONT BRAKE
54005-1005
Unavailable
3
CABLE,REAR BRAKE
54005-1008
Unavailable
4
PIN,BRAKE ROD
92043-065
Unavailable
5
NUT,BRAKE ROD
92015-042
Unavailable
6
PIN,DUAL SEAT PIVOT
92043-106
Unavailable
7
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
8
PIN COTTER 2.0X15
550D2015
Unavailable
9
CABLE,CLUTCH
54011-086
Unavailable
10
CABLE,THROTTLE CONTRL
54012-133
Unavailable
10
CABLE,THROTTLE.CONTRL
54012-1047
Unavailable
11
CABLE,TACHOMETER
54018-022
Unavailable
12
CLAMP,CABLE
92037-1034
Unavailable
13
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
14
BOLT-UPSET,6X12
112G0612
Unavailable
15
CLAMP,CABLE
92037-1015
Unavailable
16
CLAMP,CABLE
92037-1019
Unavailable
17
WASHER SPRING 6MM
461F0600
Unavailable
18
BOLT-UPSET 6X14
112B0614
Unavailable
19
CLAMP,CABLE
92037-212
Unavailable
20
CLAMP,CABLE
92037-1016
Unavailable
21
CLAMP
92037-093
Unavailable
22
BOLT-UPSET
112G0625
Unavailable
23
CLAMP,CABLE
92037-1014
Unavailable
24
NUT 6MM
311B0600
Unavailable
25
CLAMP,CABLE
92037-1033
Unavailable
26
BOLT-UPSET
112G0618
Unavailable
27
WASHER PLAIN 6MM
411B0600
Unavailable
