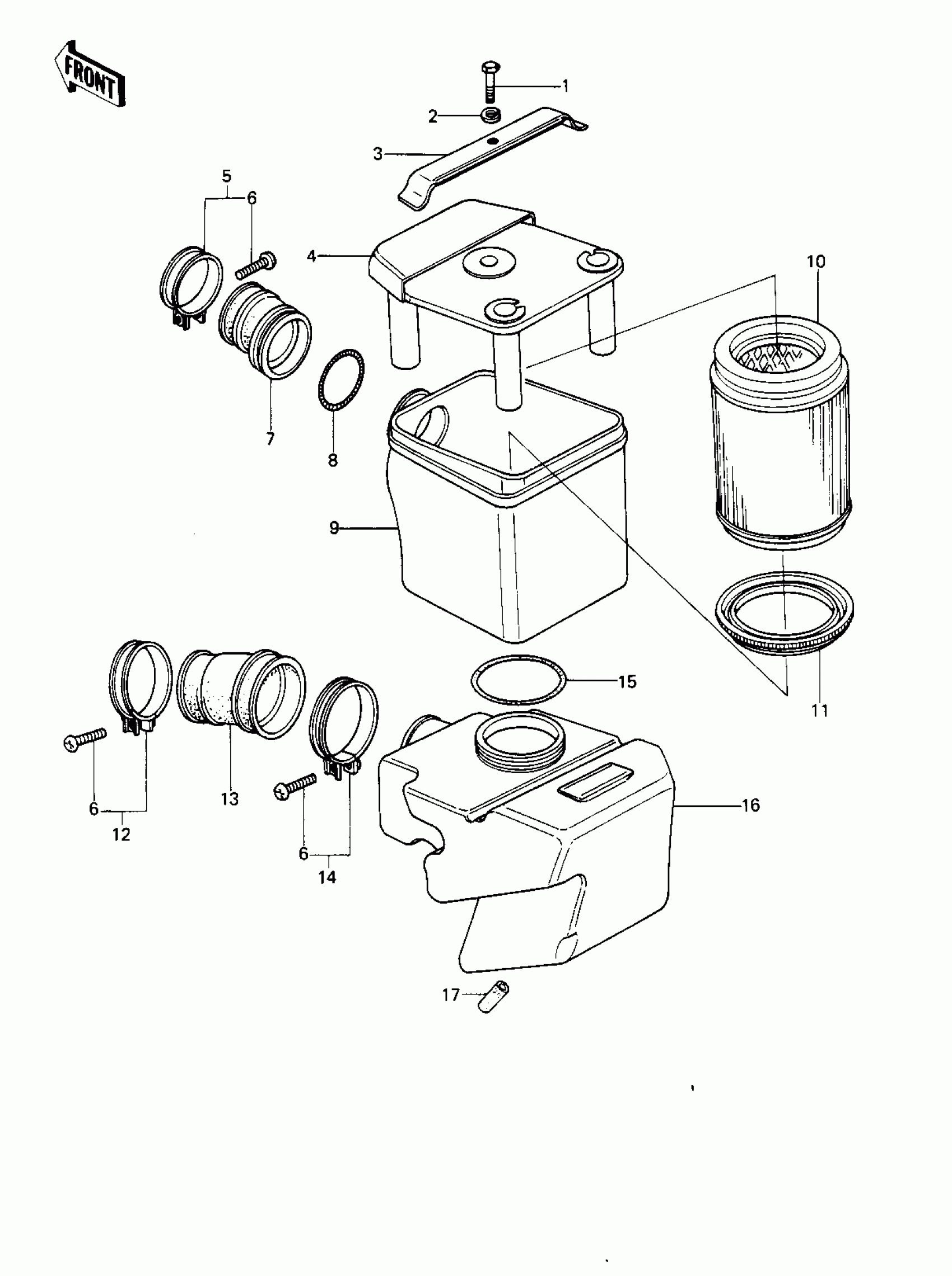

Kawasaki KE250-B3 AIR CLEANER Diagram

#

Description

Price

1

BOLT-UPSET

112G0618

Unavailable

2

WASHER SPRING 6MM

461F0600

Unavailable

3

BRACKET,AIR CLEANER

32070-039

Unavailable

4

CAP,AIR CLEANER

11012-073

Unavailable

5

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

6

SCREW-PAN-CROS,5X25

220B0525

Unavailable

7

CONNECTOR,CLEANER

11026-020

Unavailable

8

SPRING COIL

92081-047

Unavailable

9

BODY,AIR CLEANER,UPPR

11011-062

Unavailable

10

ELEMENT,AIR CLNR

11013-061

Unavailable

11

HOLDER,AIR CLEANER

11033-007

Unavailable

12

CLAMP

92037-200

Unavailable

13

CONNECTOR,CLEANER-CAB

11026-019

Unavailable

14

CLAMP,CARBURETOR

92037-1021

Unavailable

15

"0" RING,AIR CLEAN BD

92055-110

Unavailable

16

BODY ASSY,AIR CLEANER

11038-5001

Unavailable

17

PLUG,AIR CLNR DRAIN

92066-1014

Unavailable
