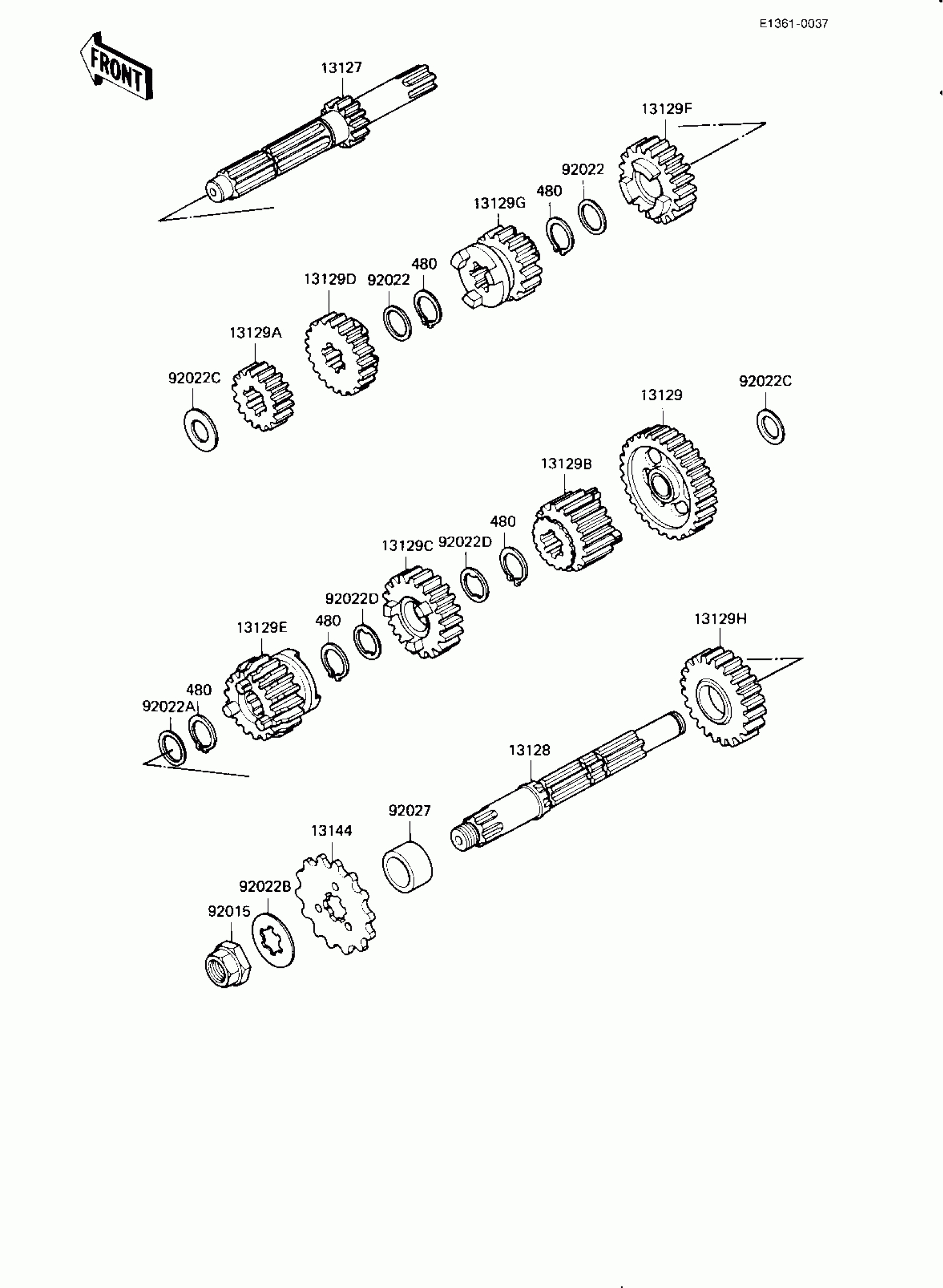

Kawasaki KE175 TRANSMISSION ('82-'83 KE175-D4/D5) Diagram

Description

Price

13127

SHAFT,DRIVE,12T

13127-1006

Unavailable

13128

SHAFT,OUTPUT

13128-1008

Unavailable

13129

LOW GEAR,OUTPUT SHAFT

13129-051

Unavailable

13129A

2ND GEAR,DRIVE,17T

13129-1075

Unavailable

13129B

TOP GEAR,DRIVEN,20T

13129-1134

Unavailable

13129C

3RD GEAR,DRIVEN,22T

13129-1142

Unavailable

13129D

4TH GEAR,DRIVE,20T

13129-1143

Unavailable

13129E

4TH GEAR,DRIVEN,19T

13129-1144

Unavailable

13129F

TOP GEAR,DRIVE,25T

13129-1145

Unavailable

13129G

3RD GEAR,DRIVE,18T

13129-1212

Unavailable

13129H

2ND GEAR OUTPUT 28T

13129-1278

Unavailable

13144

SPROCKET-OUTPUT,14T

13144-1058

Unavailable

92015

NUT,14M/M

92015-1062

Unavailable

92022

WASHER 22MM

92022-106

$4.60

92022A

WASHER,22X28X2

92022-1087

$4.75

92022B

WASHER,SPLINE

92022-1113

Unavailable

92022C

WASHER,THRUST,16.5X28X1

92022-170

$9.28

92022D

WASHER-LOCK

92024-031

$6.42

92027

COLLAR,20X30X15

92027-1083

$13.84

480

CIRCRIP TYPE-C,21MM

480J2100

$5.03
