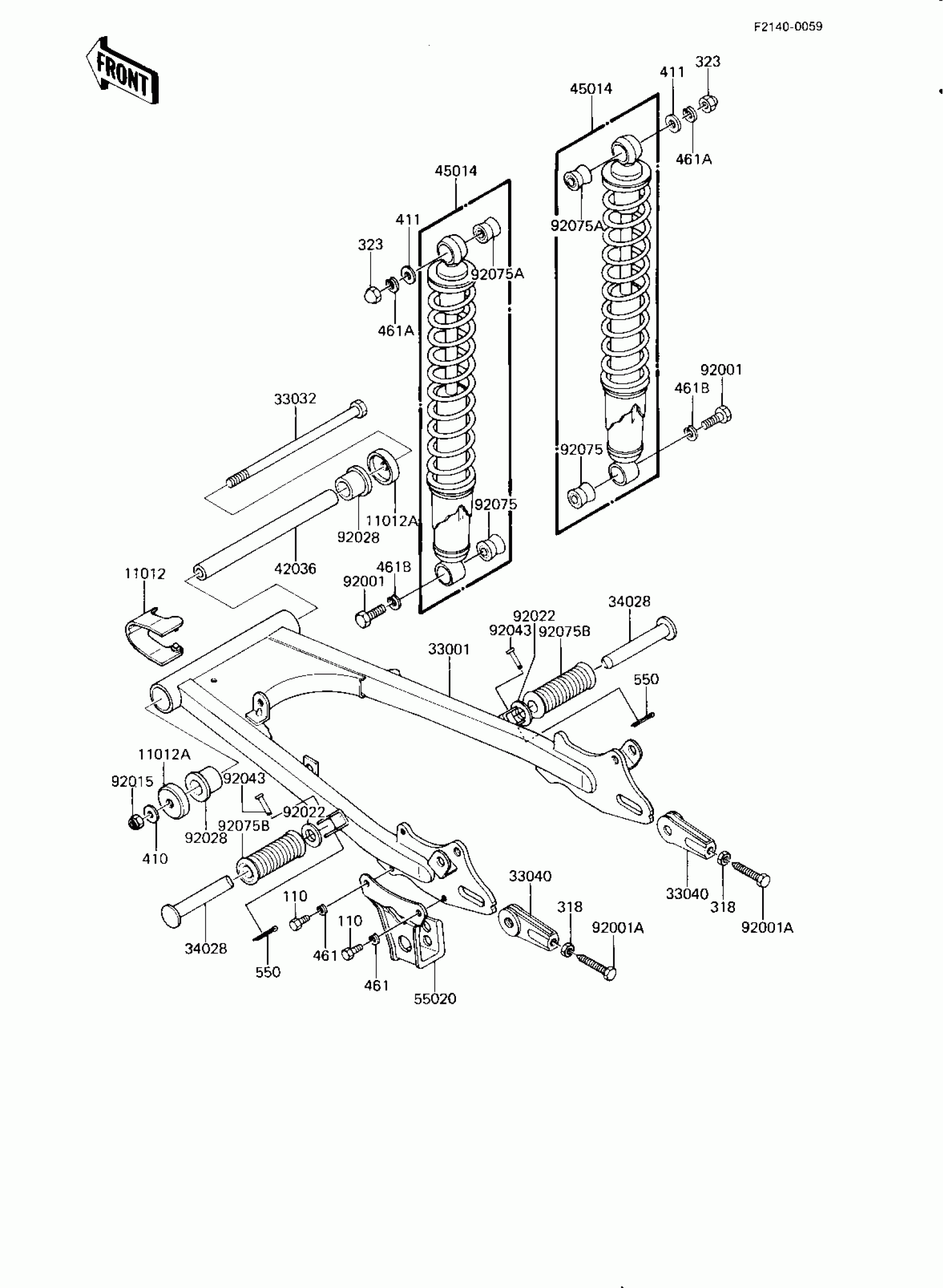

Kawasaki KE175 SWING ARM/SHOCK ABSORBERS ('82-'83 KE175 Diagram

Description

Price

11012

GUARD,CHAIN,FR

55020-1063

Unavailable

11012A

CAP,SWING ARM

11012-1036

Unavailable

33001

SWING ARM

33001-1061

$196.19

33032

SHAFT,SWING ARM

33032-1005

Unavailable

33040

ADJUSTER,CHAIN

33040-1010

Unavailable

34028

STEP,RR

34028-009

$26.11

42036

SLEEVE,SWING ARM

42036-1019

$57.80

45014

SHOCK ABSBR RR

45014-1137

$212.35

55020

GUARD,CHAIN

55020-1026

$29.19

92001

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

92001A

BOLT,8X50

92001-1399

$9.48

92015

NUT-LOCK,12MM

92019-009

$7.29

92022

WASHER-PLAIN (OPT)

92022-199

Unavailable

92028

BUSH,SWING ARM

92028-1027

Unavailable

92043

PIN,6X28

92043-1464

$8.10

92075

BUSHING,SHOCK ABSORBE

92075-1216

$10.02

92075A

BUSHING,SHOCK ABSORBE

92075-1217

$15.31

92075B

RUBBER,REAR FOOTREST

92076-024

$24.87

110

BOLT-UPSET,6X12

112G0612

$1.45

318

NUT-HEX-SMALL,8MM

318B0800

$0.59

323

NUT-CAP-SMALL,8MM

323N0800

$4.60

410

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

411

WASHER PLAIN 8MM

411B0800

$0.93

461

WASHER SPRING 6MM

461F0600

$0.69

461A

WASHER SPRING 8MM

461F0800

$0.40

461B

WASHER SPRING 10MM

461F1000

$0.67

550

PIN COTTER 2.0X15

550D2015

$1.04
