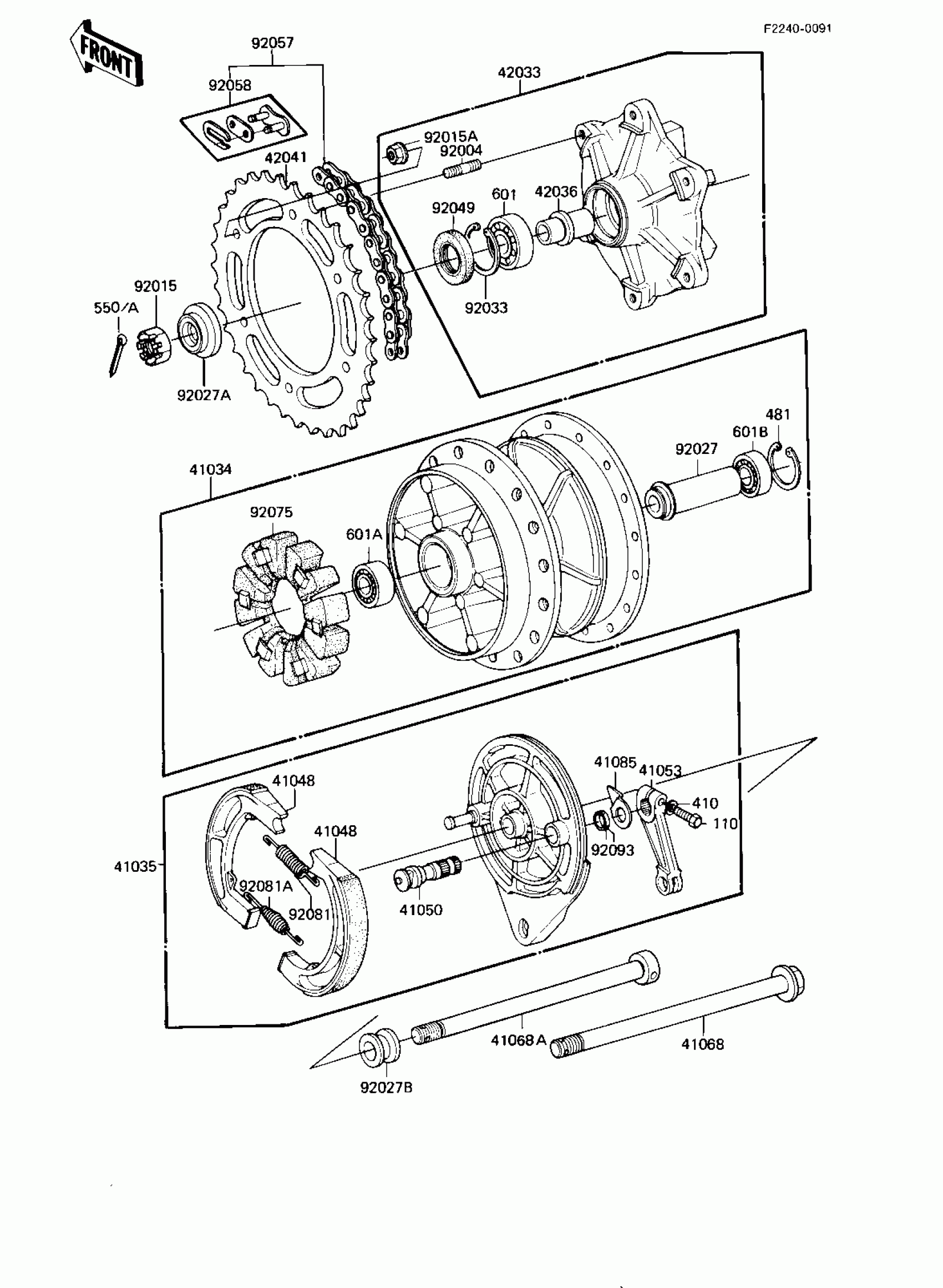

Kawasaki KE175 REAR HUB/BRAKE/CHAIN ('82-'83 KE175-D4/D Diagram

Description

Price

41034

DRUM-ASSY,RR BRK

41034-1015

$304.36

41035

PANEL-ASY,RR BRK

41035-1017

$315.55

41048

SHOE BRAKE

41048-1012

$29.87

41050

CAM,BRAKE,REAR

41050-1011

Unavailable

41053

LEVER,BRAKE CAM,REAR

41053-1013

$52.92

41068A

AXLE,RR,L=266

41068-1103

$82.69

41085

INDICATOR,FR BRK SHOE

41085-017

Unavailable

42033

COUPLING ASSY,RR HUB

42033-1007

$141.32

42036

SLEEVE,RR HUB COUPLIN

42036-1020

Unavailable

42041

SPROCKET,REAR,44T

42041-1050

$79.16

92004

STUD,8X17

92004-1015

$4.99

92015

NUT,CASTLE,14MM

42045-020

$9.91

92015A

NUT,FLANGED,8MM

92015-1022

$0.48

92027

COLLER,REAR BRAKE

92027-1099

$20.44

92027A

COLLAR,REAR AXLE,L.H

92027-1100

$29.20

92027B

COLLAR,REAR AXLE,R.H

92027-1101

$8.06

92033

RING-SNAP,42MM

92033-1041

$6.16

92049

SEAL-OIL,26X42X8

92050-060

$18.15

92057

CHAIN,DR.EK428SHX116L

92057-1096

$129.91

92058

JOINT-CHAIN

92058-1015

Unavailable

92075

DAMPER,SHOCK,RR HUB

92075-1068

$47.86

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92081A

SPRING,BRAKE SHOE

92081-1550

$9.49

92093

SEAL,BRAKE CAM

41051-001

$4.26

110

BOLT-UPSET

112G0625

$3.62

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

550

PIN-COTTER,3.0X25

550D3025

$0.58

601

BEARING-BALL,#6004C3

601B6004

$12.47

601A

BEARING-BALL,#6202C3

601B6202

$8.64

601B

BEARING-BALL,#6202UC3

601B6202U

$20.79
