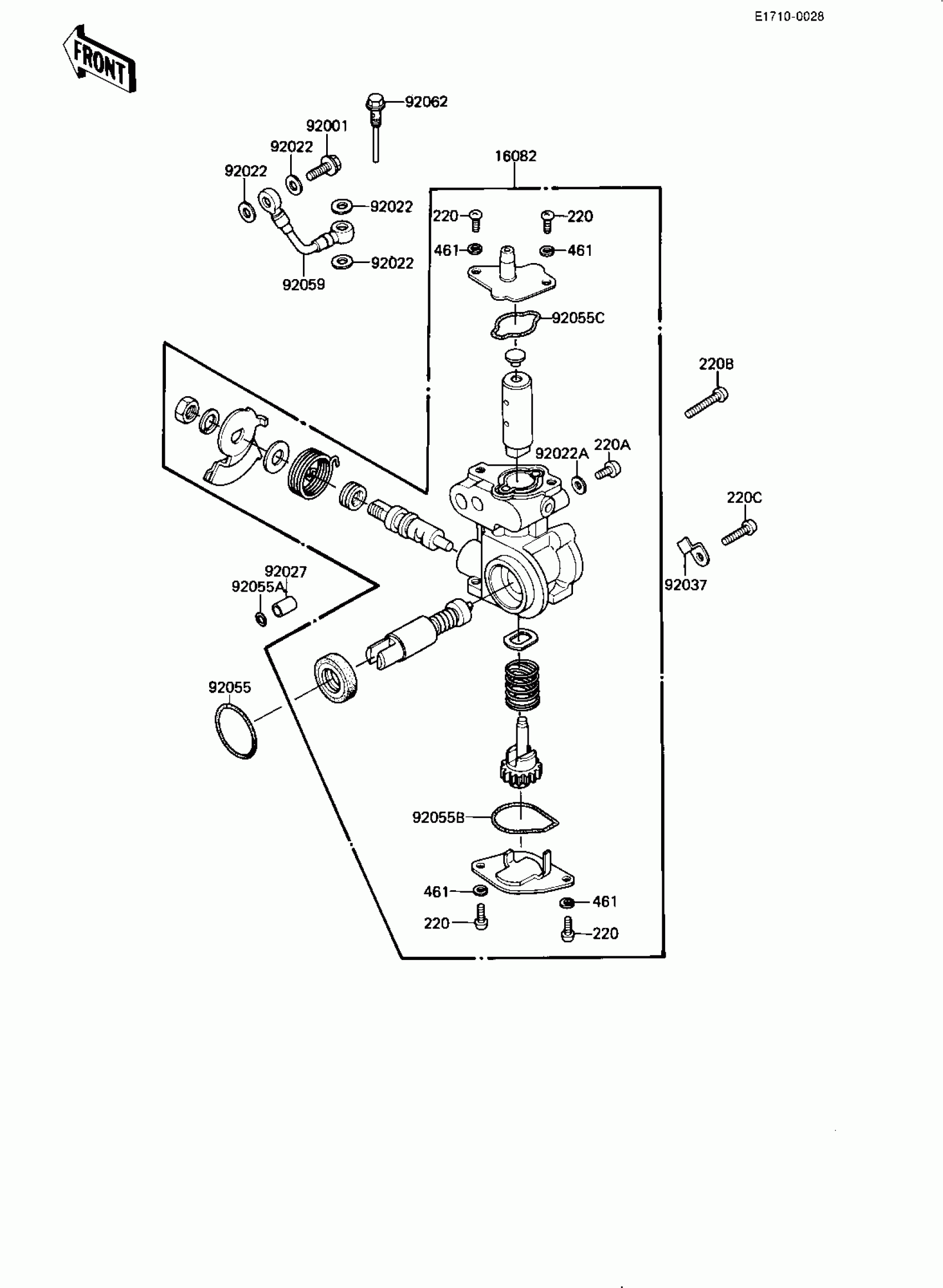

Kawasaki KE175 OIL PUMP ('82-'83 KE175-D4/D5) Diagram

Description

Price

16082

PUMP ASSY,OIL

16082-1006

$333.07

92001

BOLT,BANJO,L=16

92060-013

$4.88

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,AIR VENT

92022-1025

$5.61

92027

COLLAR,2.5X5X9.8

92027-256

$4.92

92037

CLAMP

92037-1080

$3.88

92055

RING-O,19.5X1.5

92055-055

$3.29

92055A

O RING,5MM

670B1505

$2.49

92055B

"O" RING,OIL PUMP LOW

92055-1015

$12.73

92055C

"0" RING,OIL PUMP,UPP

92055-1016

$11.37

92059

PIPE,OIL

92059-1090

Unavailable

92062

NOZZLE,

92062-1008

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW PAN HEAD 5X8

220B0508

Unavailable

220B

SCREW-PAN-CROS

220B0520

$0.62

220C

SCREW-PAN-CROS,6X16

220B0616

Unavailable

461

WASHER SPRING 3MM

461F0300

Unavailable
