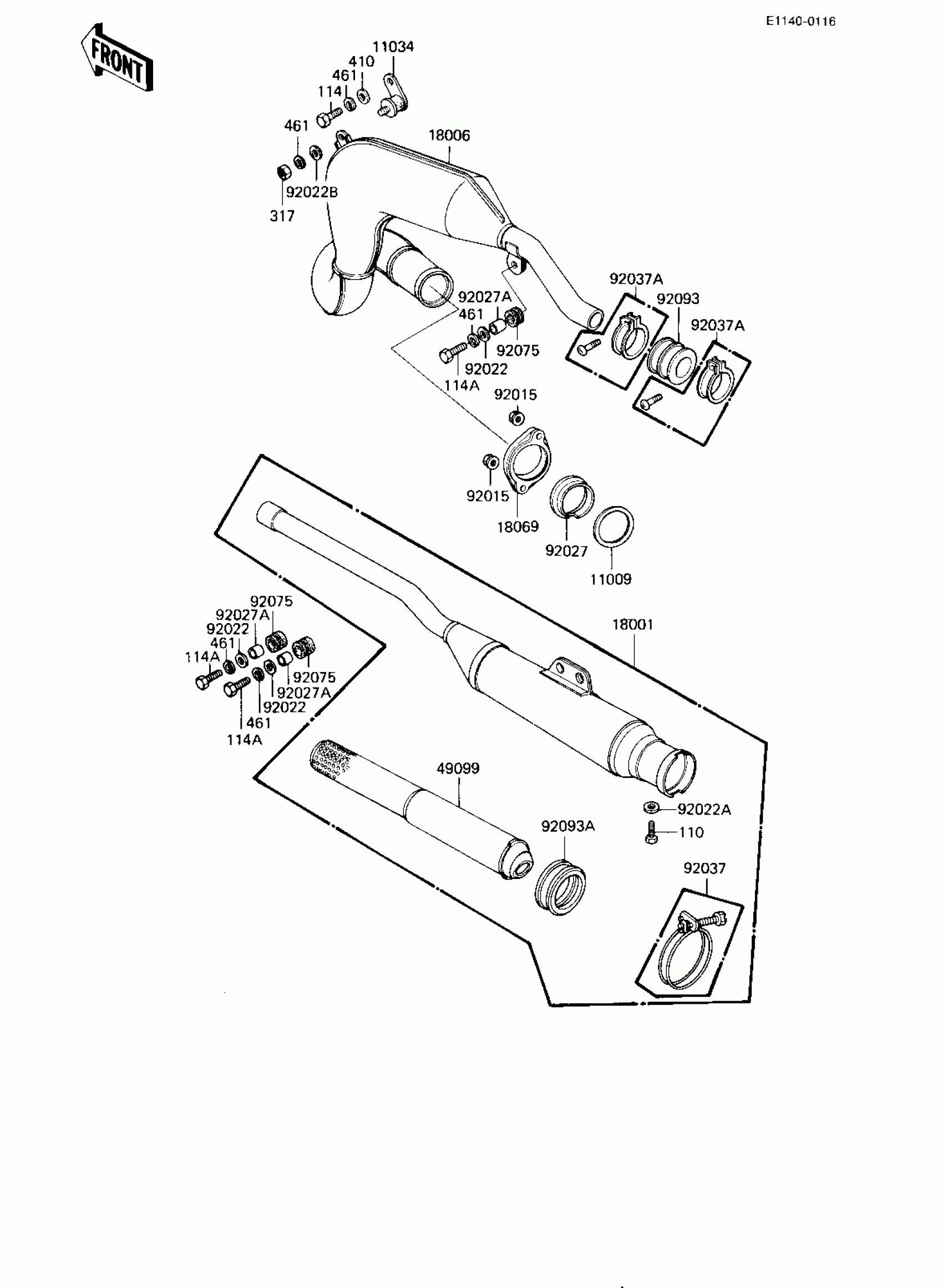

Kawasaki KE175 MUFFLER ('82-'83 KE175-D4/D5) Diagram

Description

Price

11009

GASKET EXHAUST PIPE

18067-008

$18.05

11034

BRACKET,MUFFLER

18061-060

Unavailable

18001

MUFFLER ASSY

18001-1153

$388.67

18006

BODY,MUFFLER

18006-1050

$356.97

18069

HOLDER,EXHAUST

18069-049

$42.68

49099

BAFFLE PIPE,MUFFLER

49099-1006

$105.58

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92022

WASHER,8X26X2.3

92022-1564

$4.31

92022A

WASHER OIL PUMP BANJO

92022-077

$3.99

92022B

WASHER,8.5X20X1.6

92022-1561

$4.31

92027

INSERT,EXHAUST HOLDER

18070-007

Unavailable

92027A

COLLAR

92027-102

$1.08

92037

CLAMP MUFFLER

92037-1190

$8.17

92037A

CLAMP,CARBURETOR HOLD

92037-1242

$5.34

92075

DAMPER RUBBER-MUFFLER

18063-005

$5.21

92093

SEAL,EXHAUST PIPE

92093-1012

Unavailable

92093A

DUST SHIELD,MUFFLER

92093-1013

Unavailable

110

BOLT HEX HEAD 6X8

110B0608

$0.18

114

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

114A

BOLT HEX HEAD 8X28

114G0828

$3.71

317

NUT-HEX-SMALL,8MM

317B0800

$0.67

410

WASHER PLAIN 8MM

410B0800

$0.93

461

WASHER SPRING 8MM

461F0800

$0.40
