Description

Price

1

BOLT-UPSET

112G0625

$3.62

2

WASHER SPRING 6MM

461F0600

$0.69

3

SPEEDOMETER,KM/H&MPH

25005-1049

$359.15

3

SPEEDOMETER,KM/H

25005-1050

$290.84

4

COVER,METER

14025-1075

Unavailable

5

SOCKET ASSY,SPEEDOMET

25010-021

$20.14

6

DAMPER,METER

25019-023

$4.29

7

NUT-HEX

311B0500

$0.47

8

BOLT,HEX HEAD,6X14

92003-204

$3.86

9

WASHER,6M/M,METER

92022-1039

$4.22

10

WASHER,5.2X16X1.2

92022-263

$1.66

11

BULB,6V 3W,CLEAR

92069-053

$4.18

12

DAMPER,METER

92075-1102

Unavailable

13

BRACKET,METER

25008-1009

$44.94

14

NUT 6MM

311B0600

$0.93

15

NUT,FLANGED,6MM

92015-1078

Unavailable

16

WASHER,6.5X20X1.6

92022-125

$1.40

17

COLLAR

92027-241

$6.57

18

DAMPER

92075-024

$4.39

19

DAMPER RUBBER,RR FENR

92075-209

$4.69

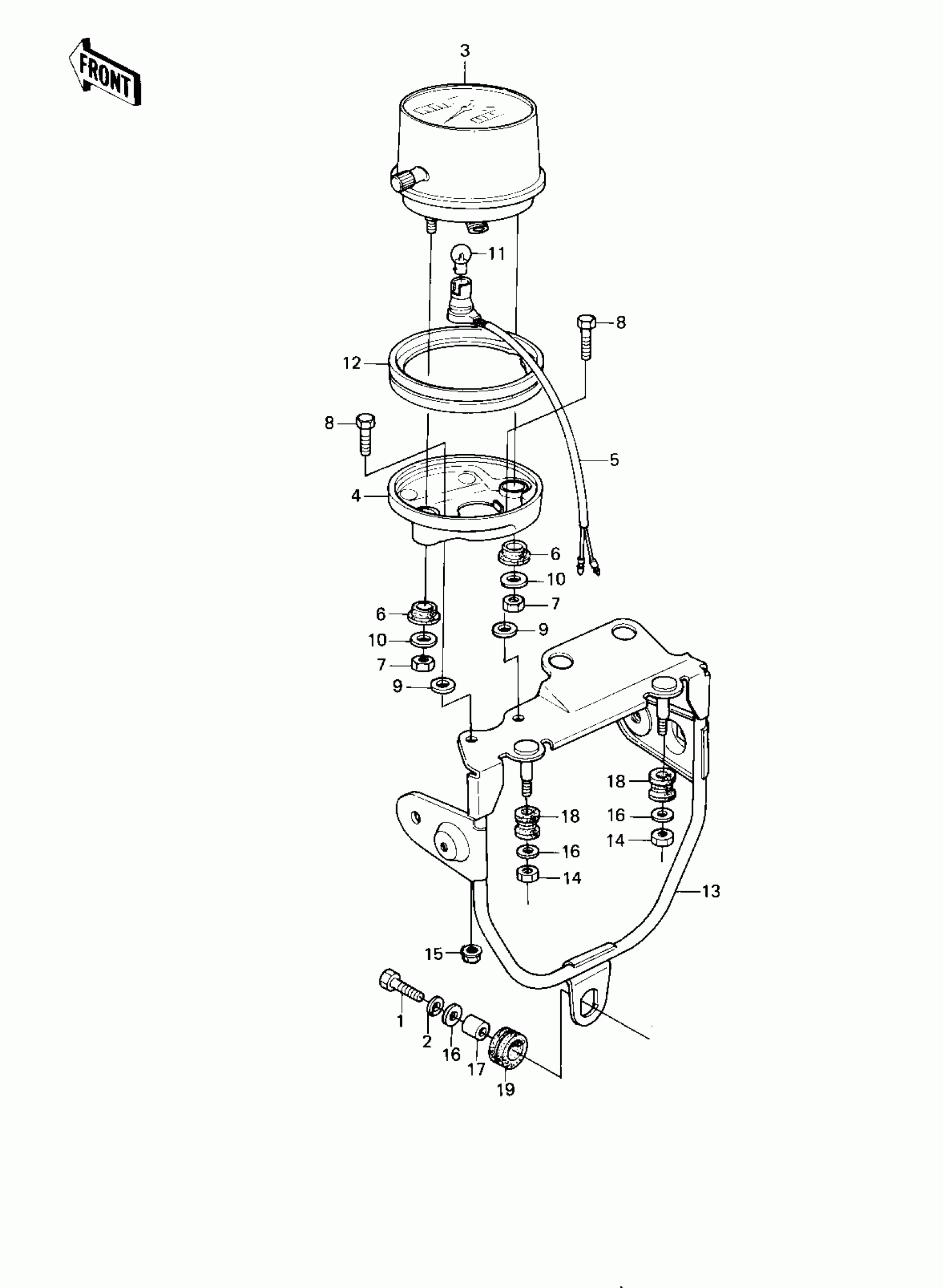

Kawasaki KE175 METER ('80-'81 KE175-D2/D3) Diagram

BOLT-UPSET

WASHER SPRING 6MM

SPEEDOMETER,KM/H&MPH

SPEEDOMETER,KM/H

COVER,METER

SOCKET ASSY,SPEEDOMET

DAMPER,METER

NUT-HEX

BOLT,HEX HEAD,6X14

WASHER,6M/M,METER

WASHER,5.2X16X1.2

BULB,6V 3W,CLEAR

DAMPER,METER

BRACKET,METER

NUT 6MM

NUT,FLANGED,6MM

WASHER,6.5X20X1.6

COLLAR

DAMPER

DAMPER RUBBER,RR FENR
