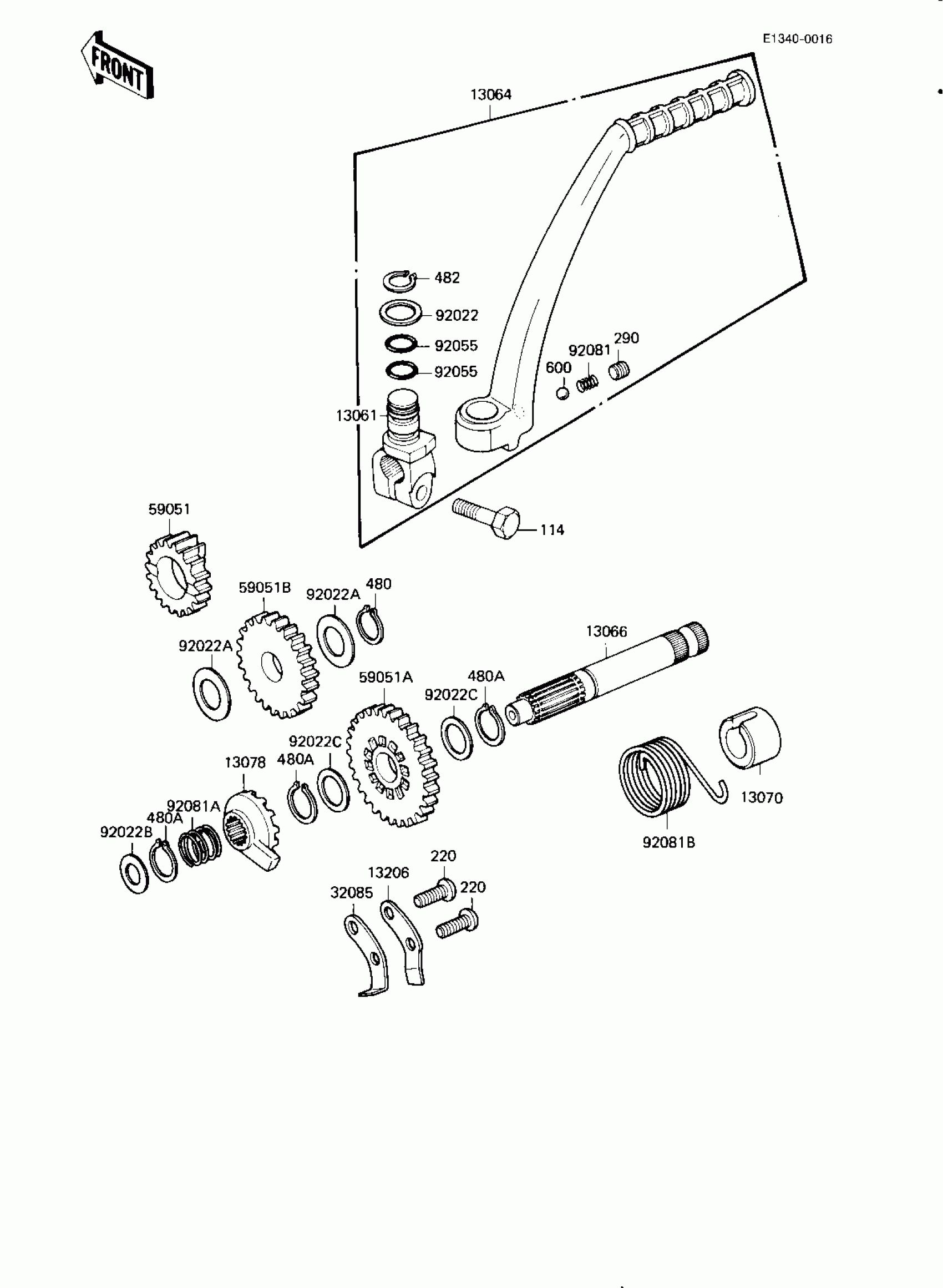

Kawasaki KE175 KICKSTARTER MECHANISM ('82-'83 KE175-D4/ Diagram

Description

Price

13061

BOSS,KICK PEDAL

13061-1045

Unavailable

13064

PEDAL ASSY,KICK

13064-1027

Unavailable

13066

SHAFT,KICK

13066-1006

Unavailable

13070

GUIDE,KICK SPRING

13070-1007

Unavailable

13078

RATCHET

13078-1001

$60.70

13206

GUIDE-KICK

13206-1002

Unavailable

32085

STOPPER,KICKSTARTER

32085-1027

$8.80

59051

PINION-KICKSTARTER

13075-006

Unavailable

59051A

GEAR,KICKSTARTER,34T

59051-1010

$47.41

59051B

GEAR,IDLE,29T

59051-1019

Unavailable

92022

WASHER,15.2X20X1

92022-1019

$4.61

92022A

WASHER,16.5X28X0.5

92022-169

$3.81

92022B

WASHER,12.3X20X0.5

92022-269

$0.98

92022C

WASHER,16.8X22X0.5

92022-315

$4.67

92055

RING-O,10X1.5

92055-061

$3.65

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92081B

SPRING,KICKSTARTER

92082-005

Unavailable

114

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

480

CIRCLIP-TYPE-C,15MM

480J1500

$1.60

480A

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

482

CIR CLIP

482K0100

$0.60

600

BALL-STEEL,1/4

600A0800

$0.59
