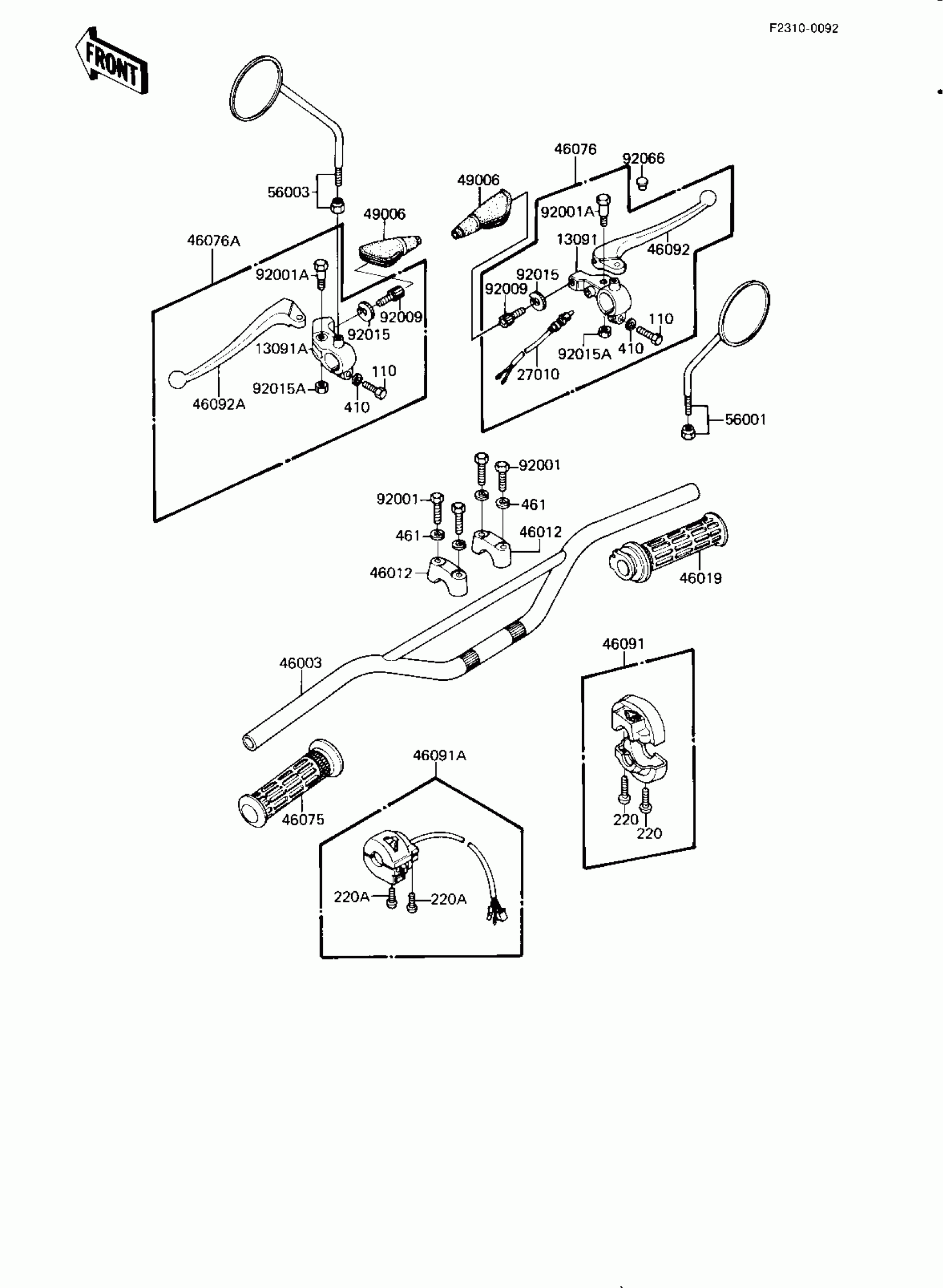

Kawasaki KE175 HANDLEBAR ('82-'83 KE175-D4/D5) Diagram

#

Description
Price

13091

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-009-21

$41.48

13091A

HOLDER,F.BLACK

46094-011-21

$36.50

27010

SWITCH,FR BRAKE LAMP

27021-004

$31.99

46003

HANDLEBAR

46003-1022

$101.08

46012

HOLDER,HANDLEBAR

46012-014

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1005

$33.35

46075

GRIP,LH

46075-1004

$16.22

46076

LEVER-ASSY-GRIP,BRAKE

46021-031

$48.39

46076A

LEVER-ASSY-GRIP,CLUTCH

46076-044

$42.46

46091

HOUSING-ASSY-CONTROL,RH

46091-1041

Unavailable

46091A

HOUSING ASSY,L.H

46091-1042

$103.54

46092

LEVER-GRIP,FRONT BRAKE

46058-004

$20.15

46092A

LEVER-GRIP,CLUTCH

46092-015

$19.69

49006

BOOT,LEVER HOLDER

49006-1017

$14.12

56003

MIRROR-ASSY,LH

56003-009

$60.14

92001

BOLT 8X38

92001-1405

$12.52

92001A

BOLT,5X22

92007-046

$6.08

92009

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

92015

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

92015A

NUT,LOCK,5MM

92019-014

$4.00

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

110

BOLT HEX HEAD 6X25

110N0625

Unavailable

220

SCREW-PAN-CROS

220B0518

Unavailable

220A

SCREW PAN HEAD 5X22

220B0522

Unavailable

410

WASHER,PLAIN,6MM

410D0600

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable
