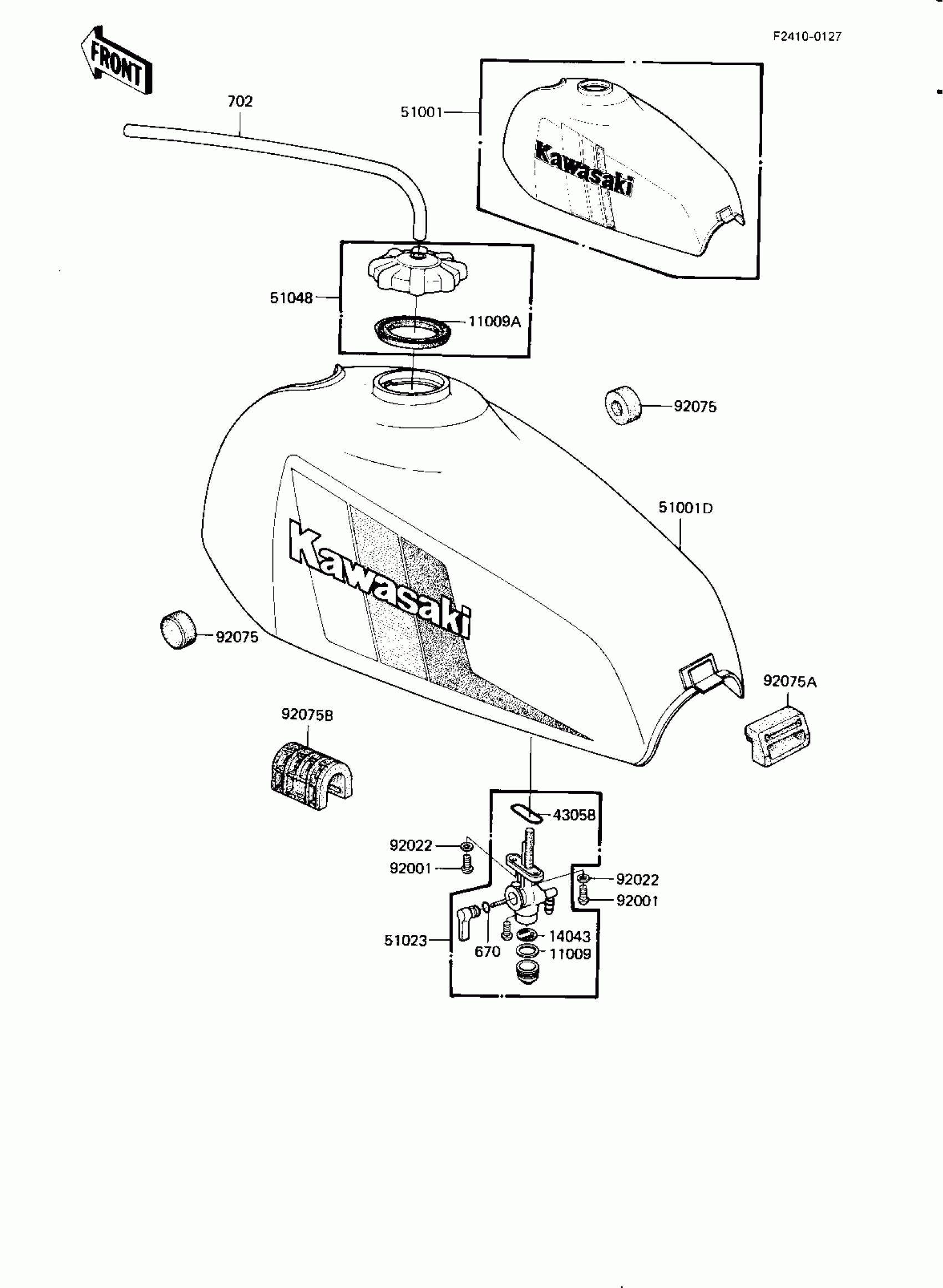

Kawasaki KE175 FUEL TANK ('82-'83 KE175-D4/D5) Diagram

Description

Price

11009

GASKET,FUEL TAP CUP

11009-1013

$5.42

11009A

GASKET,FUEL TANK CAP

51059-006

Unavailable

14043

FILTER,FUEL TAP

14043-1002

$4.53

43058

RING,TAP FLANGED

51039-003

$6.27

51001D

TANK-COMP-FUEL,EBONY (Canada)

51001-5213-H8

Unavailable

51023

TAP-ASSY,FUEL

51023-1020

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-1004

$38.08

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER-PLAIN

92022-183

$3.92

92075

DAMPER,FUEL TANK

92075-101

$6.22

92075A

DAMPER,FUEL TANK,REAR

92075-1074

Unavailable

92075B

DAMPER,FUEL TANK

92075-284

$19.86

670

O RING,10MM

670B2010

$1.50

702

TUBE,5X1430

702A051430

$29.14
