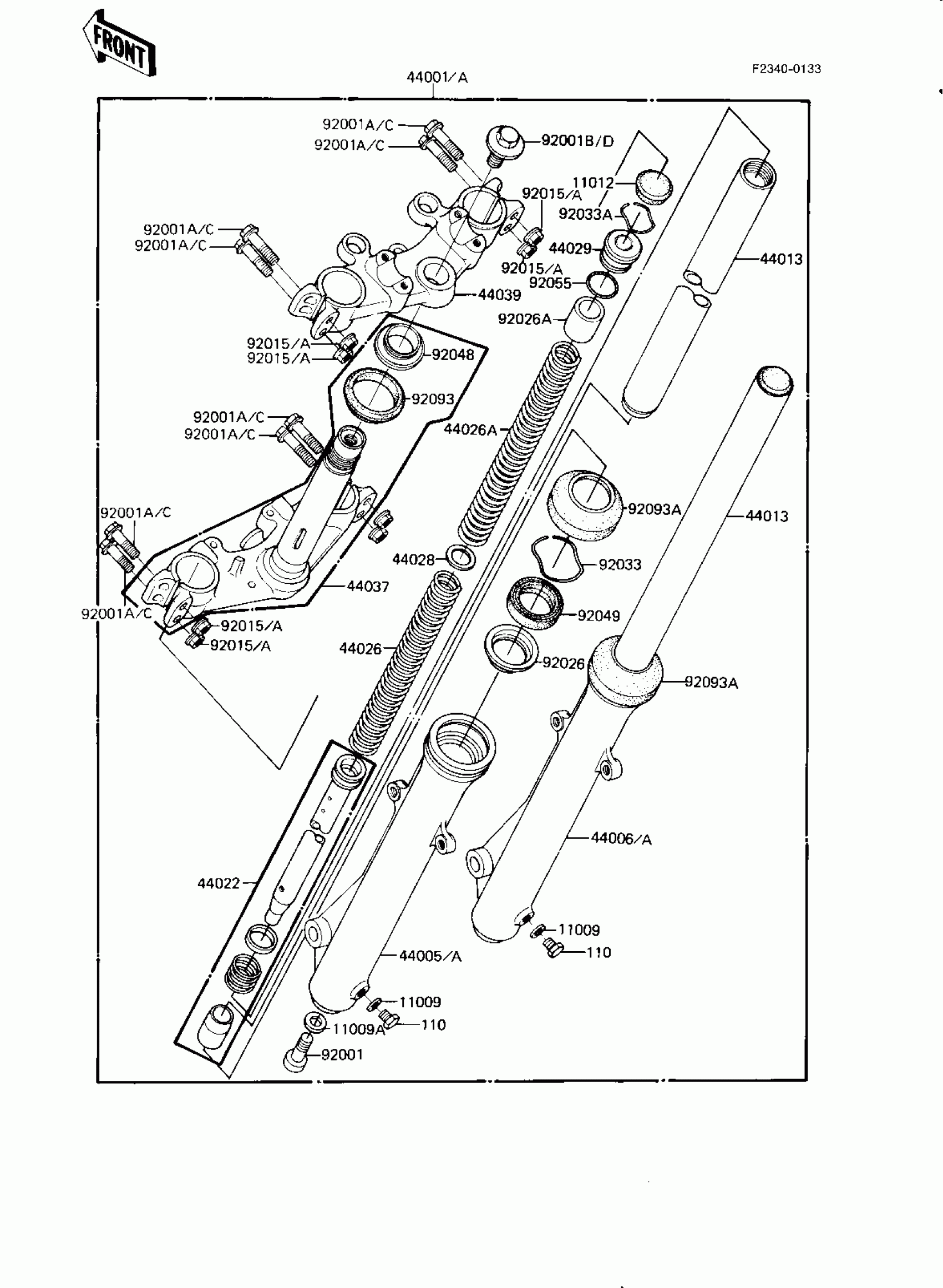

Kawasaki KE175 FRONT FORK ('82-'83 KE175-D4/D5) Diagram
#
Description
Price
11009
GASKET,DRAIN PLUG
44045-047
$9.34
11009A
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
11012
CAP,RUBBER,FORK TOP
11012-1061
Unavailable
44001A
FORK-FRONT
44001-1417
$913.58
44005A
PIPE-LEFT FORK OUTER
44005-1113
$195.41
44006A
PIPE-RIGHT FORK OUTER (Canada)
44006-1113
Unavailable
44013
TUBE,FORK,INNER
44013-1014
$294.25
44022
CYLINDER-FORK
44022-1015
$67.23
44026
SPRING,FORK,LOWER
44026-1019
$25.88
44026A
SPRING,FORK,UPPER
44026-1034
$24.82
44028
WASHER,FORK SPRING
44028-1005
Unavailable
44029
SEAT,FORK SPRING
44029-1012
$20.55
44037
STEM,STEERING
44037-1012
$283.75
44039
HEAD,STEERING STEM
44039-1020
$149.55
92001
BOLT,FORK CYLINDER
44041-078
$9.89
92001C
BOLT,FLANGED,8X45
92001-1579
$5.59
92001D
BOLT,STEERING STEM HE
92001-1741
Unavailable
92015
NUT,FLANGED,8MM
92015-1022
$0.48
92026
SPACER,OUTER TUBE
92026-1028
$7.39
92026A
COLLAR,FORK SPRING
92026-1054
$9.62
92033
CIRCLIP,OUTER TUBE
92033-1022
$6.33
92033A
CIRCLIP,FORK TOP
92033-1023
$4.87
92048
RACE,STEERING STEM BEARING
92047-010
$10.51
92049
SEAL-OIL,FORK
92049-1268
$39.90
92055
"O" RING,SPRING SEAT
92055-1060
Unavailable
92093
SEAL,STEERING STEM
44010-027
Unavailable
92093A
DUST SHIELD,FORK
92093-1017
Unavailable
110
BOLT HEX HEAD 6X8
110B0608
$0.18
