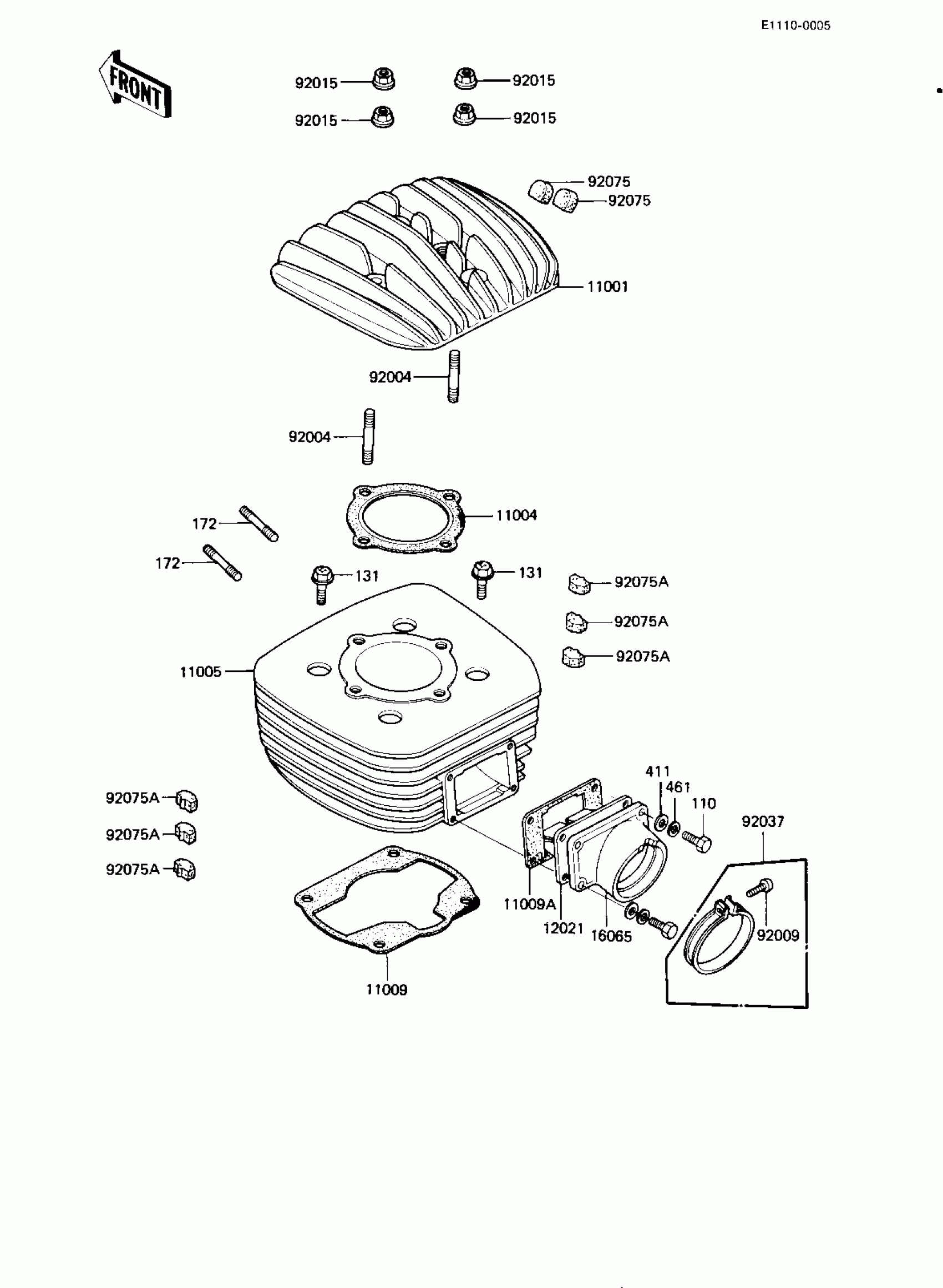

Kawasaki KE175 CYLINDER HEAD/CYLINDER/REED VALVE ('82-' Diagram

Description

Price

11001

HEAD,CYLINDER

11001-1034

Unavailable

11004

GASKET,CYLINDER HEAD

11004-1017

Unavailable

11005

CYLINDER

11005-1072

Unavailable

11009

GASKET,CYLINDER BASE

11009-1060

Unavailable

11009A

GASKET,REED VALVE

11009-1109

Unavailable

12021

VALVE ASSY,REED

12021-1005

Unavailable

16065

HOLDER,CARBURETOR

16065-1025

Unavailable

92004

STUD,8X35

92004-1009

$6.38

92009

SCREW,PAN HEAD

92011-037

Unavailable

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92037

CLAMP,HOLDER

92037-077

$12.00

92075

DAMPER,CYLINDER HEAD

92075-1176

$5.61

92075A

DAMPER

92075-304

Unavailable

110

BOLT-UPSET

112G0625

$3.62

131

BOLT,FLANGED,8X70

131G0870

$1.98

172

STUD,8X25

92004-1008

$3.70

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69
