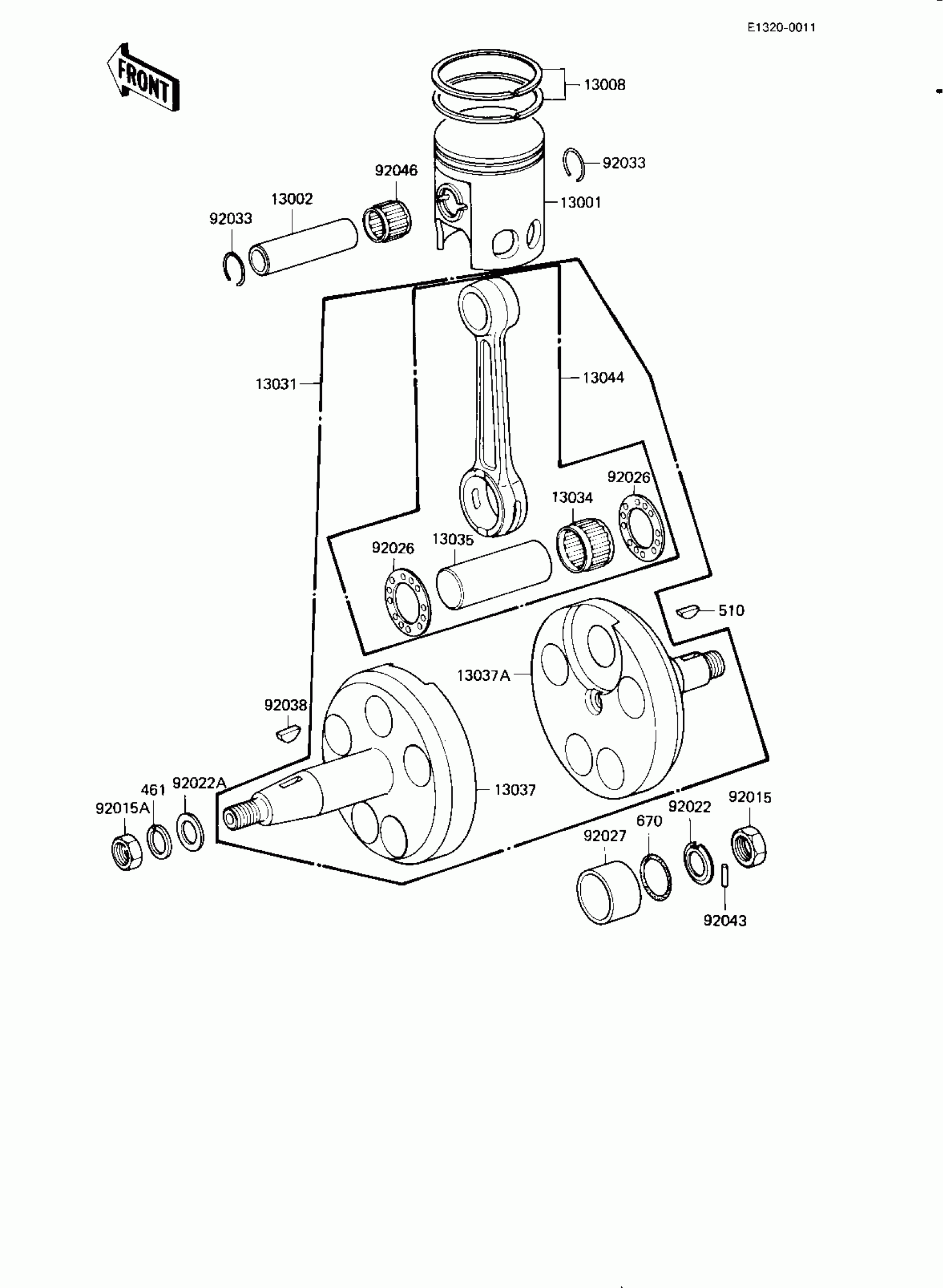

Kawasaki KE175 CRANKSHAFT/PISTON ('82-'83 KE175-D4/D5) Diagram

Description

Price

13001

PISTON,STD

13001-1041

Unavailable

13002

PIN-PISTON

13002-1004

$7.03

13008

RING SET,STD

13008-5024

Unavailable

13031

CRANKSHAFT ASSY

13031-1011

Unavailable

13034

BEARING,BIG END

13034-042

Unavailable

13035

CRANK PIN

13035-022

Unavailable

13037

CRANKSHAFT,L.H.

13037-1012

Unavailable

13037A

CRANKSHAFT,R.H.

13037-1013

Unavailable

13044

CONNECTING ROD ASSY,

13044-5012

Unavailable

92015

NUT,18MM

92015-019

$7.22

92015A

NUT 14MM

92015-043

Unavailable

92022

WASHER,LOCK,18MM

92022-1231

$5.33

92022A

WASHER-PLAIN,14MM

92022-172

Unavailable

92026

SPACER,22.5X37X1.0

92026-011

$9.89

92027

COLLAR,25X32X10.5

92143-1370

$14.50

92033

CIRCLIP PISTON PIN

92036-004

$0.65

92038

KEY,WOODRUFF

92038-001

$4.96

92043

PIN,DOWEL,2.5X14.8

92042-051

$4.22

92046

BEARING-NEEDLE

92046-1038

Unavailable

461

WASHER SPRING 14MM

461F1400

Unavailable

510

KEY-WOODRUFF

510A4200

$2.96

670

O RING,20MM

670B2020

$1.22
