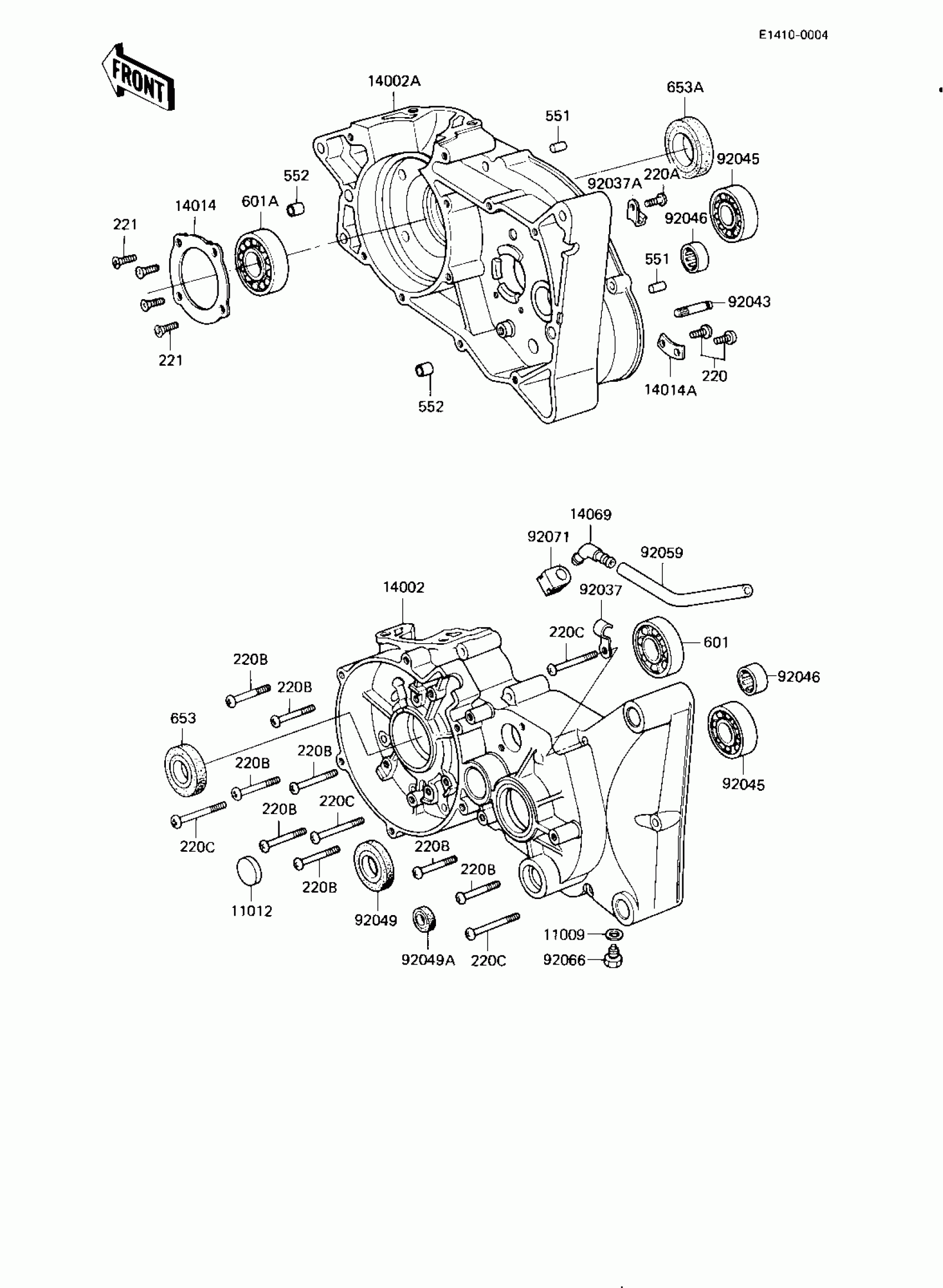

Kawasaki KE175 CRANKCASE ('82-'83 KE175-D4/D5) Diagram
#
Description
Price
11009
GASKET,10.5X16X1
92065-058
$3.96
11012
CAP,DRIVE SHAFT SEAL
11012-1040
Unavailable
14002
CRANKCASE,L.H,F.BLACK
14002-1023
Unavailable
14002A
CRANKCASE,R.H,F.BLACK
14002-1079
Unavailable
14014
HOLDER-CRANK BEARING
14014-021
Unavailable
14014A
HOLDER-MISSION BERNG
14014-022
Unavailable
14069
BREATHER ASSY
14069-1001
$24.64
92037
CLAMP CABLE
92037-016
Unavailable
92037A
CLAMP,OIL PIPE
92037-157
Unavailable
92043
PIN,KICK SPRING
92043-117
$8.71
92045
BEARING-BALL,6204C3
92045-1046
Unavailable
92046
BEARING-NEEDLE,#7E-HKS162412-1
92046-026
$23.97
92049
OIL SEAL SC30426
92050-039
$13.66
92049A
SEAL-OIL,TB13225.5
92051-005
$7.74
92059
PIPE-BREATHER
92059-061
Unavailable
92066
PLUG,DRAIN,10X12
92067-001
$4.41
92071
GROMMET,BREATHER
92071-042
$4.26
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
220A
SCREW-PAN-CROS,6X14
220B0614
$1.48
220B
SCREW PAN HEAD 6X40
220B0640
Unavailable
220C
SCREW-PAN-CROS,6X60
220B0660
$1.79
221
SCREW-CSK-CROS,6X16
221B0616
$0.59
551
PIN DOWEL 8X16
551A0816
$1.25
552
PIN-DOWEL,6.5X10X12
552B1012
$1.10
601
BEARING-BALL,#6205C3
601B6205
$19.57
601A
BEARING-BALL,#6305C3
601B6305
$25.78
653
SEAL-OIL
92049-1250
$18.74
653A
OIL SEAL TB32457
653B324507
$17.63
