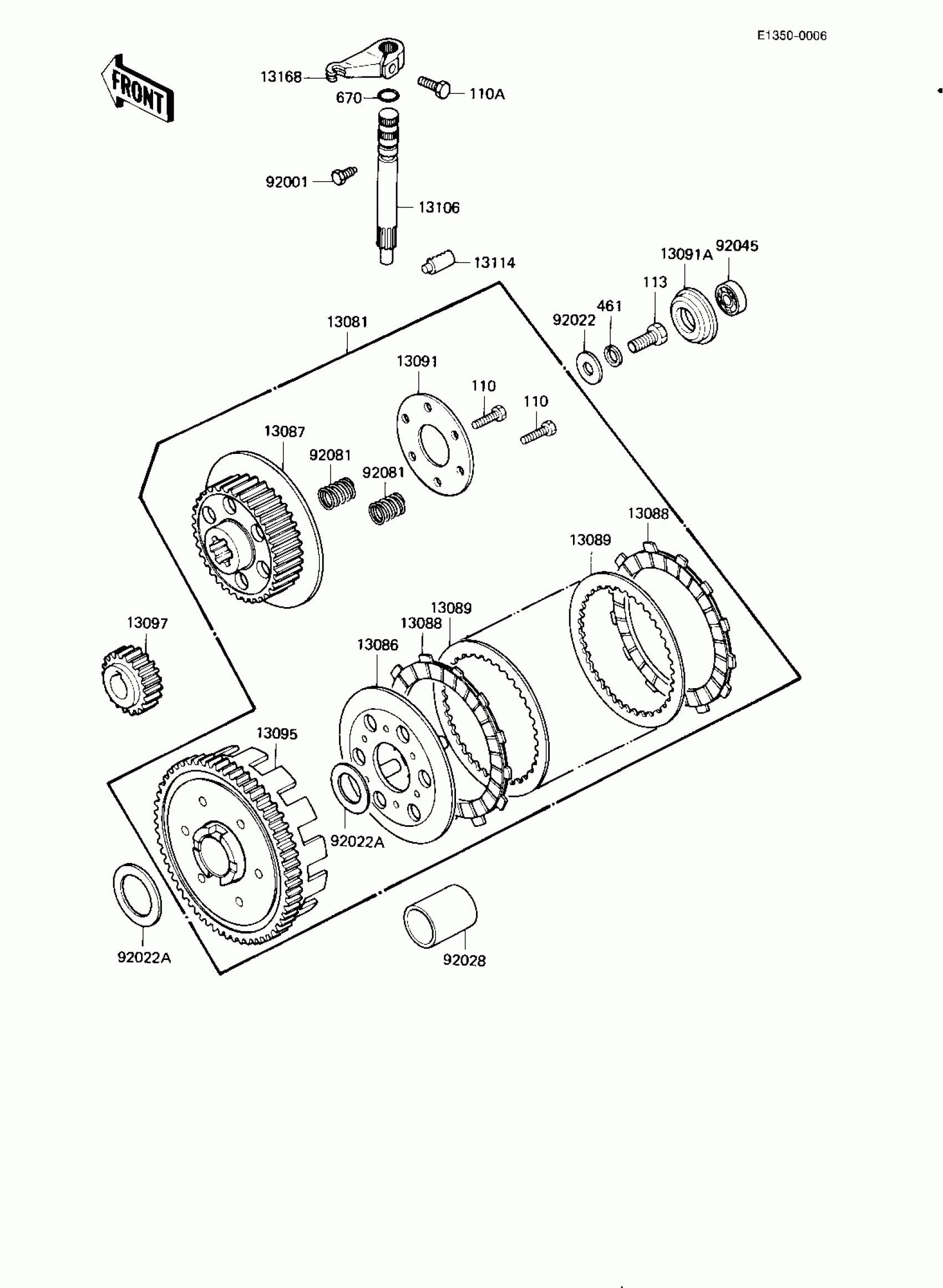

Kawasaki KE175 CLUTCH ('82-'83 KE175-D4/D5) Diagram

Description

Price

13081

CLUTCH-ASSY

13081-1050

Unavailable

13086

WHEEL,CLUTCH

13086-017

Unavailable

13087

HUB,CLUTCH

13087-041

Unavailable

13088

PLATE-FRICTION

13088-1015

$17.08

13089

PLATE CLUTCH STEEL

13089-003

$10.79

13091

HOLDER,CLUTCH SPRING

13091-1017

Unavailable

13091A

HOLDER,CLUTCH PUSHER

13091-1136

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1024

Unavailable

13097

GEAR,PRIMARY,24T

13097-1006

Unavailable

13106

SHAFT,CLUTCH RELEASE

13106-1002

Unavailable

13114

PUSHER-CLUTCH

13114-1009

Unavailable

13168

LEVER,CLUTCH RELEASE

13168-1023

Unavailable

92001

BOLT,CLUTCH RELEASE

92003-130

Unavailable

92022

WASHER,10.2X28X2

92022-1088

$3.57

92022A

WASHER,20.5X34X1.4

92022-168

$7.25

92028

BUSH-CLUTCH

92028-014

$19.75

92045

BEARING-BALL,#627

92045-026

$16.08

92081

SPRING,CLUTCH

92081-1174

Unavailable

110

BOLT

110G0520

Unavailable

110A

BOLT-UPSET

112G0618

Unavailable

113

BOLT,HEX HEAD,10X22

113G1022

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable

670

O RING,9MM

670B1509

$2.72
