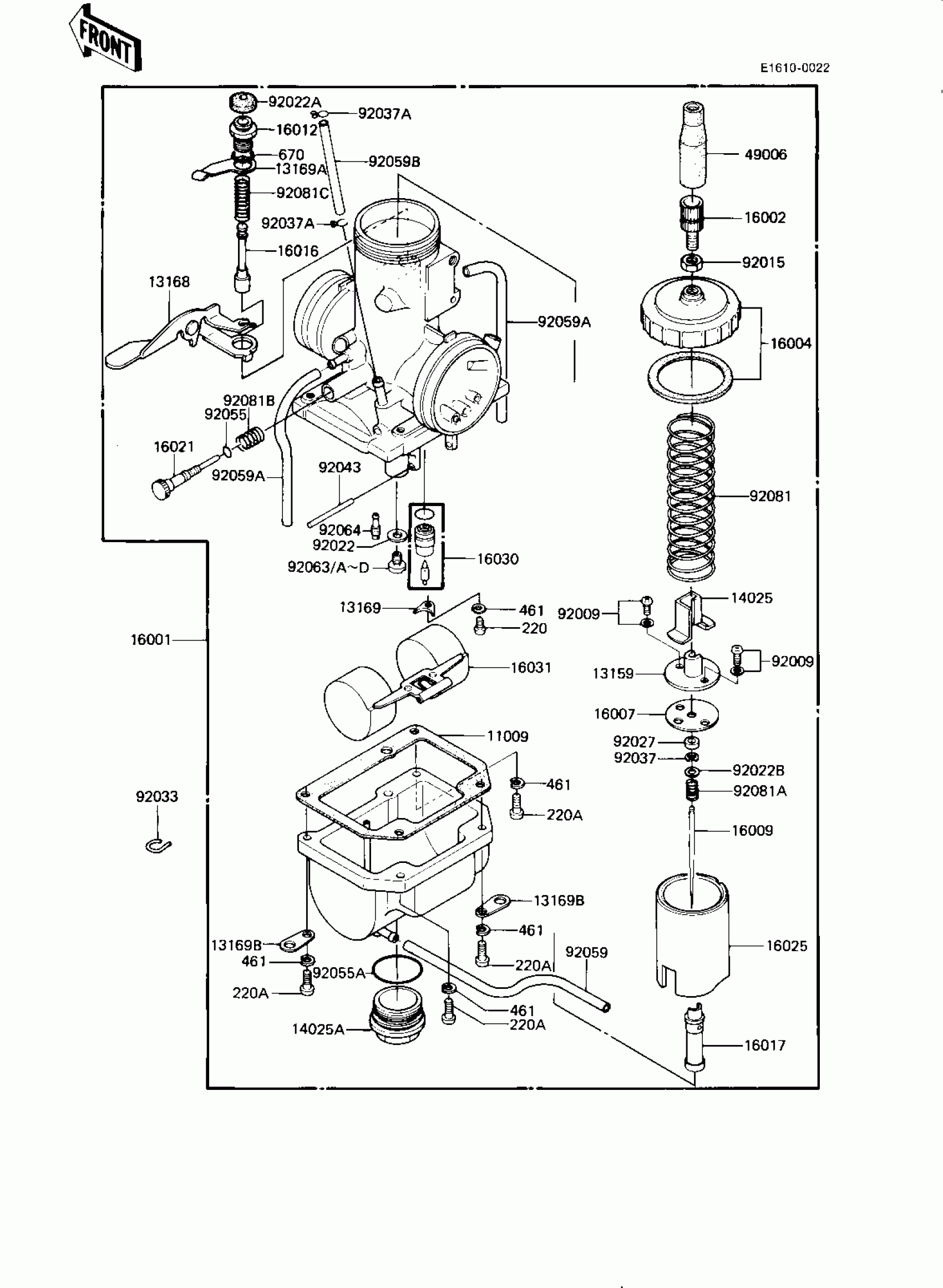

Kawasaki KE175 CARBURETOR ('82-'83 KE175-D4/D5) Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1178
Unavailable
13159
CONNECTOR,THROTTLE
13159-1010
Unavailable
13168
LEVER,STARTER PLUNGER
16063-004
$31.60
13169
PLATE, LOCK
13169-1190
Unavailable
13169A
SPRING PLATE,STARTER
13169-1224
Unavailable
13169B
PLATE,TUBE CLAMP
13169-1226
Unavailable
14025
COVER,THROTTLE VALVE
14025-1197
Unavailable
14025A
COVER,FLOAT CHAMBER
14025-1198
Unavailable
16001
CARBURETOR
16001-1266
Unavailable
16002
ADJUSTER,CABLE
16002-014
Unavailable
16004
CAP-MIXING CHAMBER
16004-018
Unavailable
16007
PLATE,THROTTLE VALVE
16007-1011
$12.15
16009
JET NEEDLE, 5CT34
16009-1053
$11.29
16012
CAP-STARTER PLUNGER
16012-019
$21.09
16016
PLUNGER,STARTER
16016-1011
$29.28
16017
NEEDLE JET.0-6
16017-1050
$20.01
16021
SCREW,THROTTLE ADJST
16021-1012
Unavailable
16025
VALVE,THROTTLE CA2.0
16025-1043
$59.73
16030
VALVE ASSY,FLOAT
16030-1011
Unavailable
16031
FLOAT
16031-1011
$57.76
49006
BOOT,CARBURETOR
49006-1169
Unavailable
92009
SCREW,PAN HEAD,3X14
16033-031
Unavailable
92015
NUT,ADJUST LOCK
16003-006
$7.34
92022
WASHER,MAIN JET
16034-001
$4.31
92022A
CAP,STARTER PLUNGER
16039-015
$6.88
92022B
WASHER,THROTTLE VALVE
92022-1024
$6.61
92027
COLLAR,THROTTLE VALVE
92027-1103
$7.34
92033
RING-SNAP
92036-018
$3.89
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP,TUBE
92037-072
$7.22
92043
PIN,FLOAT
16032-003
$6.57
92055
RING-O
92055-044
$10.38
92055A
RING-O,ADJUST SCREW
92055-1078
$6.27
92059
TUBE,SWITH VALVE,CLNR
92059-1078
Unavailable
92059A
TUBE,3X5X100
92059-1116
$4.59
92059B
PIPE,FUEL
92059-130
$24.48
92063
MAIN JET,#A97.5R
92063-1035
Unavailable
92063A
MAIN JET,#A100
92063-1033
$26.79
92063B
MAIN JET,#A105R
92063-1042
$15.74
92063C
JET-MAIN NO 107.5R
92063-073
$15.74
92063D
MAIN JET,#A102.5
92063-1028
$17.74
92064
PILOT JET,#22.5
92064-1026
$12.63
92081
SPRING,THROTTLE VALVE
16006-023
$15.02
92081A
SPRING,JET NEEDLE
92081-1072
$5.54
92081B
SPRING,THROTTLE ADJUST
92081-1152
$6.16
92081C
SPRING,STARTER PLUNGER
92081-1181
$4.11
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW PAN HEAD 4X16
220B0416
$1.66
461
WASHER SPRING 4MM
461F0400
Unavailable
670
O RING,9MM
670B1509
$3.65
