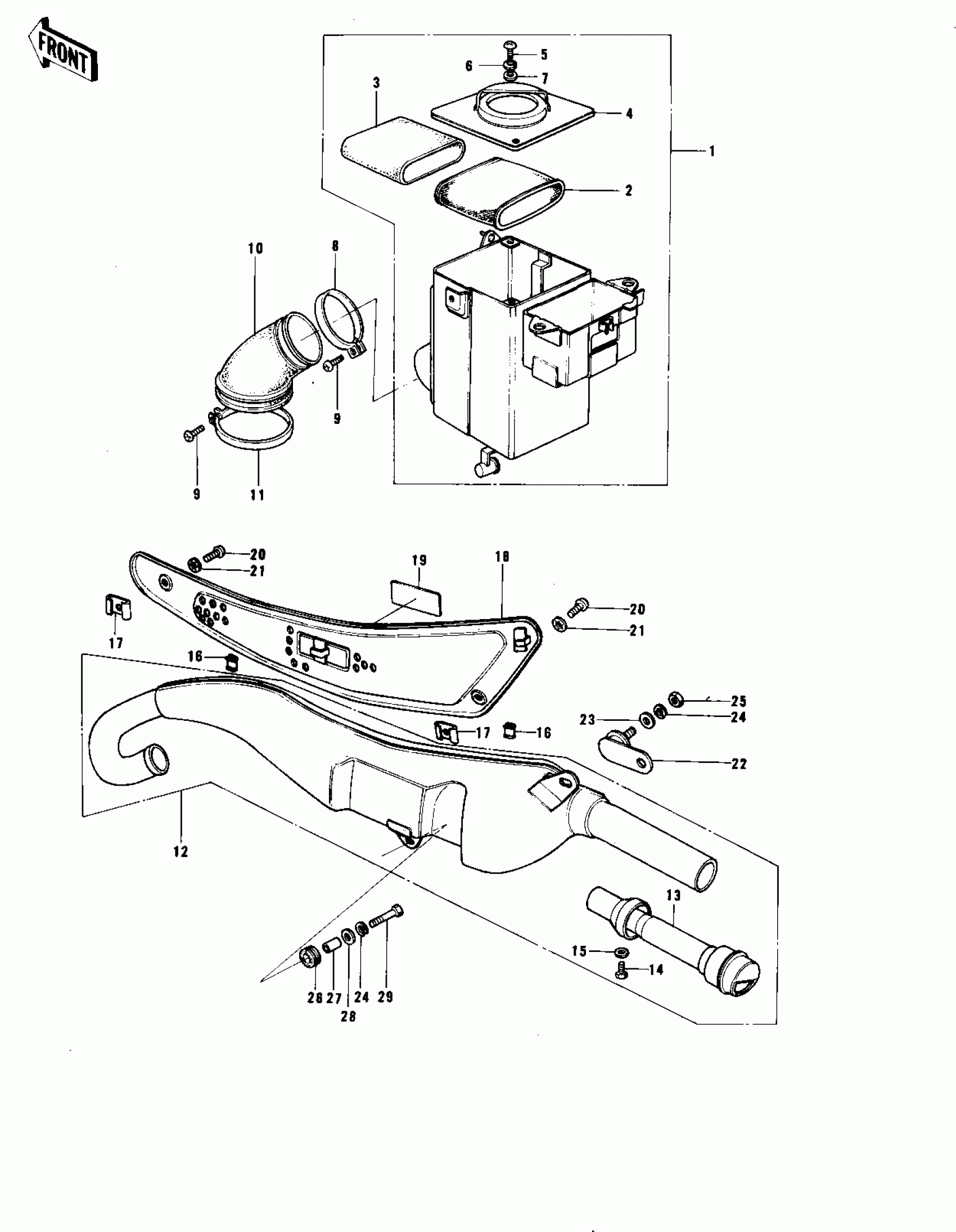

Kawasaki KE175 AIR CLEANER/MUFFLER Diagram
#
Description
Price
1
AIR CLEANER ASY,BLACK
11010-071-21
Unavailable
2
HOLDER,CLENER ELEMENT
11014-011
Unavailable
3
ELEMENT,AIR CLNR
11013-1033
Unavailable
4
CAP,AIR CLEANER,BLACK
11012-039-21
Unavailable
5
SCREW PAN HEAD 6X12
220B0612
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
WASHER PLAIN 6MM
411B0600
Unavailable
8
CLAMP,AIR CLEANER
92037-129
Unavailable
9
SCREW-PAN-CROS,6X35,B
220C0635
Unavailable
10
CONNECTOR,AIR CLEANE
11026-014
Unavailable
11
CLAMP,AIR CLEANER
92037-128
Unavailable
12
MUFFLER ASSY,BLACK
18001-150-21
Unavailable
13
BAFFLE TUBE
18033-091
Unavailable
14
BOLT-UPSET,6X12
112G0612
Unavailable
15
WASHER-PLAIN
92022-183
Unavailable
16
INSULATOR
18065-007
Unavailable
17
INSULATOR,HEAT
18065-010
Unavailable
18
COVER,MUFFLER
18064-014
Unavailable
19
EMBLEM MUFFLER COVER
56018-225
Unavailable
20
SCREW PAN HEAD 6X12
220E0612
Unavailable
21
WASHER LOCK 6MM
463H0600
Unavailable
22
BRACKET,MUFFLER
18061-054
Unavailable
23
WASHER,8.5X20X1.6
92022-1561
Unavailable
24
WASHER SPRING 8MM
461F0800
Unavailable
25
NUT,8MM
311B0800
Unavailable
26
DAMPER RUBBER-MUFFLER
18063-005
Unavailable
27
COLLAR
92027-102
Unavailable
28
WASHER,8X26X2.3
92022-1564
Unavailable
29
BOLT-SMALL-UPSET,8X30
115G0830
Unavailable
