Description

Price

13127

SHAFT,DRIVE

13127-045

Unavailable

13128

SHAFT,OUTPUT

13128-040

Unavailable

13129

LOW GEAR,OUTPUT SHAFT

13129-050

Unavailable

13129A

3RD&4TH GEAR,DRIVE SF

13129-1010

Unavailable

13129B

3RD GEAR,OUTPUT SHAFT

13129-1011

Unavailable

13129C

4TH GEAR,OUTPUT SHAFT

13129-1015

Unavailable

13129D

5TH GEAR,DRIVE SHAFT

13129-1018

Unavailable

13129E

TOP GEAR,DRIVE,SHAFT

13129-1021

Unavailable

13129F

2ND GEAR,DRIVE SHAFT

13130-036

Unavailable

13129G

2ND GEAR,OUTPUT SHAFT

13131-043

Unavailable

13129H

TOP GEAR,OUTPUT SHAFT

13137-043

Unavailable

13129I

5TH GEAR,OUTPUT SHAFT

13248-003

Unavailable

13144

ENGINE SPROCKET,13T

13144-053

Unavailable

13144A

SPROCKET-OUTPUT,15T

13144-054

$51.02

13144B

SPROCKET-OUTPUT,14T

13144-1058

Unavailable

92022

WASHER,18.3X22X0.5

92022-271

$5.52

92022A

WASHER,14.3X24X1

92022-272

$8.86

92022B

WASHER,PLAIN

92022-273

$5.82

92022C

WASHER-LOCK,14MM

92024-046

Unavailable

92022D

WASHER,

92024-052

Unavailable

92022E

WASHER,LOCK

92024-055

$5.17

92027

COLLAR,20X25X12.5

92027-1077

$20.77

92033

RING-SNAP

92033-028

$8.79

92055

RING-O,17.5X1.5

92055-022

$6.22

315

NUT-HEX-FINE,14MM

315B1400

$2.03

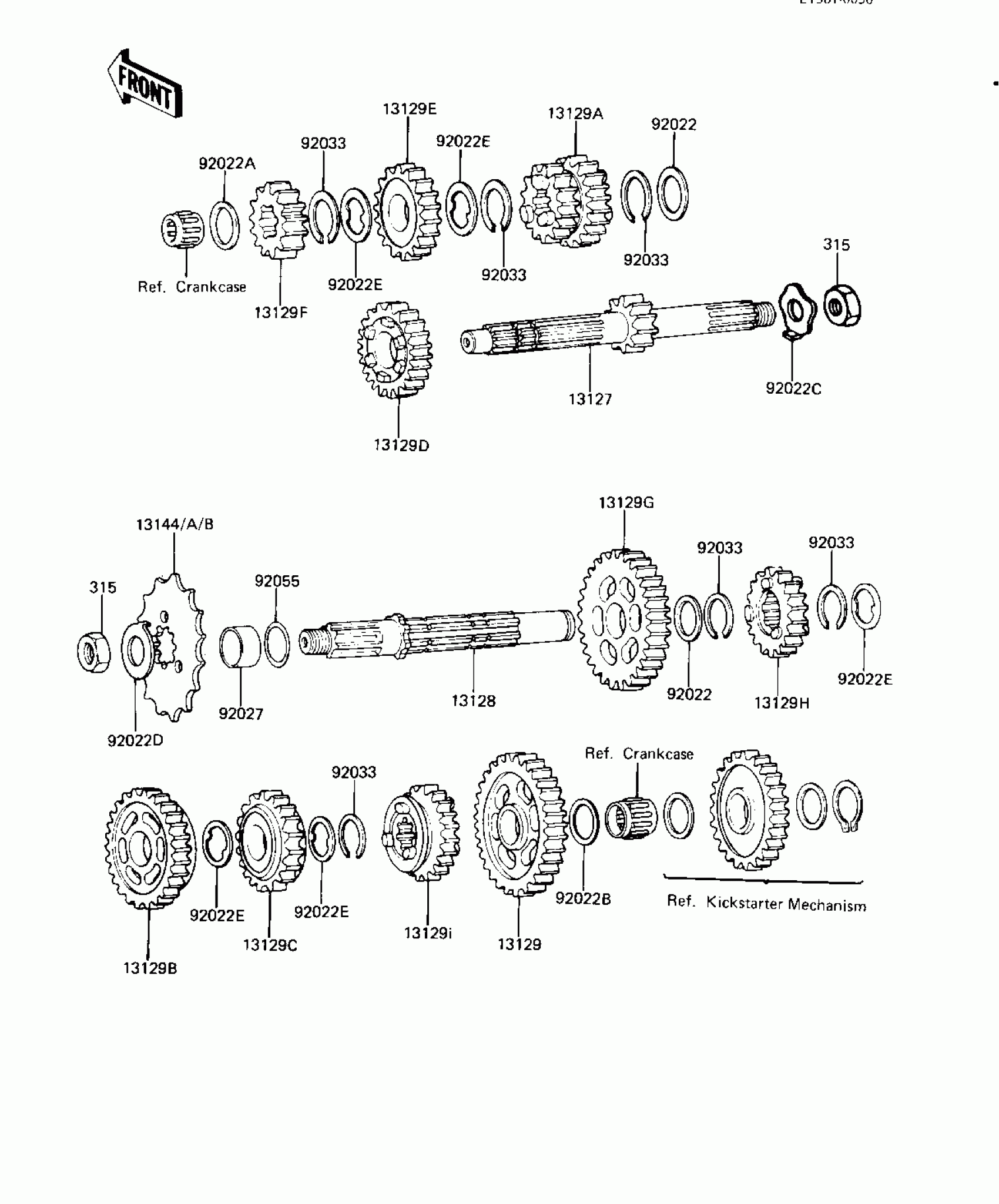

Kawasaki KE125 TRANSMISSION ('82-'83 A9/A10) Diagram

SHAFT,DRIVE

SHAFT,OUTPUT

LOW GEAR,OUTPUT SHAFT

3RD&4TH GEAR,DRIVE SF

3RD GEAR,OUTPUT SHAFT

4TH GEAR,OUTPUT SHAFT

5TH GEAR,DRIVE SHAFT

TOP GEAR,DRIVE,SHAFT

2ND GEAR,DRIVE SHAFT

2ND GEAR,OUTPUT SHAFT

TOP GEAR,OUTPUT SHAFT

5TH GEAR,OUTPUT SHAFT

ENGINE SPROCKET,13T

SPROCKET-OUTPUT,15T

SPROCKET-OUTPUT,14T

WASHER,18.3X22X0.5

WASHER,14.3X24X1

WASHER,PLAIN

WASHER-LOCK,14MM

WASHER,

WASHER,LOCK

COLLAR,20X25X12.5

RING-SNAP

RING-O,17.5X1.5

NUT-HEX-FINE,14MM
