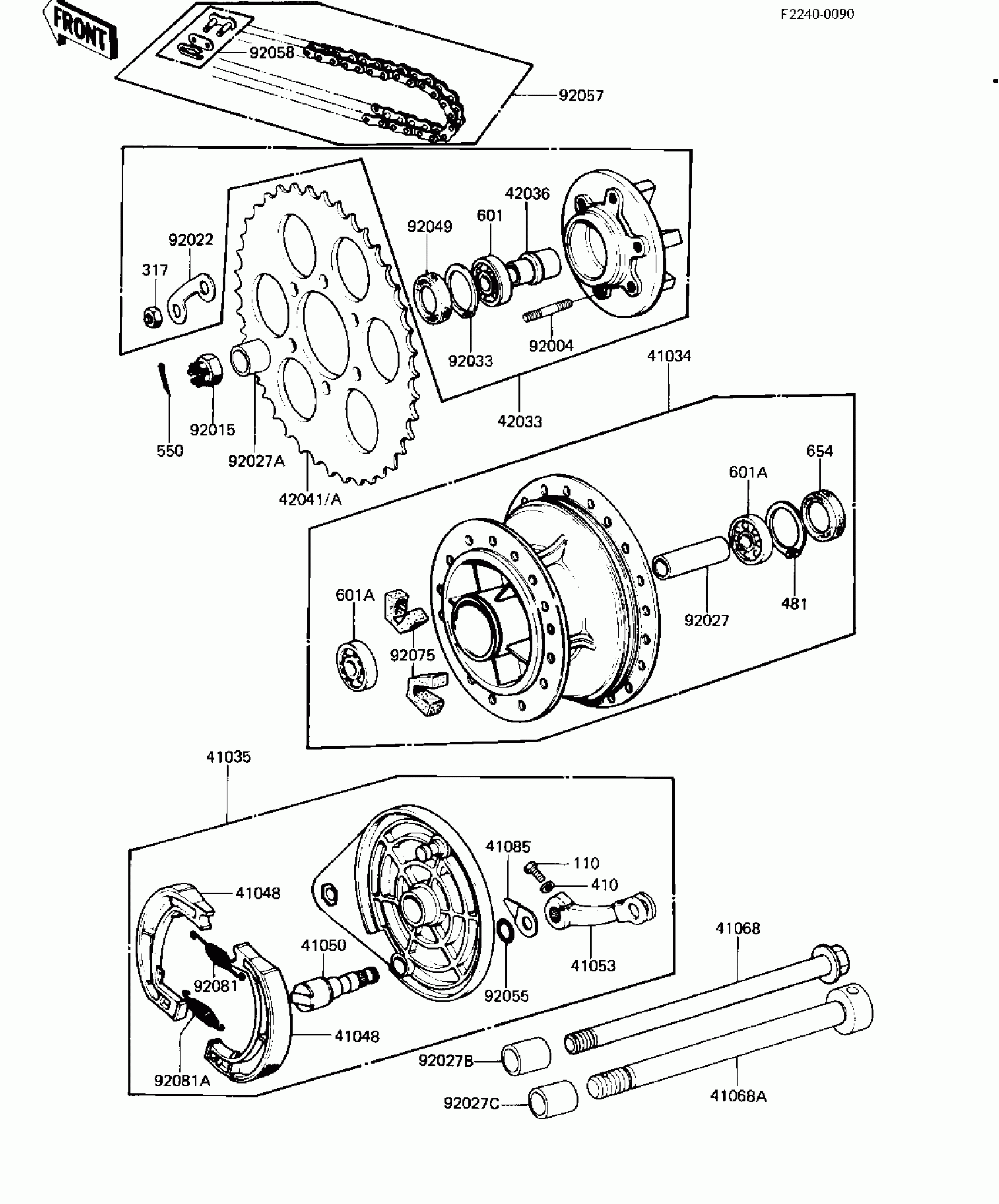

Kawasaki KE125 REAR HUB/BRAKE/CHAIN ('82-'83 A9/A10) Diagram

#

Description
Price

41034

DRUM-ASSY,RR BRK

41034-1025

$546.05

41035

PANEL-ASY,RR BRK

41035-1036

$289.48

41048

SHOE,BRAKE

42019-010

$33.96

41050

CAM SHAFT,REAR BRAKE

42026-025

$16.97

41053

LEVER,REAR BRAKE CAM

42029-030

$78.66

41068A

AXLE,RR,L=246 (Canada)

41068-1101

Unavailable

41085

INDICATOR,BRAKE SHOE

41085-002

$13.20

42033

COUPLING ASSY,RR HUB

42008-031

$117.57

42036

SLEEVE,RR HUB COUPLNG

42036-018

$23.42

42041

REAR SPROCKET.50T

42041-146

Unavailable

42041A

REAR SPROCKET,54T

42041-147

$87.55

92004

STUD,8X17

92004-1015

$4.59

92015

NUT,CASTLE,14MM

42045-020

$7.49

92022

WASHER,SPROCKET LOCK

92088-019

$5.42

92027

SPACER,RR HUB BEARING

42010-029

$20.71

92027A

COLLAR,RR BRAKE,L=22

92027-1253

$8.86

92027C

COLLAR,15.2X28X25 (Canada)

92027-1480

Unavailable

92033

RING-SNAP,42MM

92033-1041

$4.64

92049

SEAL-OIL,26X42X8

92050-060

$16.98

92055

RING-O,BRAKE CAM

92055-004

$4.25

92057

DR CHAIN 428X118H

92057-030

$100.54

92058

JOINT-CHAIN

92058-1015

Unavailable

92075

DAMPER,REAR HUB SHOCK

42014-023

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$6.13

92081A

SPRING,BRAKE SHOE

92081-1550

$9.20

110

BOLT-UPSET

112G0622

Unavailable

317

NUT-HEX-SMALL,8MM

317B0800

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

550

PIN-COTTER,3.0X25

550D3025

Unavailable

601

BEARING-BALL,#6004C3

601B6004

$9.44

601A

BEARING-BALL,#6202C3

601B6202

$6.58

654

OIL SEAL,22X35X8

654A223508

Unavailable
