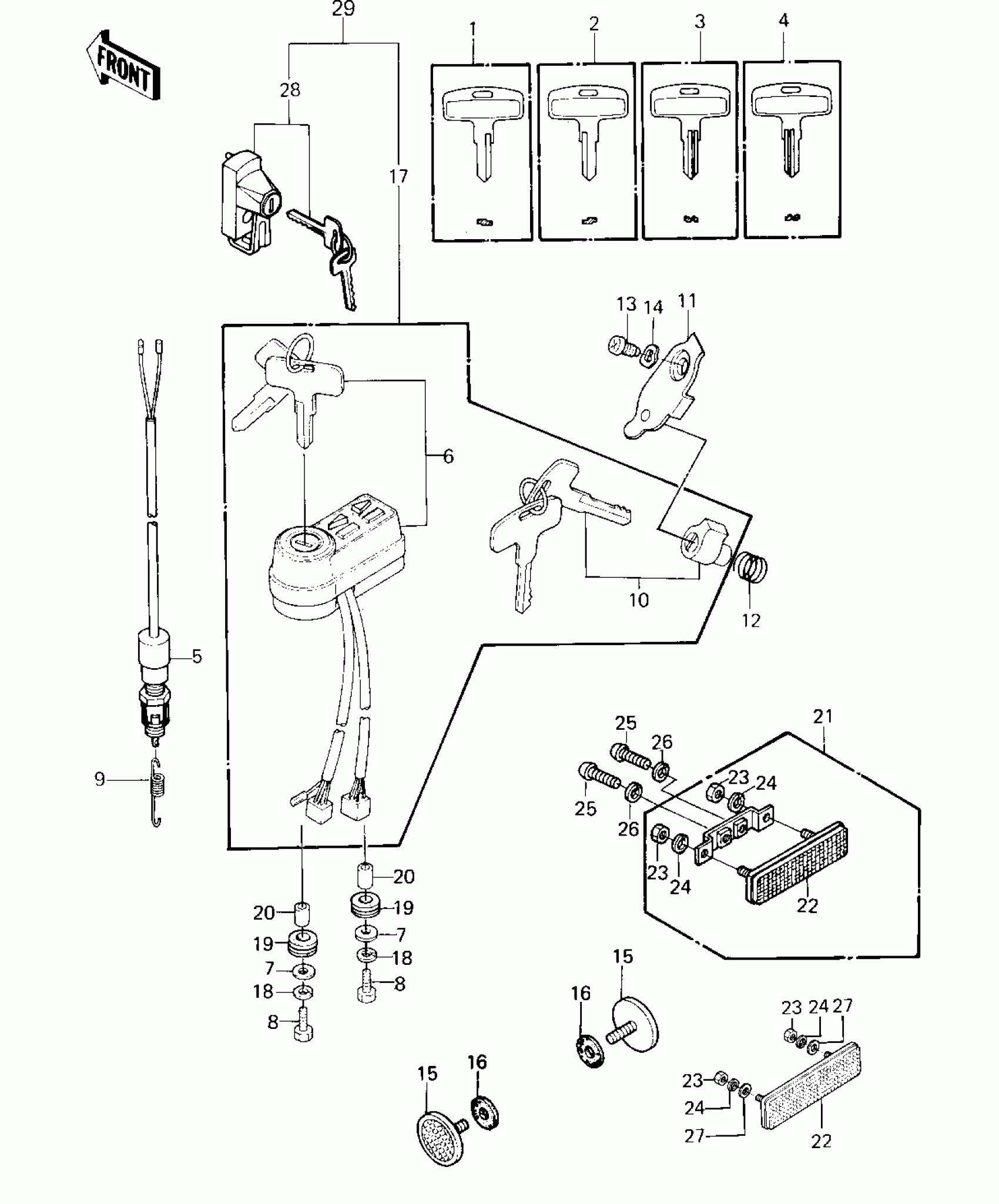

Kawasaki KE125 IGNITION SWITCH/LOCKS/REFLECTORS ('80-'8 Diagram

#

Description
Price

1

KEY-LOCK,BLANK

27008-1024

$21.66

2

KEY-LOCK,BLANK

27008-1025

$21.66

3

KEY,BLANK

27008-1026

Unavailable

4

KEY,BLANK

27008-1027

$17.67

5

SWITCH,BRAKE LAMP

27010-025

$29.24

6

SWITCH ASSY,IGNITION

27005-1040

$158.90

7

WASHER,6.5X20X1.6

92022-125

$1.40

8

BOLT 6X22

112B0622

$3.48

9

SPRING,BRAKE LAMP SWITCH

27011-006

$5.46

10

LOCK-ASSY,STEERING

27016-042

$45.68

11

CAP,STEERING LOCK

11012-1134

$6.87

12

SPRING,STEERING LOCK

27032-001

$5.25

13

SCREW,3.51MM

92008-007

$4.11

14

WASHER,WAVE

92097-003

$4.50

15

REFLECTOR-REFLEX,FR

28012-016

$23.25

16

DAMPER,REFLECTOR

92094-011

$4.60

17

LOCK ASSY,KE125-A7

27004-5072

$69.42

18

WASHER SPRING 6MM

461F0600

$0.69

19

DAMPER RUBBER,RR FENR

92075-209

$4.69

20

COLLAR

92027-241

$6.57

21

REFLECTOR ASSY,REFLEX

28001-1011

$11.05

22

REFLECTOR-REFLEX,RR

28012-1005

$28.34

23

NUT-HEX

311B0500

$0.47

24

WASHER SPRING 5MM

461F0500

$0.69

25

SCREW PAN HEAD 6X12

220B0612

Unavailable

26

WASHER SPRING 6MM

461F0600

$0.69

27

WASHER-PLAIN,5MM

411B0500

$0.46

28

LOCK ASSY,HELMET

27016-5032

$54.89

29

SWITCH-ASSY

27004-5120

$110.66
