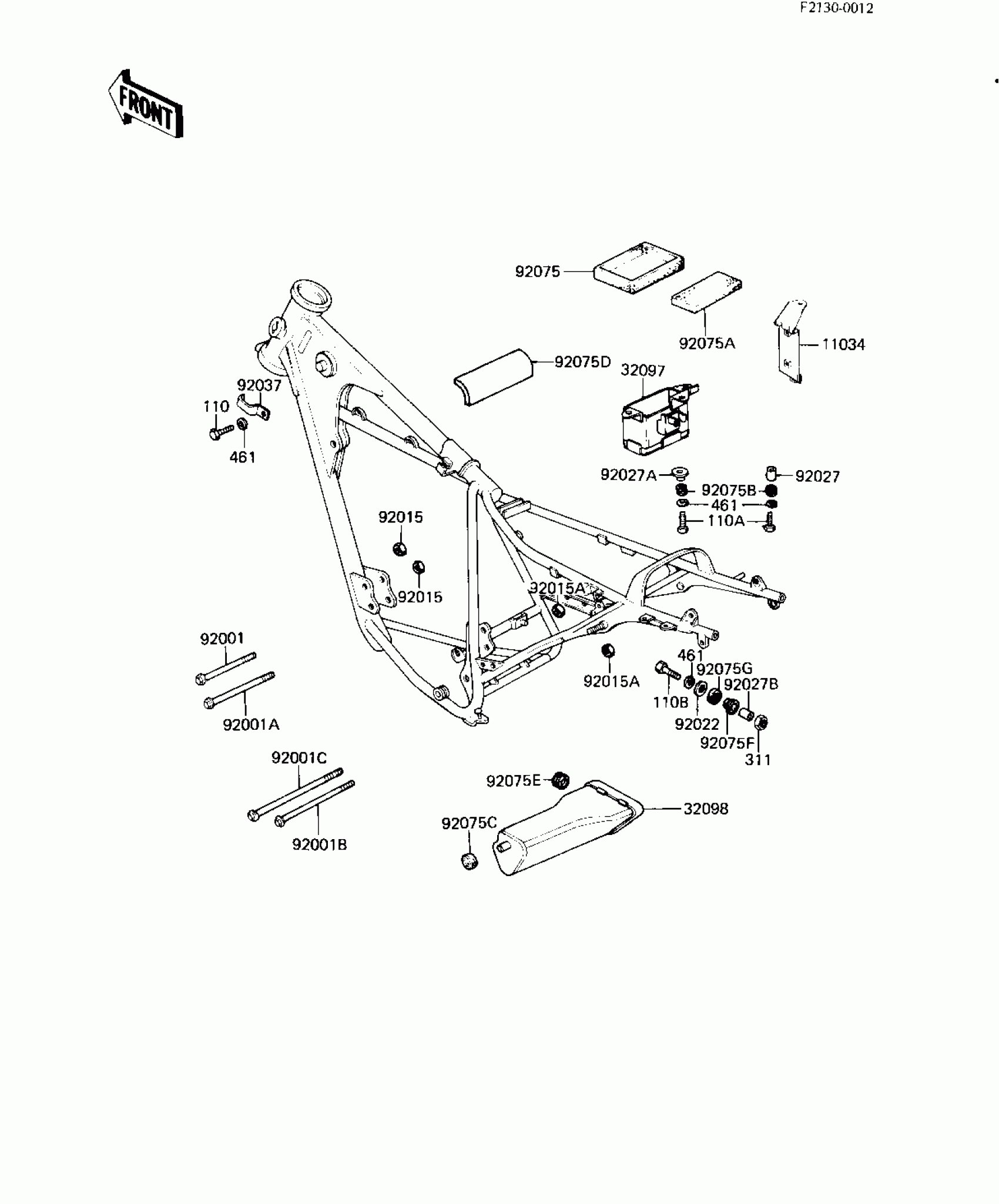

Kawasaki KE125 FRAME FITTINGS ('82-'83 A9/A10) Diagram

Description

Price

11034

BRACKET,REGULATOR

11034-1798

Unavailable

32097

CASE-BATTERY

32097-030

$26.87

32098

CASE,TOOL

32098-022

Unavailable

92001

BOLT-FLANGE

92001-1582

Unavailable

92001A

BOLT,FLANGED,8X70

92001-1583

$9.57

92001B

BOLT,FLANGED,10X115

92001-1603

$10.65

92001C

BOLT,FLANGED,10X130

92001-1604

$7.38

92015

NUT,LOCK,8MM

92015-1124

$5.42

92015A

NUT,10MM

92015-1429

$6.88

92022

WASHER,7X24X1.6

92022-228

$3.92

92027

COLLAR

92027-103

$3.58

92027A

COLLAR

92027-153

$6.22

92027B

COLLAR,6.8X10X12

92027-162

$6.57

92037

CLAMP,WIRE HARNESS

92037-150

$6.63

92075

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

92075A

DAMPER,BATTERY

32103-027

$11.91

92075B

DAMPER RUBBER

92075-051

$3.92

92075C

DAMPER RUBBER

92075-107

Unavailable

92075D

DAMPER,AIR CLEANER

92075-1085

$5.03

92075E

DAMPER RUBBER-OIL TNK

92075-150

Unavailable

92075F

RUBBER,FENDER COVER

92075-174

$4.78

92075G

DAMPER,FEMALE

92075-175

$4.39

110

BOLT-UPSET 6X14

112B0614

Unavailable

110A

BOLT-UPSET,6X16

112G0616

$1.10

110B

BOLT-UPSET

112G0625

$3.62

311

NUT 6MM

311B0600

$0.93

461

WASHER SPRING 6MM

461F0600

$0.69
