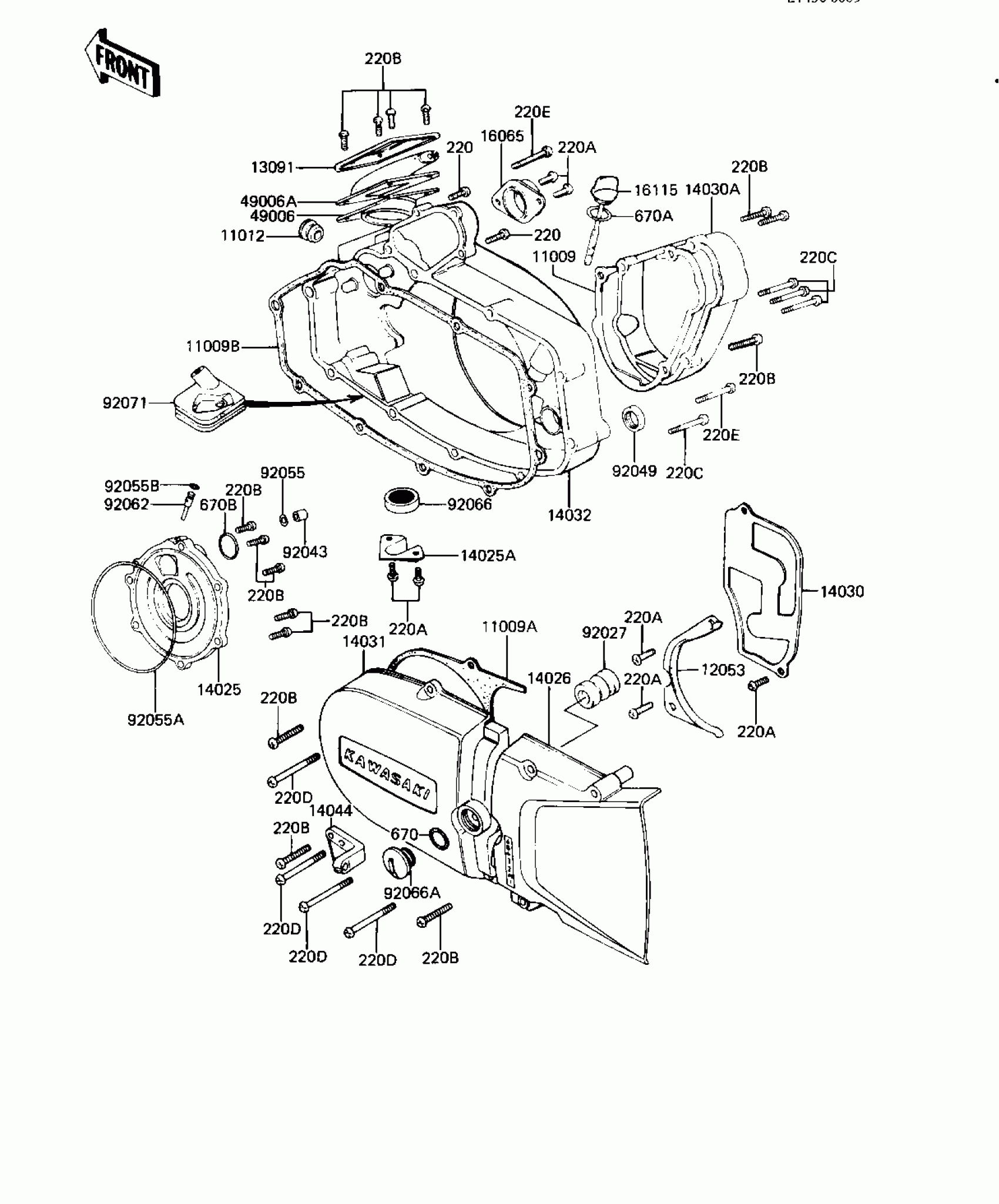

Kawasaki KE125 ENGINE COVERS ('82-'83 A9/A10) Diagram
#
11009
GASKET,CARBURETOR COV
11009-1277
Unavailable
11009A
GASKET,L.H ENG COVER
14045-017
Unavailable
11009B
GASKET,R.H ENG COVER
14046-029
Unavailable
11012
CAP,RUBBER
14039-001
$4.74
12053
GUIDE,CHAIN
14077-003
Unavailable
13091
HOLDER,CARBRETOR CAP
14065-007
$19.79
14025
COVER,ROTARY DISC
14019-055
Unavailable
14025A
COVER,FUEL DRAIN
14076-006
$8.56
14026
COVER,CHAIN
14026-1029
Unavailable
14030
COVER,OIL PUMP
14030-060
Unavailable
14030A
COVER,CARBURETOR
14030-1013
Unavailable
14031
COVER,MAGNETO,F.BLACK
14031-1053
Unavailable
14032
COVER,CLUTCH
14032-1035
Unavailable
14044
HOLDER,WIRE GUIDE
14044-012
Unavailable
16065
HOLDER,CARBURETOR
16065-033
Unavailable
16115
PLUG,OIL FILLER
16115-020
Unavailable
49006
CAP,CARBURETOR
14038-039
Unavailable
49006A
CAP,CARBURETOR
14038-040
Unavailable
92027
COLLAR
92027-207
Unavailable
92043
PIN,DOWEL,8X16
92042-017
$6.15
92049
SEAL-OIL,SB16244
92049-002
$8.86
92055
RING-O,7.8X3.5
92055-029
$4.39
92055A
"O" RING,VALVE COVER
92055-057
Unavailable
92055B
"O" RING
92055-080
Unavailable
92062
NOZZLE
92062-012
$13.75
92066
PLUG,25X12
16116-006
$15.74
92066A
PLUG,L.H ENG COVER
92067-017
Unavailable
92071
GROMMET,OVERFLOW
16136-009
Unavailable
220
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
220A
SCREW PAN HEAD 6X12
220B0612
Unavailable
220B
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
220C
SCREW PAN HEAD 6X30
220B0630
$3.41
220D
SCREW PAN HEAD 6X35
220B0635
$1.63
220E
SCREW PAN HEAD 6X45
220B0645
$1.71
670
O RING,16MM
670B2016
$1.36
670A
O RING,20MM
670B2020
$1.22
670B
"O" RING,28MM
670B3028
$3.89
